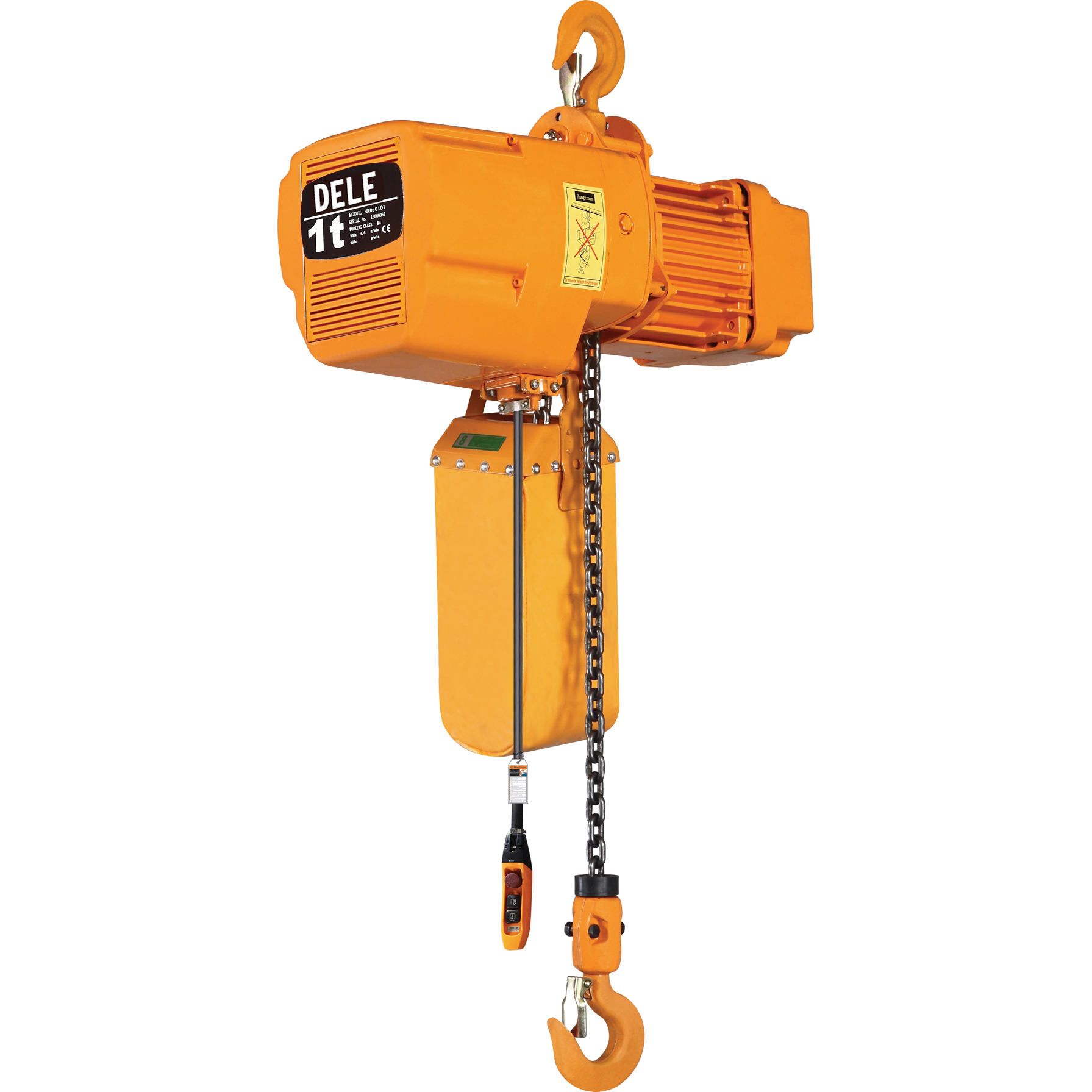

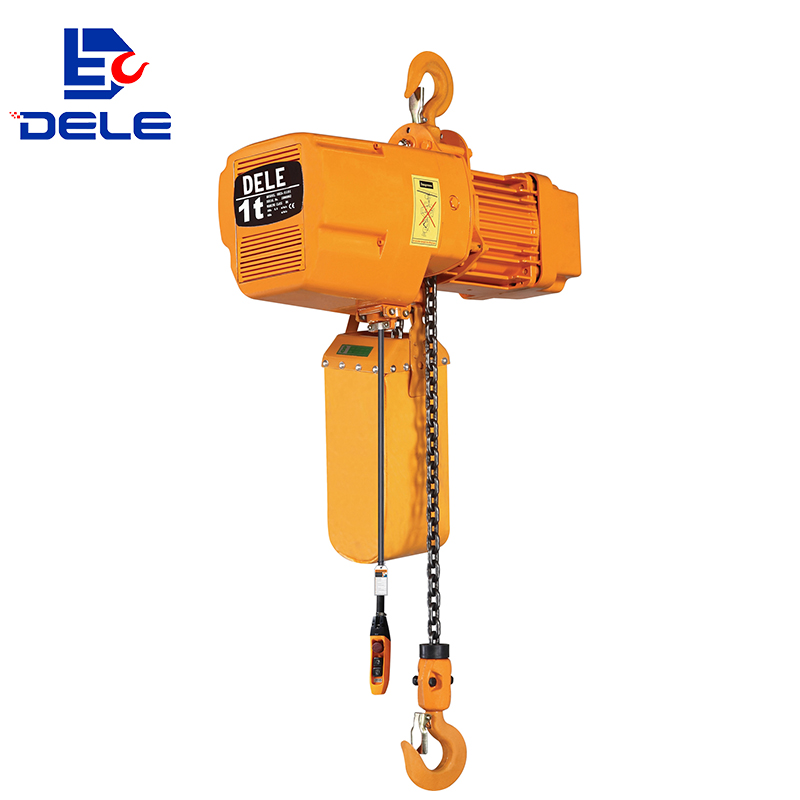

DLHD HOIST WITH HOOK
●Clutch: As emergency overload protection, clutch will functions and motor will slip when abnormal load.
●lnverse phase sequence protecting device: lt is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
●Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
●Side magnetic braking device:This device shall realize the instant brake in case of the power dump.
●Chain:Japan FEC80 chain ultra heat-treatable steel alloy chain. Lifting height is against your requirement.
●Emergency stop button: If any emergencies, press it, the motor circuit will be cut off.
●Control voltage:24V,36V,48V,110V are optional. Low control voltage help to prohibit the emergencies occuring in case of hand switch leakage.
●Wireless remote control, and overheat protector can be assembled.
| Technical Parameters | |||||||||||||||
| Model | Lifting weight (Ton) | Hoisting height (m) | Hoisting speed (m/min) | Lifting motor | Trolley Motor | ||||||||||
| Single speed | Double speed & frequency conversion | Power (Kw) | Single speed (r/min) | Double speed (r/min) | Number of phase | Voltage (V) | Frequency （Hz/s） | Power (Kw) | Single speed (r/min) | Double speed (r/min) | Running Single speed（r/min） | Running Double speed（r/min） | |||
| DLED-00501-2 | 0.5 | 3 | 6.8 | 6.8&1.7 | 0.75 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.4 | 1440 | 2880&720 | 11/21 | 5&20 |
| DLED-0101-2 | 1 | 3 | 6.6 | 6.6&1.65 | 1.5 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.4 | 1440 | 2880&720 | 11/21 | 5&20 |
| DLED-0102-2 | 1 | 3 | 3.4 | 3.4&0.85 | 0.75 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.4 | 1440 | 2880&720 | 11/21 | 5&20 |
| DLED-01501-2 | 1.5 | 3 | 8.8 | 8.8&2.2 | 3.0 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.4 | 1440 | 2880&720 | 11/21 | 5&20 |
| DLED-0201-2 | 2 | 3 | 6.6 | 6.6&1.65 | 3.0 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.4 | 1440 | 2880&720 | 11/21 | 5&20 |
| DLED-0202-2 | 2 | 3 | 3.3 | 3.3&0.82 | 1.5 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.4 | 1440 | 2880&720 | 11/21 | 5&20 |
| DLED-02501-2 | 2.5 | 3 | 5.4 | 5.4&1.35 | 3.0 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.75 | 1440 | 2880&720 | 11/21 | 5&20 |
| DLED-0301-2 | 3 | 3 | 5.4 | 5.4&1.35 | 3.0 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.75 | 1440 | 2880&720 | 11/21 | 5&20 |
| DLED-0302-2 | 3 | 3 | 4.4 | 4.4&1.1 | 3.0 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.75 | 1440 | 2880&720 | 11/21 | 5&20 |
| DLED-0303-2 | 3 | 3 | 2.2 | 2.2&0.55 | 1.5 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.75 | 1440 | 2880&720 | 11/21 | 5&20 |
| DLED-0502-2 | 5 | 3 | 2.7 | 2.7&0.67 | 3.0 | 1440 | 1440&360 | 3 | 200-600 | 50 | 0.75 | 1440 | 2880&720 | 11/21 | 5&20 |

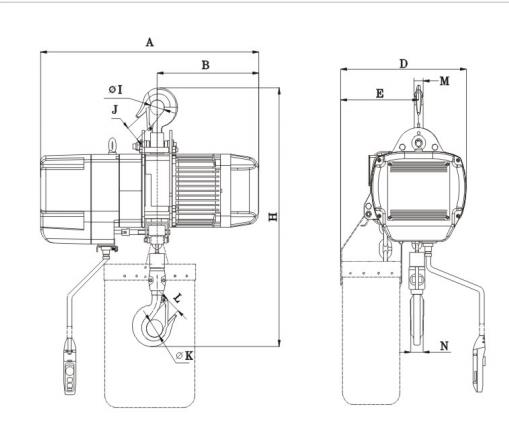

| Size specification table | ||||||||||||||||
| I beam track（mm） | Unit（mm） | Diameter x number of chains | ||||||||||||||
| H | A | B | D | E | I | K | L | N | W | U | R | T Single speed | T Double speed | |||
| 58-153 | 525 | 566 | 266 | 285 | 165 | Φ31 | Φ34 | 25 | 17 | 206 | 111 | 142 | 231 | 276 | Φ6.3*1 | |
| 58-153 | 520 | 627 | 302 | 300 | 176 | Φ31 | Φ41 | 32 | 24 | 206 | 111 | 142 | 231 | 276 | Φ7.1*1 | |
| 58-153 | 580 | 566 | 266 | 285 | 165 | Φ31 | Φ41 | 32 | 24 | 206 | 111 | 142 | 231 | 276 | Φ6.3*2 | |
| 58-153 | 610 | 733 | 343 | 430 | 265 | Φ36 | Φ49 | 40 | 28 | 237 | 127 | 142 | 231 | 276 | Φ10.0*1 | |
| 82-178 | 610 | 733 | 343 | 430 | 265 | Φ36 | Φ49 | 40 | 28 | 237 | 127 | 142 | 231 | 276 | Φ10.0*1 | |
| 82-178 | 685 | 627 | 302 | 300 | 236 | Φ36 | Φ49 | 40 | 28 | 237 | 127 | 142 | 231 | 276 | Φ7.1*2 | |
| 82-178 | 670 | 733 | 343 | 430 | 265 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 231 | 315 | Φ11.2*1 | |
| 100-178 | 670 | 733 | 343 | 430 | 265 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 231 | 315 | Φ11.2*1 | |
| 100-178 | 770 | 733 | 343 | 430 | 320 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 231 | 315 | Φ10.0*2 | |
| 100-178 | 810 | 627 | 302 | 350 | 205 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 231 | 315 | Φ7.1*3 | |
| 100-178 | 855 | 733 | 343 | 430 | 325 | Φ54 | Φ60 | 48 | 42 | 296 | 156 | 142 | 231 | 315 | Φ11.2*2 | |
