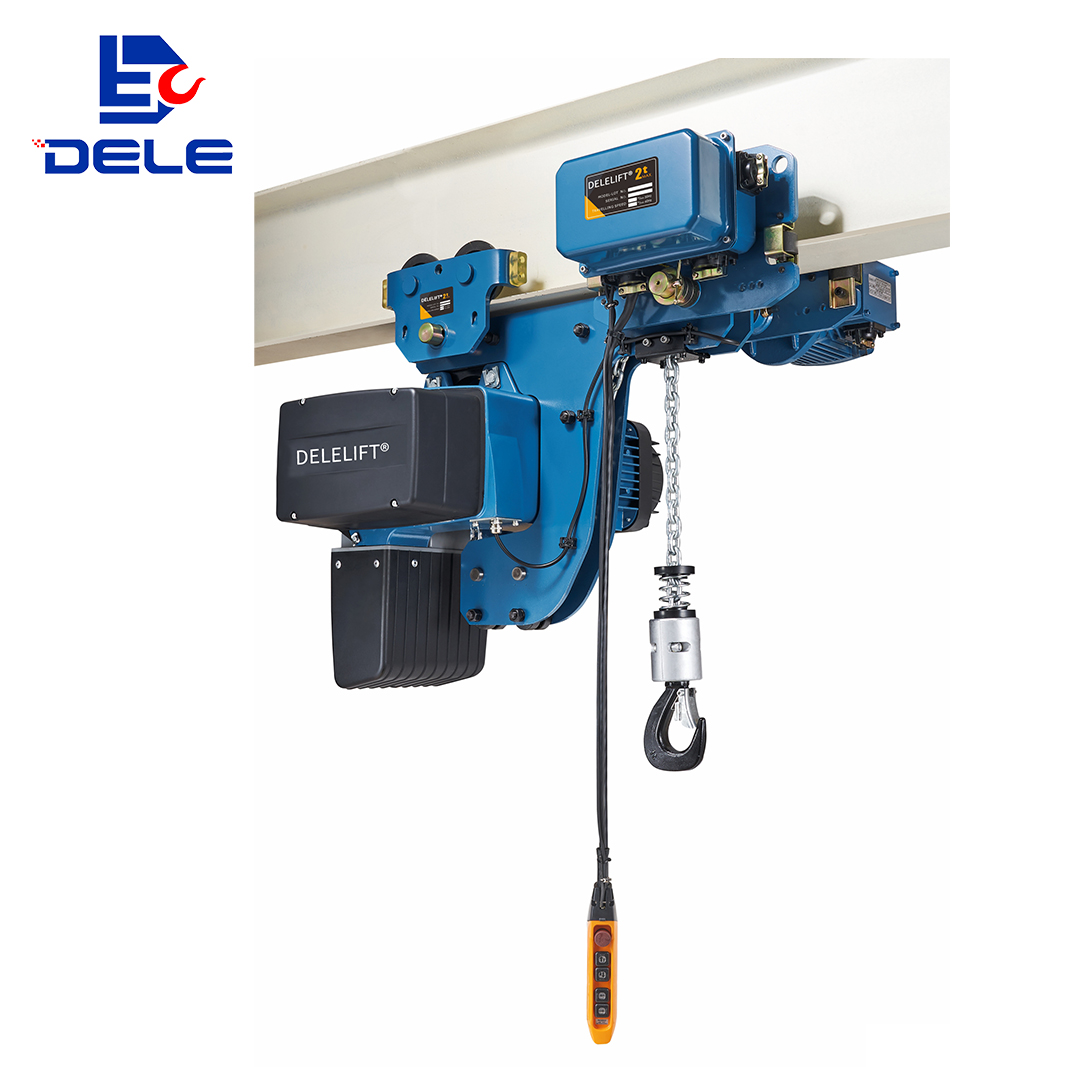

ELECTRIC CHAIN HOIST WITH LOW HEADROOM
●With high-performance motor,reducer and compact electronic control system, the optimized body can largest increase the height of the load on the ground in a limited space.
●F series hoist can be used alone or combined with monorail hanging, cantilever cranes, KBK, etc. Applied to the assembly of product assembly lines, single-station hanging,wind power equipment maintenance,etc.
●220-460V range optional input voltage and 36V standard security control voltage(optional 24/48V),bringing more option to users of various countries.
●For different application scenarios,F series hoist can be matched with various intelligence control system to meet the personalized needs of different users.
| Type | Capacity ( Ton) | Lifting height(m) | Lifting Speed (m/min) | Lifting Motor | Traveling Motor | I-Beam (mm) | ||||||
| Power (Kw) | Rotation speed(r/min) | Phases | Voltage (V) | Frequency (Hz) | Power (kW) | Rotation speed(r/min) | Traveling speed (r/min) | |||||
| DLDML0012501F | 0.125 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML002501F | 0.25 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML00301F | 0.3 | 3/9 | 13/3.2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML00501F | 0.5 | 3/9 | 8/2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML00502F | 0.5 | 3/9 | 4/1 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML00602F | 0.6 | 3/9 | 6.5/1.6 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML0102F | 1 | 3/9 | 4/1 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML0101F | 1 | 3/9 | 8/2 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 76-153 |
| DLDML0202F | 2 | 3/9 | 4/1 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 100-178 |

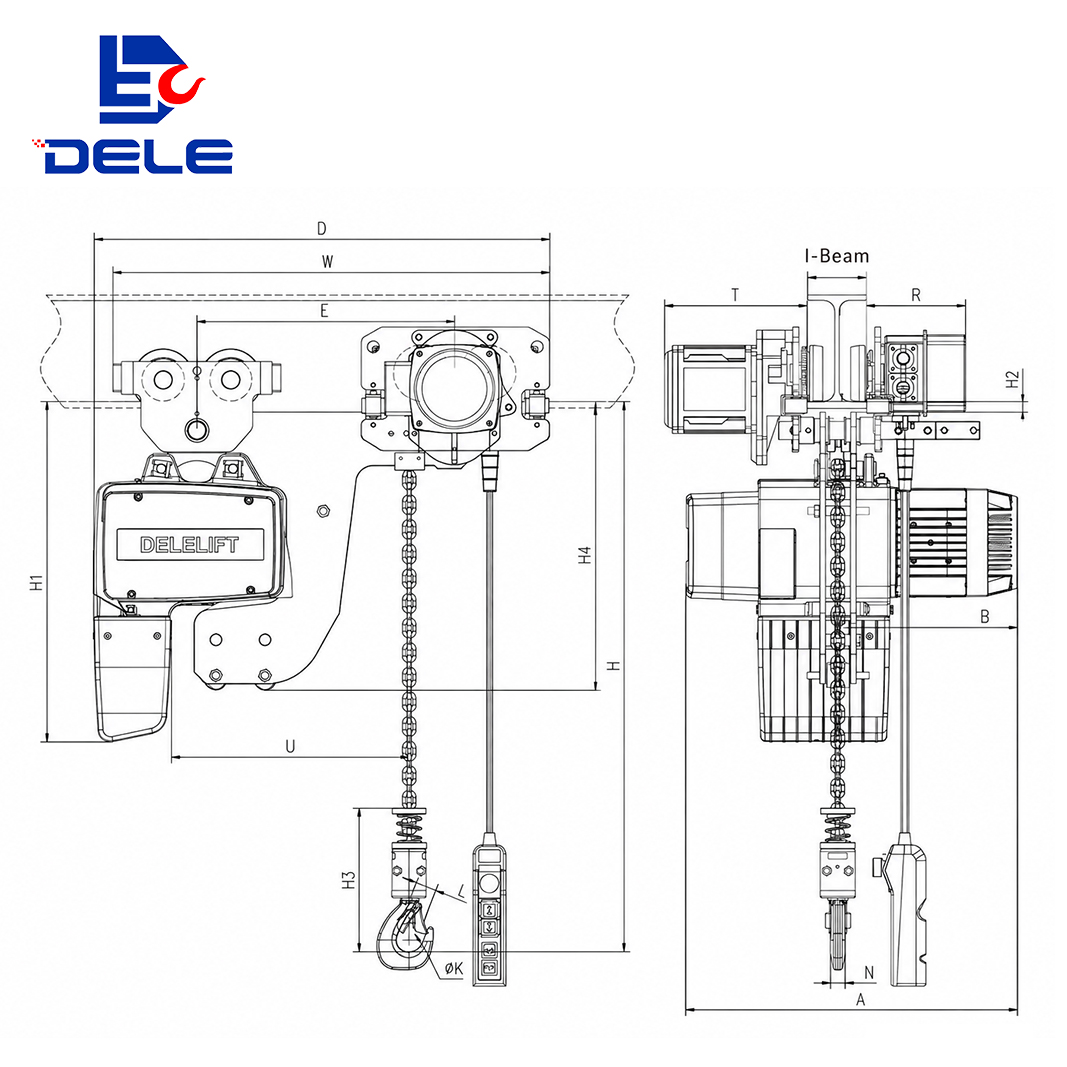

| Type | Capacity (Ton) | Unit(mm) | Chain Dia.x chain falls | ||||||||||||||||
| H | H1 | H2 | H3 | H4 | A | B | D | D1 | E | K | L | N | R | T | U | W | |||
| DLDML0012501F | 0.125 | 315 | 453 | 15 | 206 | 384 | 441 | 241 | 696 | Φ95 | 380 | Φ29 | 28 | 17 | 169 | 252 | 354 | 648 | Φ5.0×1 |
| DLDML002501F | 0.25 | 315 | 453 | 15 | 206 | 384 | 441 | 241 | 696 | Φ95 | 380 | Φ29 | 28 | 17 | 169 | 252 | 354 | 648 | Φ5.0×1 |
| DLDML00301F | 0.3 | 335 | 464 | 15 | 221 | 399 | 471 | 266 | 727 | Φ95 | 400 | Φ36 | 30 | 20 | 169 | 252 | 371 | 668 | Φ5.0×1 |
| DLDML00501F | 0.5 | 335 | 464 | 15 | 221 | 399 | 471 | 266 | 727 | Φ95 | 400 | Φ36 | 30 | 20 | 169 | 252 | 371 | 668 | Φ5.0×1 |
| DLDML00502F | 0.5 | 385 | 453 | 15 | 206 | 384 | 441 | 241 | 696 | Φ95 | 380 | Φ42 | 35 | 25 | 169 | 252 | 354 | 648 | Φ5.0×2 |
| DLDML00602F | 0.6 | 385 | 513 | 15 | 271 | 399 | 471 | 266 | 727 | Φ95 | 400 | Φ42 | 35 | 25 | 169 | 252 | 371 | 668 | Φ5.0×2 |
| DLDML0102F | 1 | 385 | 472 | 15 | 271 | 399 | 471 | 266 | 727 | Φ95 | 400 | Φ42 | 35 | 25 | 169 | 252 | 371 | 668 | Φ5.0×2 |
| DLDML0101F | 1 | 360 | 567 | 19 | 241 | 488 | 569 | 306 | 779 | Φ95 | 440 | Φ42 | 35 | 25 | 169 | 252 | 412 | 740 | Φ7.1×1 |
| DLDML0202F | 2 | 453 | 677 | 20 | 325 | 493 | 569 | 306 | 784 | Φ110 | 440 | Φ52 | 41 | 35 | 174 | 257 | 412 | 745 | Φ7.1×2 |
