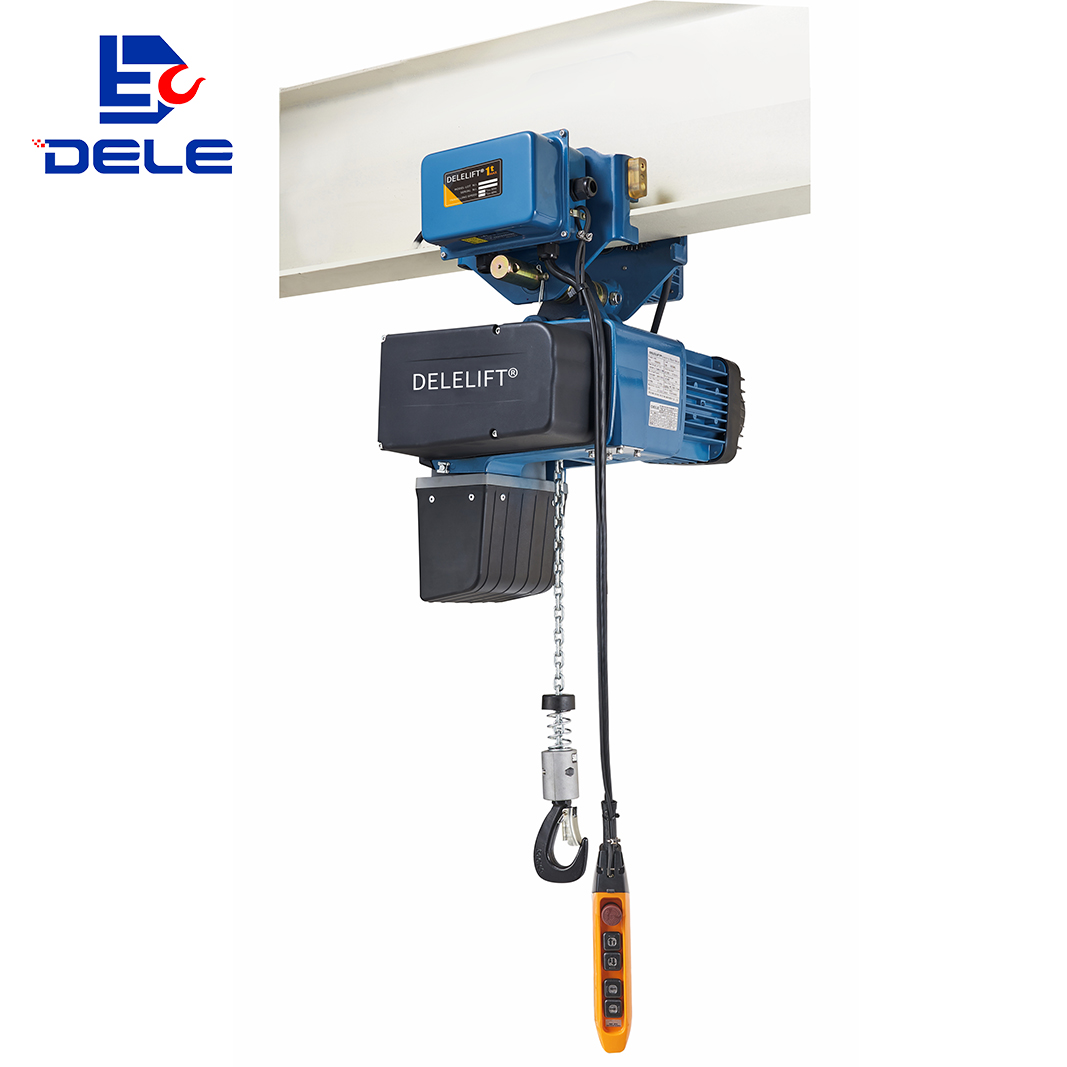

ELECTRIC CHAIN HOIST WITH ELECTRIC TROLLEY
●With high-performance motor,reducer and compact electronic control system, the optimized body can largest increase the height of the load on the ground in a limited space.
●F series hoist can be used alone or combined with monorail hanging, cantilever cranes, KBK, etc. Applied to the assembly of product assembly lines, single-station hanging,wind power equipment maintenance,etc.
●220-460V range optional input voltage and 36V standard security control voltage(optional 24/48V),bringing more option to users of various countries.
●For different application scenarios,F series hoist can be matched with various intelligence control system to meet the personalized needs of different users.
| Type | Capacity (Ton) | Lifting height (m) | Lifting speed (m/min) | Lifting Motor | Traveling Motor | Turn radius (mm) | I-Beam (mm) | ||||||
| Power (Kw) | Rotation speed(r/min) | Phases | Voltage (V) | Frequency (Hz) | Power (kW) | Rotation speed(r/min) | Traveling speed (r/min) | ||||||
| DLDME0012501F | 0.125 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 0.25 | 1440 | 20 | 1300 | 58-153 |
| DLDME 002501F | 0.25 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 0.25 | 1440 | 20 | 1300 | 58-153 |
| DLDME 00301F | 0.3 | 3/9 | 13/3.2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.25 | 1440 | 20 | 1300 | 58-153 |
| DLDME 00501F | 0.5 | 3/9 | 8/2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.25 | 1440 | 20 | 1300 | 58-153 |
| DLDME00502F | 0.5 | 3/9 | 4/1 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 0.25 | 1440 | 20 | 1300 | 58-153 |
| DLDME 00602F | 0.6 | 3/9 | 6.5/1.6 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.25 | 1440 | 20 | 1300 | 58-153 |
| DLDME0102F | 1 | 3/9 | 4/1 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 800 | 58-153 |
| DLDME0101F | 1 | 3/9 | 8/2 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 800 | 58-153 |
| DLDME0202F | 2 | 3/9 | 4/1 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 800 | 82-178 |

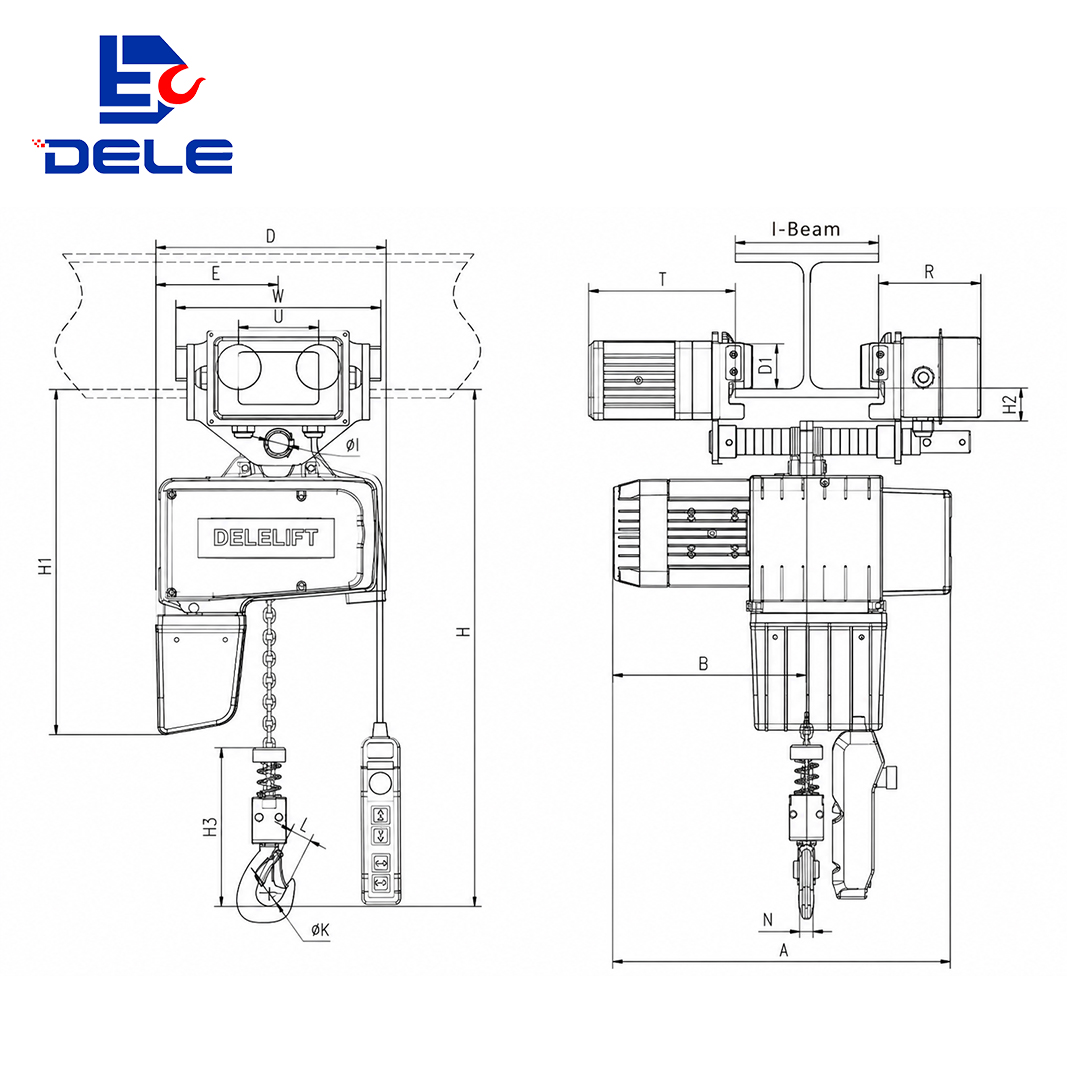

| Type | Capacity (Ton) | Unit(mm) | Chain Dia.x chain falls | ||||||||||||||||
| H | H1 | H2 | H3 | A | B | D | D1 | E | I | K | L | N | R | T | U | W | |||
| DLDME0012501F | 0.125 | 460 | 460 | 42 | 206 | 441 | 241 | 301 | Φ62 | 159 | Φ31 | Φ29 | 28 | 17 | 142 | 209 | 111 | 285 | Φ5.0×1 |
| DLDME002501F | 0.25 | 460 | 460 | 42 | 206 | 441 | 241 | 301 | Φ62 | 159 | Φ31 | Φ29 | 28 | 17 | 142 | 209 | 111 | 285 | Φ5.0×1 |
| DLDME00301F | 0.3 | 497 | 463 | 42 | 221 | 471 | 266 | 319 | Φ62 | 170 | Φ31 | Φ36 | 30 | 20 | 142 | 209 | 111 | 285 | Φ5.0×1 |
| DLDME00501F | 0.5 | 497 | 463 | 42 | 221 | 471 | 266 | 319 | Φ62 | 170 | Φ31 | Φ36 | 30 | 20 | 142 | 209 | 111 | 285 | Φ5.0×1 |
| DLDME00502F | 0.5 | 525 | 517 | 42 | 271 | 441 | 241 | 301 | Φ62 | 159 | Φ31 | Φ42 | 35 | 25 | 142 | 209 | 111 | 285 | Φ5.0×2 |
| DLDME00602F | 0.6 | 538 | 513 | 42 | 271 | 471 | 266 | 326 | Φ62 | 170 | Φ31 | Φ42 | 35 | 25 | 142 | 209 | 111 | 285 | Φ5.0×2 |
| DLDME0102F | 1 | 538 | 503 | 20 | 271 | 471 | 266 | 326 | Φ95 | 170 | Φ31 | Φ42 | 35 | 25 | 169 | 252 | 111 | 285 | Φ5.0×2 |
| DLDME0101F | 1 | 563 | 567 | 20 | 241 | 569 | 306 | 340 | Φ95 | 183 | Φ31 | Φ42 | 35 | 25 | 169 | 252 | 111 | 315 | Φ7.1×1 |
| DLDME0202F | 2 | 656 | 677 | 24 | 325 | 569 | 274 | 345 | Φ110 | 183 | Φ36 | Φ52 | 41 | 35 | 174 | 257 | 127 | 325 | Φ7.1×2 |
