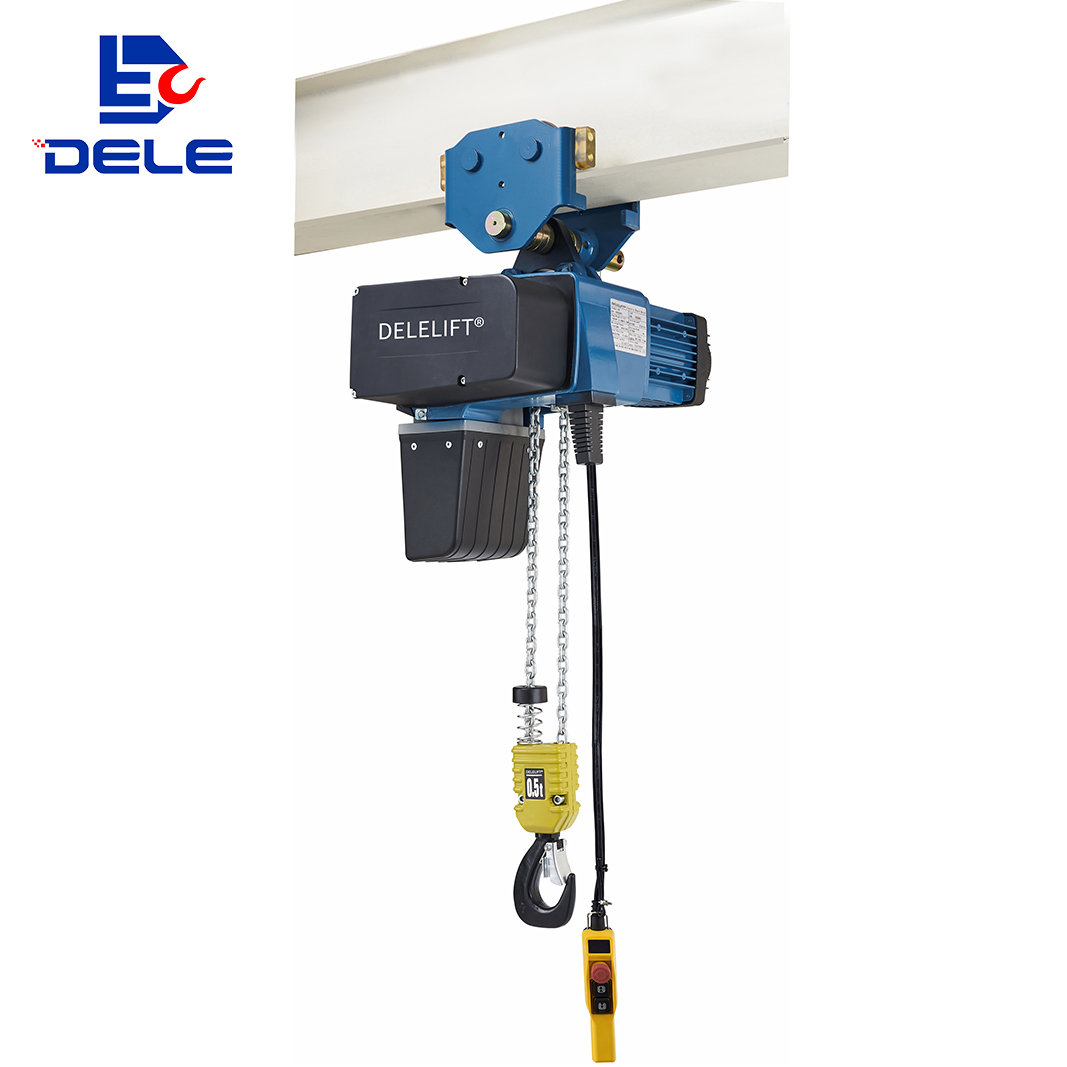

ELECTRIC CHAIN HOIST WITH MANUAL TROLLEY
●With high-performance motor,reducer and compact electronic control system, the optimized body can largest increase the height of the load on the ground in a limited space.
●F series hoist can be used alone or combined with monorail hanging, cantilever cranes, KBK, etc. Applied to the assembly of product assembly lines, single-station hanging,wind power equipment maintenance,etc.
●220-460V range optional input voltage and 36V standard security control voltage(optional 24/48V),bringing more option to users of various countries.
●For different application scenarios,F series hoist can be matched with various intelligence control system to meet the personalized needs of different users.
| Type | Capacity (Ton) | Lifting height(m) | Lifting speed (m/min) | Lifting Motor | Tum radius (mm) | I-Beam (mm) | ||||
| Power(kW) | Rotation speed(r/min) | Phases | Voltage (V) | Frequency (Hz) | ||||||
| DLDM0012501F | 0.125 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 1300 | 68-130 |
| DLDM002501F | 0.25 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 1300 | 68-130 |
| DLDM00301F | 0.3 | 3/9 | 13/3.2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 1300 | 68-130 |
| DLDM00501F | 0.5 | 3/9 | 8/2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 1300 | 68-130 |
| DLDM00502F | 0.5 | 3/9 | 4/1 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 1300 | 68-130 |
| DLDM00602F | 0.6 | 3/9 | 6.5/1.6 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 1300 | 68-130 |
| DLDM0102F | 1 | 3/9 | 4/1 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 1300 | 68-130 |
| DLDM0101F | 1 | 3/9 | 8/2 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 | 1300 | 68-130 |
| DLDM0202F | 2 | 3/9 | 4/1 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 | 1500 | 82-153 |

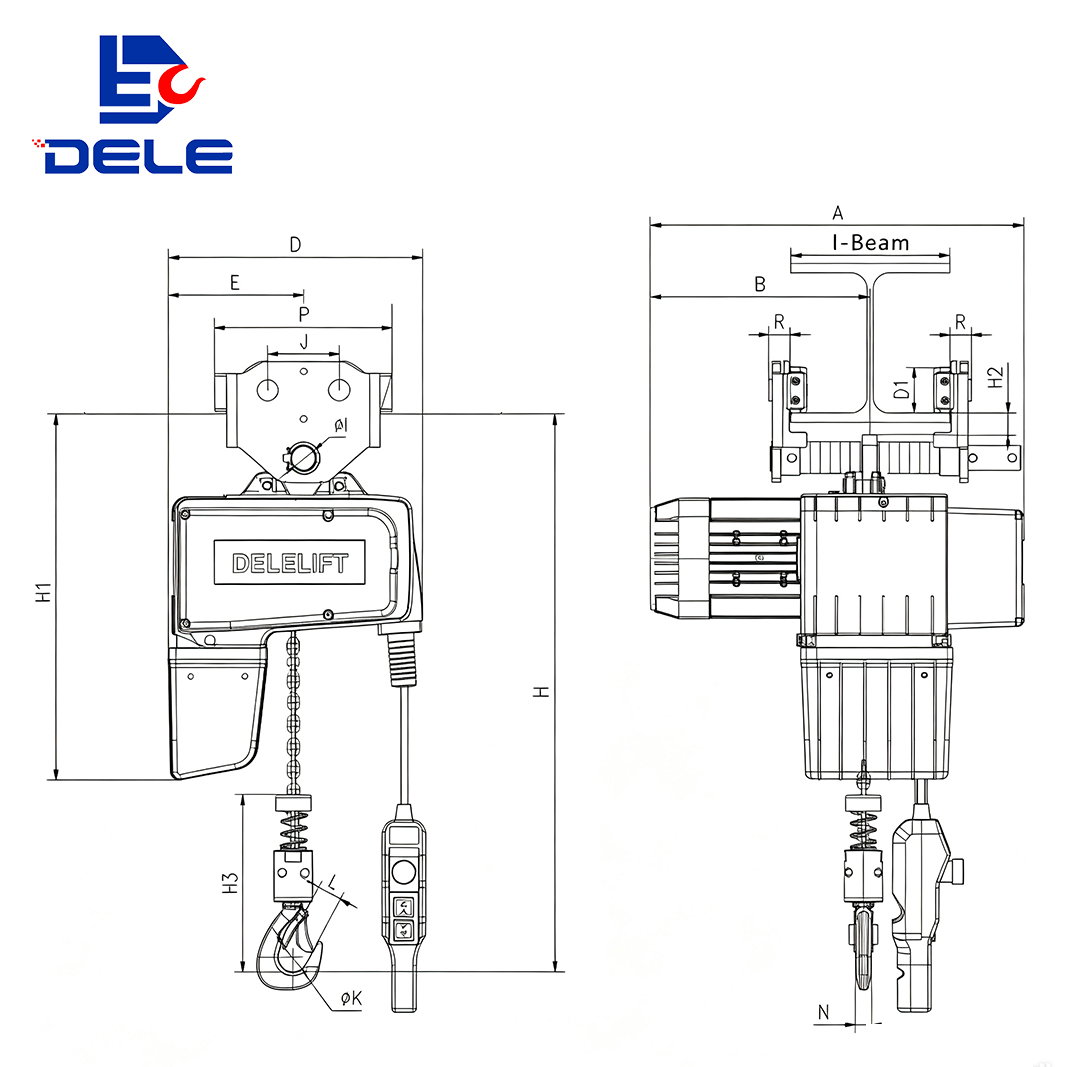

| Type | Capacity (Ton) | Unit(mm) | Chain Dia.x chain falls | |||||||||||||||
| H | H1 | H2 | H3 | A | B | D | D1 | E | J | K | L | N | P | R | ||||
| DLDM0012501F | 0.125 | 442 | 442 | 26 | 206 | 441 | 241 | 297 | 57 | 159 | Φ31 | 90 | Φ29 | 28 | 17 | 222 | 27 | Φ5.0×1 |
| DLDM002501F | 0.25 | 442 | 442 | 26 | 206 | 441 | 241 | 297 | 57 | 159 | Φ 31 | 90 | Φ29 | 28 | 17 | 222 | 27 | Φ5.0×1 |
| DLDM00301F | 0.3 | 481 | 464 | 26 | 221 | 471 | 266 | 319 | 57 | 170 | Φ31 | 90 | Φ36 | 30 | 20 | 222 | 27 | Φ5.0x1 |
| DLDM00501F | 0.5 | 481 | 464 | 26 | 221 | 471 | 266 | 319 | 57 | 170 | Φ31 | 90 | Φ36 | 30 | 20 | 222 | 27 | Φ5.0x1 |
| DLDM00502F | 0.5 | 507 | 498 | 26 | 271 | 441 | 241 | 297 | 57 | 159 | Φ31 | 90 | Φ42 | 35 | 25 | 222 | 27 | Φ5.0x2 |
| DLDM00602F | 0.6 | 531 | 502 | 26 | 271 | 471 | 266 | 319 | 57 | 170 | Φ31 | 90 | Φ42 | 35 | 25 | 222 | 27 | Φ5.0x2 |
| DLDM0102F | 1 | 538 | 502 | 20 | 271 | 471 | 266 | 319 | 72 | 170 | Φ31 | 115 | Φ42 | 35 | 25 | 287 | 32 | Φ5.0×2 |
| DLDM0101F | 1 | 550 | 567 | 20 | 271 | 569 | 306 | 340 | 72 | 183 | Φ31 | 115 | Φ42 | 35 | 25 | 287 | 32 | Φ7.1×1 |
| DLDM0202F | 2 | 656 | 673 | 22 | 325 | 569 | 274 | 350 | 85 | 183 | Φ36 | 138 | Φ52 | 41 | 35 | 341 | 35 | Φ7.1×2 |
