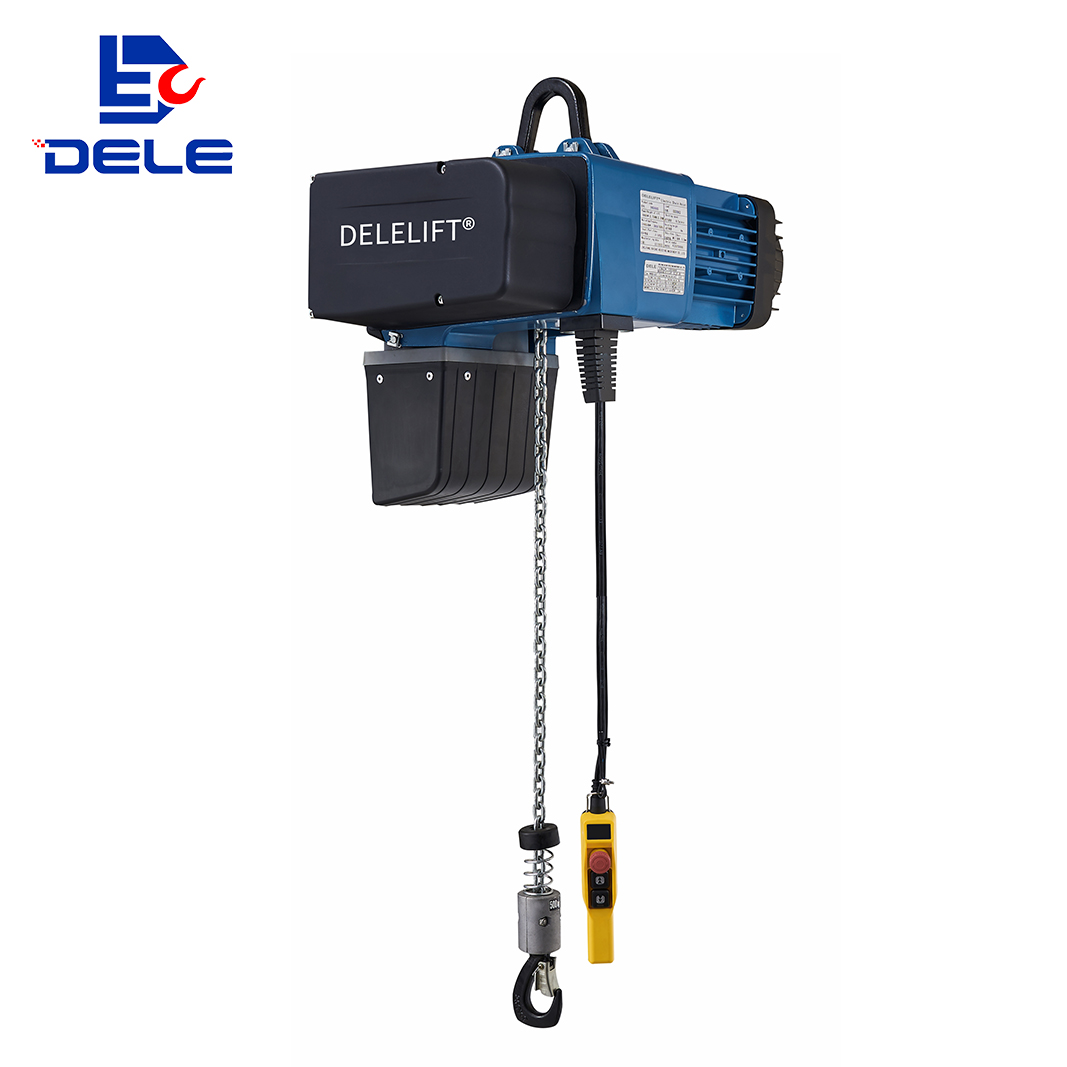

DLDMH FIXED TYPE ELECTRIC CHAIN HOIST
●With high-performance motor,reducer and compact electronic control system, the optimized body can largest increase the height of the load on the ground in a limited space.
●F series hoist can be used alone or combined with monorail hanging, cantilever cranes, KBK, etc. Applied to the assembly of product assembly lines, single-station hanging,wind power equipment maintenance,etc.
●220-460V range optional input voltage and 36V standard security control voltage(optional 24/48V),bringing more option to users of various countries.
●For different application scenarios,F series hoist can be matched with various intelligence control system to meet the personalized needs of different users.
| Type | Capacity (Ton) | Lifting height(m) | Lifting speed (m/min) | Lifting Motor | ||||
| Power(kW) | Rotation speed(r/min) | Phases | Voltage (V) | Frequency (Hz) | ||||
| DLDMH0012501F | 0.125 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH002501F | 0.25 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH00301F | 0.3 | 3/9 | 13/3.2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH00501F | 0.5 | 3/9 | 8/2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH00502F | 0.5 | 3/9 | 4/1 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH00602F | 0.6 | 3/9 | 6.5/1.6 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH0102F | 1 | 3/9 | 4/1 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH0101F | 1 | 3/9 | 8/2 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH0202F | 2 | 3/9 | 4/1 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 |
| Type | Capacity (Ton) | Unit(mm) | Chain Dia.x chain falls | |||||||||||
| H | H1 | A | B | D | D1 | E | I | K | L | M | N | |||
| DLDMH0012501F | 0.125 | 417 | 417 | 441 | 241 | 297 | 18 | 159 | Φ46 | Φ29 | 28 | 18.6 | 17 | Φ5.0x1 |
| DLDMH002501F | 0.25 | 417 | 417 | 441 | 241 | 297 | 18 | 159 | Φ46 | Φ29 | 28 | 18.6 | 17 | Φ5.0x1 |
| DLDMH00301F | 0.3 | 454 | 424 | 471 | 266 | 318 | 18 | 170 | Φ46 | Φ36 | 30 | 18.6 | 20 | Φ5.0x1 |
| DLDMH00501F | 0.5 | 454 | 432 | 471 | 266 | 318 | 18 | 170 | Φ46 | Φ36 | 30 | 18.6 | 20 | Φ5.0x1 |
| DLDMH00502F | 0.5 | 482 | 474 | 441 | 241 | 297 | 18 | 159 | Φ46 | Φ42 | 35 | 18.6 | 25 | Φ5.0x2 |
| DLDMH00602F | 0.6 | 505 | 481 | 471 | 266 | 318 | 18 | 170 | Φ46 | Φ42 | 35 | 18.6 | 25 | Φ5.0×2 |
| DLDMH0102F | 1 | 505 | 481 | 471 | 266 | 318 | 18 | 170 | Φ46 | Φ42 | 35 | 18.6 | 25 | Φ5.0x2 |
| DLDMH0101F | 1 | 542 | 547 | 569 | 308 | 348 | 27 | 183 | Φ60 | Φ42 | 35 | 24 | 25 | Φ7.1x1 |
| DLDMH0202F | 2 | 626 | 645 | 569 | 275 | 348 | 27 | 183 | Φ60 | Φ52 | 41 | 24 | 35 | Φ7.1×2 |
