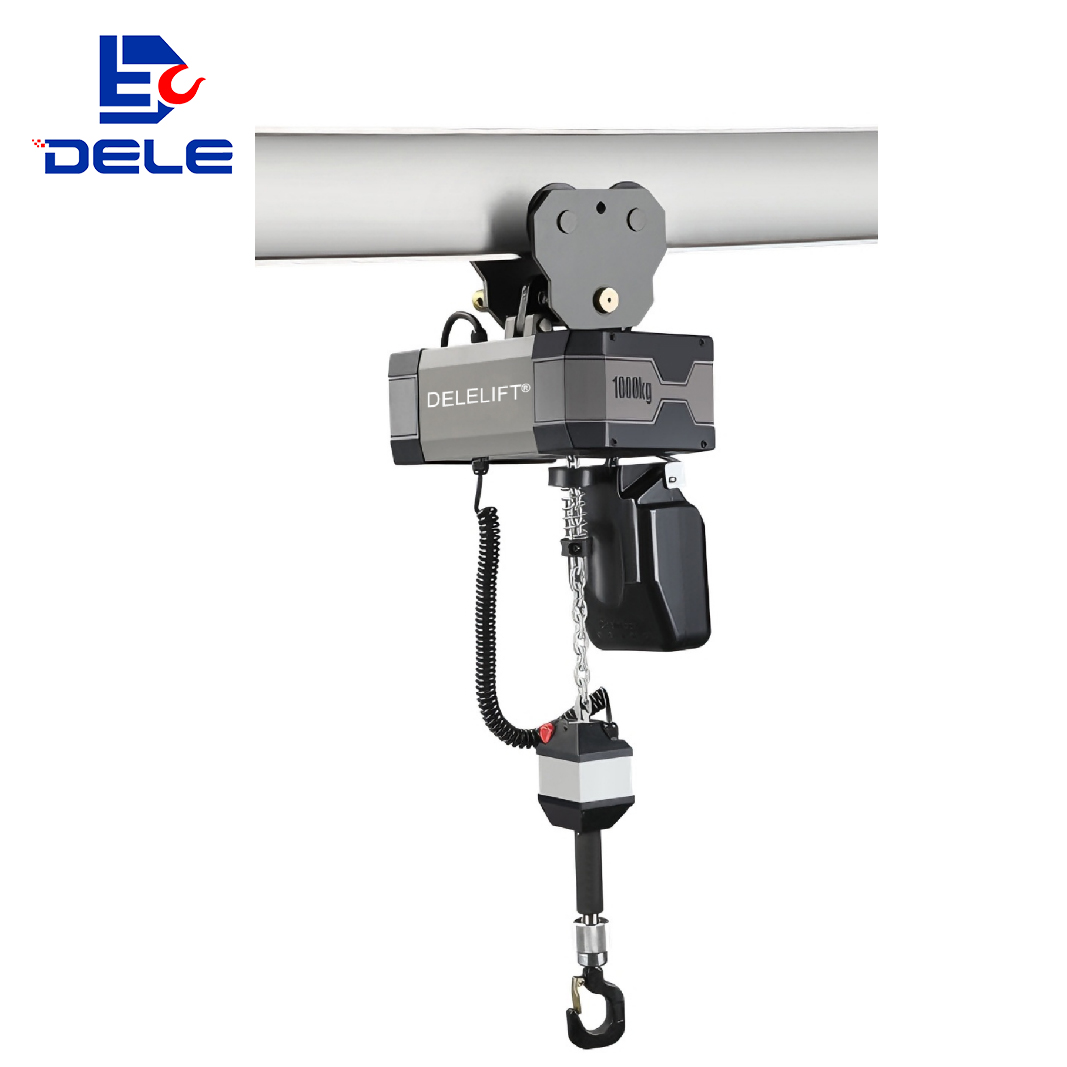

DLNDPM HANDHELD CONTROL ELECTRIC CHAIN HOIST
●Chain hoists may be employed independently or integrated with monorail cranes, jib cranes and similar equipment for diverse applications including assembly line operations, single-station lifting tasks, and wind turbine maintenance.
●The optimised body of the chain hoist, when paired with a high-performance motor, gear reducer and compact electronic control system, maximises the lifting height of loads within confined spaces.
●The chain hoist ingeniously combines a robust body with a flexible design, enabling swift sprocket replacement without dismantling the entire unit. Inspection of electrical components and brake operation is straightforward and efficient, significantly reducing maintenance time and costs
●Selectable input voltage range from 110V to 480V, coupled with a standard 36V safety control voltage (with optional 24V/48V configurations), offers greater flexibility for customers worldwide
| Model | Capacity (kg) | Lifting height (m) | Lifting speed (m/min) | Power (kW) | RPM (r/min) | Phases | Voltage (V) | Control voltage (V) | Rating | Travelling speed (m/min) | Travelling power (kw) |
| DLNDPM 10-04 | 10000 | 4 | 3.5 | 3.0*2 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLNDPM 15-06 | 15000 | 4 | 2.25 | 3.0*2 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLNDPM 20-08 | 20000 | 4 | 1.75 | 3.0*2 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLNDPM 25-10 | 25000 | 4 | 1.40 | 3.0*2 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| Model | H | A | B | D | E | W | U | T | R | J |
| DLNDPM 10-04 | 1010 | 520 | 260 | 1160 | 580 | 945 | 650 | 230 | 142 | Φ83 |
| DLNDPM 15-06 | 1130 | 520 | 260 | 1350 | 675 | 1135 | 840 | 230 | 142 | Φ106 |
| DLNDPM 20-08 | 1290 | 520 | 260 | 1540 | 770 | 1325 | 1030 | 230 | 142 | Φ118 |
| DLNDPM 25-10 | 1460 | 520 | 260 | 1730 | 865 | 1515 | 1220 | 230 | 142 | Φ142 |
