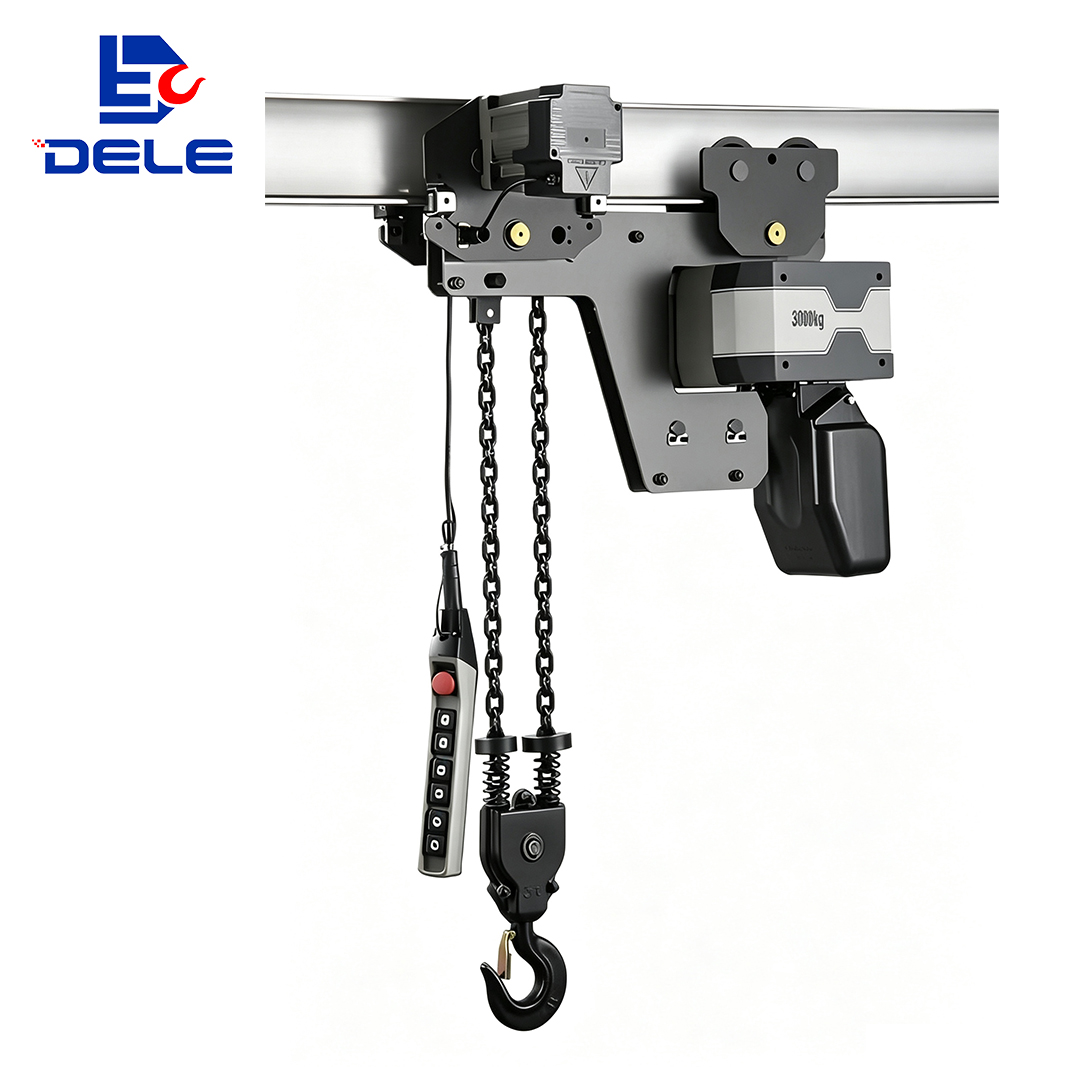

DLFP-N LOW HEADROOM ELECTRIC CHAIN HOIST
●Chain hoists may be employed independently or integrated with monorail cranes, jib cranes and similar equipment for diverse applications including assembly line operations, single-station lifting tasks, and wind turbine maintenance.
●The optimised body of the chain hoist, when paired with a high-performance motor, gear reducer and compact electronic control system, maximises the lifting height of loads within confined spaces.
●The chain hoist ingeniously combines a robust body with a flexible design, enabling swift sprocket replacement without dismantling the entire unit. Inspection of electrical components and brake operation is straightforward and efficient, significantly reducing maintenance time and costs
●Selectable input voltage range from 110V to 480V, coupled with a standard 36V safety control voltage (with optional 24V/48V configurations), offers greater flexibility for customers worldwide
| Model | Capacity (kg) | Lifting height (m) | Lifting speed (m/min) | Power (kW) | RPM (r/min) | Phases | Voltage (V) | Control voltage (V) | Rating | Travelling speed (m/min) | Travelling power (kw) |
| DLFP-N0.5-01 | 500 | 4 | 8 | 0.8 | 1480 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLFP-N01-01 | 1000 | 4 | 4 | 1.1 | 1480 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLFP-N01-02 | 1000 | 4 | 8 | 0.8 | 1480 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLFP-N02-01 | 2000 | 4 | 7 | 1.1 | 1480 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLFP-N02-02 | 2000 | 4 | 4 | 2.2 | 1480 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLFP-N03-01 | 3000 | 4 | 7 | 3.0 | 1480 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLFP-N03-02 | 3000 | 4 | 3.5 | 2.2 | 1480 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLFP-N05-02 | 5000 | 4 | 3.5 | 3.0 | 1480 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |

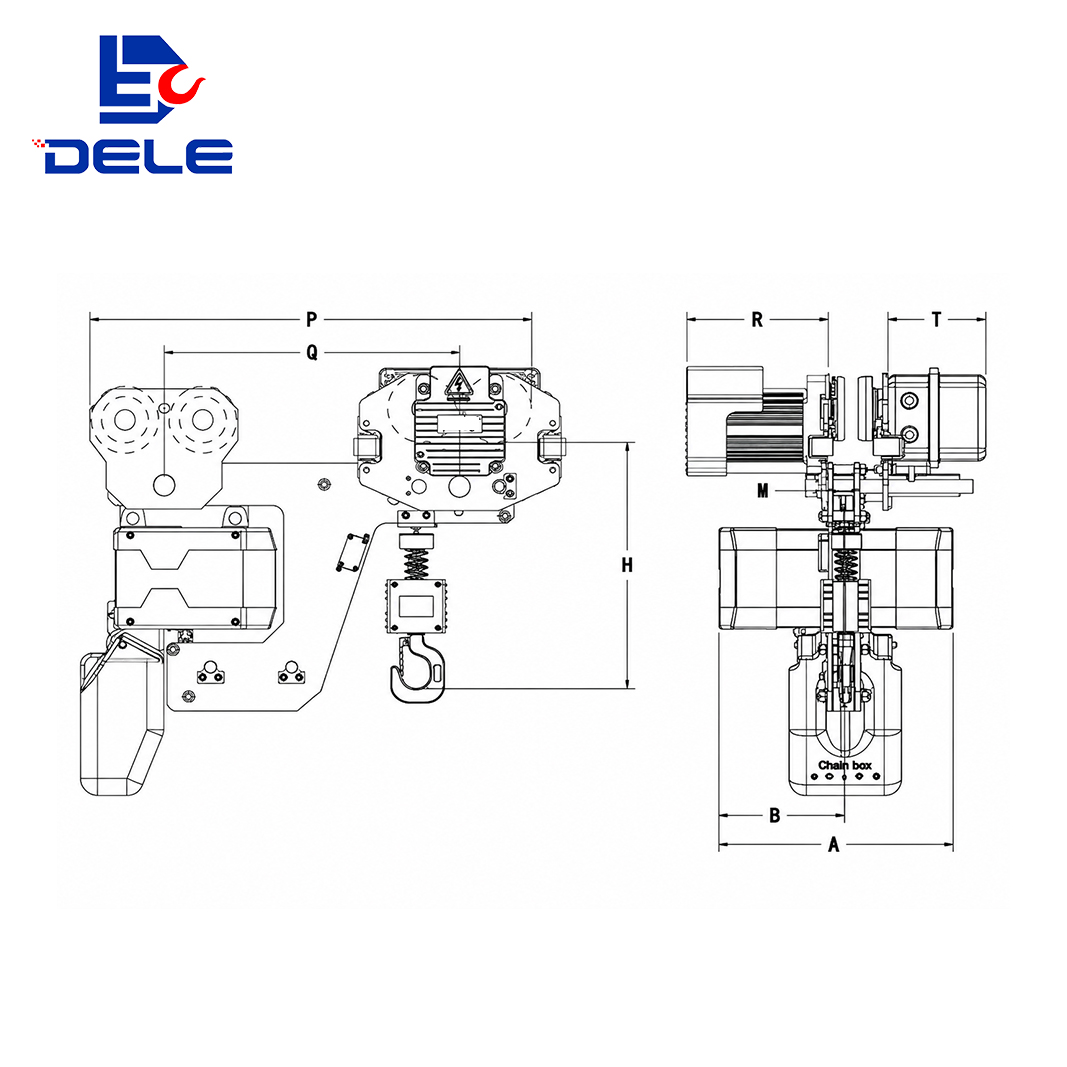

| Model | H | A | B | P | Q | T | R | M |
| DLFP-N0.5-01 | 365 | 375 | 218 | 645 | 438 | 210 | 142 | 50 |
| DLFP-N01-01 | 385 | 400 | 243 | 645 | 438 | 210 | 142 | 58 |
| DLFP-N 01-02 | 440 | 375 | 218 | 645 | 438 | 210 | 142 | 50 |
| DLFP-N02-01 | 485 | 490 | 258 | 730 | 505 | 230 | 142 | 64 |
| DLFP-N02-02 | 480 | 400 | 243 | 646 | 438 | 230 | 142 | 58 |
| DLFP-N03-01 | 530 | 490 | 258 | 785 | 526 | 230 | 142 | 72 |
| DLFP-N03-02 | 600 | 490 | 258 | 762 | 503 | 230 | 142 | 64 |
| DLFP-N05-02 | 635 | 490 | 258 | 835 | 514 | 230 | 142 | 72 |
