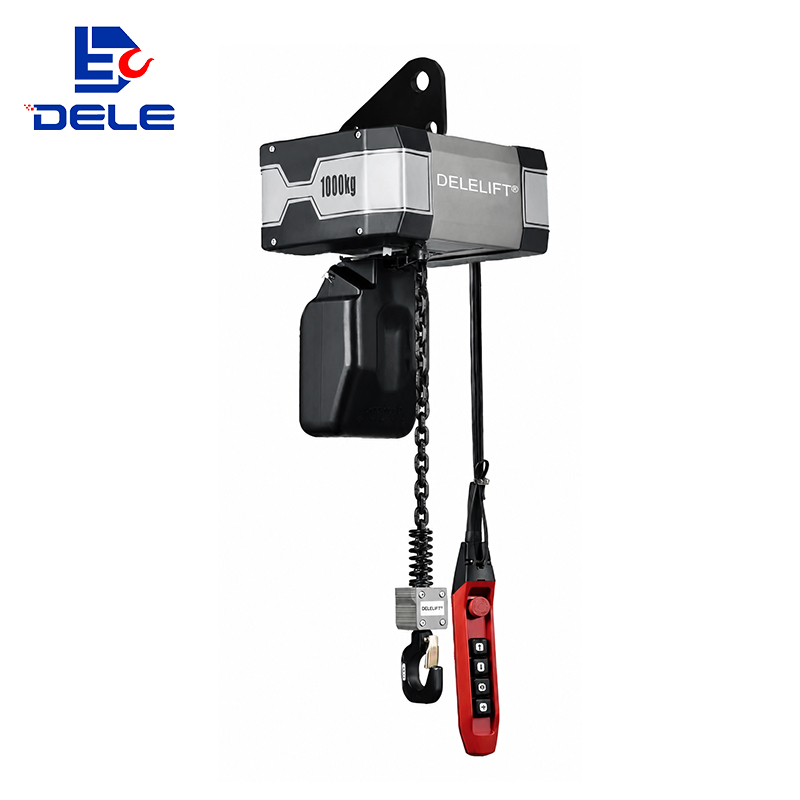

DLF ELECTRIC CHAIN HOIST WITH HOOK TYPE
●Chain hoists may be employed independently or integrated with monorail cranes, jib cranes and similar equipment for diverse applications including assembly line operations, single-station lifting tasks, and wind turbine maintenance.
●The optimised body of the chain hoist, when paired with a high-performance motor, gear reducer and compact electronic control system, maximises the lifting height of loads within confined spaces.
●The chain hoist ingeniously combines a robust body with a flexible design, enabling swift sprocket replacement without dismantling the entire unit. Inspection of electrical components and brake operation is straightforward and efficient, significantly reducing maintenance time and costs
●Selectable input voltage range from 110V to 480V, coupled with a standard 36V safety control voltage (with optional 24V/48V configurations), offers greater flexibility for customers worldwide
| Model | Capacity (kg) | Lifting height (m) | Lifting speed (m/min) | Power (kw) | RPM (r/min) | Phases | Voltage (V) | Control voltage (V) | Rating | Travelling speed (m/min) | Travelling power (kw) |
| DLF0.5-01 | 500 | 4 | 8 | 0.8 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLF01-01 | 1000 | 4 | 4 | 1.1 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLF01-02 | 1000 | 4 | 8 | 0.8 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLF02-01 | 2000 | 4 | 7 | 1.1 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLF02-02 | 2000 | 4 | 4 | 2.2 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLF03-01 | 3000 | 4 | 7 | 3.0 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLF03-02 | 3000 | 4 | 3.5 | 2.2 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |
| DLF05-02 | 5000 | 4 | 3.5 | 3.0 | 1440 | 3/2 | 110/480 | 24-48 | M5 | 11/21 | 0.75*2 |

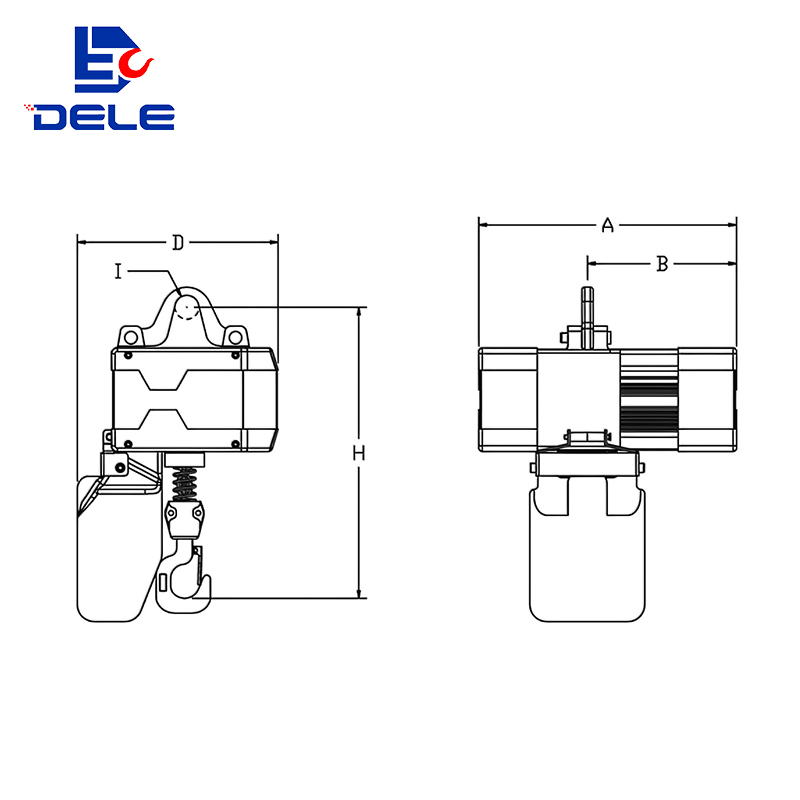

| Model | H | A | B | D | I |
| DLF0.5-01 | 420 | 375 | 218 | 275 | Φ31 |
| DLF01-01 | 440 | 400 | 243 | 290 | Φ31 |
| DLF01-02 | 510 | 375 | 218 | 275 | Φ31 |
| DLF02-01 | 575 | 490 | 258 | 425 | Φ36 |
| DLF02-02 | 560 | 400 | 243 | 290 | Φ36 |
| DLF03-01 | 625 | 490 | 258 | 425 | Φ43 |
| DLF03-02 | 680 | 490 | 258 | 425 | Φ43 |
| DLF05-02 | 735 | 490 | 258 | 425 | Φ54 |
