HAND PALLET TRUCK

PRODUCTS

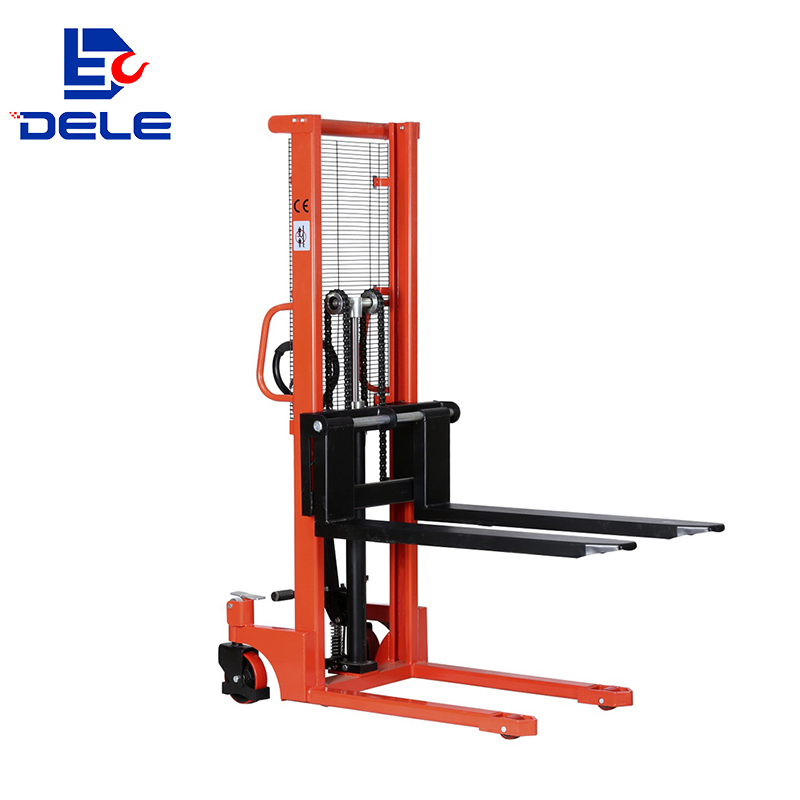

DLSYC-A MANUAL STACKER

●It applies C type steel structure design,Lifting more stable and safe.

●All manual stacker have been equipped with wheel frame protection device.

●The handle have been surround with rubber.With lengthening design.Using more comfortable.

●Single frame have two ways to unload by manual and pedal,using more flexible.

●Fork with adjustable nut ,it can easy to adjust the fork height.

●Wheel frame equipped with grease fitting design,it will help do routine maintenance for bearing.

●There are too many kinds of fork types,fixed fork,adjusting fork,also with the adjusting wide leg or fixed wide leg.

Single frame series

ModelUnitDLSYC0516-ADLSYC1016-ADLSYC1516-ADLSYC2016-A
Power supply
ManualManualManualManual
Unload type
HandHandHandHand
Rated Capacitykg500100015002000
Max. lifting heightmm1600160016001600
Lowered fork heightmm85858585
Fork lengthmm1000115011501150
Fork widthmm330-740330-740/550330-740/550330-740/550
Front wheelmmΦ80*58Φ80*58Φ80*58Φ80*58
Loaded wheelmmΦ180*50Φ180*50Φ180*50Φ180*50
Overall dimensionmm1600*760*20301600*760*20301600*760*20301600*760*2030
Leg widthmm690690690690
Net weightkg150224240270

Double-frame series

ModelUnitDLSYC1020/1520/2020-ADLSYC1025/1525-ADLSYC1030/1530-A
Power supply
ManualManualManual
Unload type
HandHandHand
Rated Capacitykg1000/1500/20001000/15001000/1500
Max. lifting heightmm200025003000
Lowered fork heightmm858585
Fork lengthmm115011501150
Fork widthmm330-740330-740330-740
Front wheelmmΦ80*58Φ80*58Φ80*58
Loaded wheelmmΦ180*50Φ180*50Φ180*50
Overall dimensionmm1600*760*15801600*760*18401600*760*2080
Leg widthmm690690690
Net weightkg290310330
