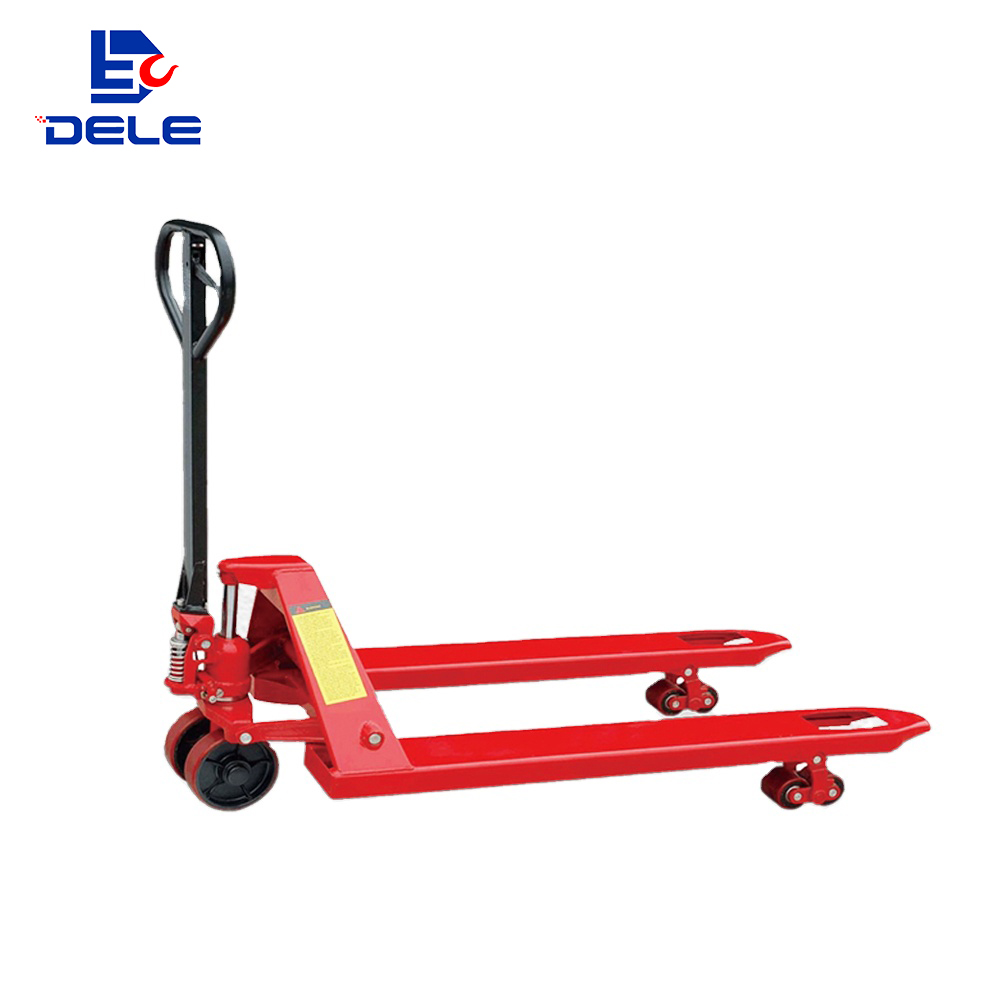

DLT/DNBJ HAND PALLET TRUCK

●Control part is installed at uppper position of the handle easy to be operated flexible control mechanism is reliable and safe.

●The high quality welded steel construction increases durability.

●Welding pump, oil return device and safety relief valve.

●optional wheels: nylon wheels, polyurethane wheels.

●Special requirements can be negotiated to meet.

●Factory reserves the right to modify the material and technical parameters， please confirm before order.

DLT HAND PALLET TRUCK

Manufacturer	Unit	Heami Machinery
Model		DLT
Drive		Manual
Load capacity	Q kg	2000/2500
Load centre distance	C mm	478	536
Wheelbase	L0 mm	1202	1252
Net weight	kg	50-60
Steer wheel	mm	∅160*50
Load wheel	mm	∅70*60
Wheels, number steer/load		2/4
Tread width, steer	L1 mm	128
Tread width, load	L2 mm	400	535
Lift	h mm	110
Height of tiller in drive position	h14 mm	1072
Height raised	h3 mm	185
Height lowered	h13 mm	75
Overall length	L3 mm	1529	1579
Width across forks	b5 mm	550	685
Fork dimensions	s/e/l mm	47/150/1150	47/150/1200
Turning radius	Wa mm	1322	1372

DNBJ HAND PALLET TRUCK

Manufacturer	Unit	Heami Machinery
Model		DNBJ
Drive		Manual
Load capacity	Q kg	2500/3000
Load centre distance	C mm	494	529
Wheelbase	L0 mm	1239	1309
Net weight	kg	75-85
Steer wheel	mm	∅16050 or ∅16070
Load wheel	mm	∅6376 or ∅63100
Wheels, number steer/load		2/4 or 2/2
Tread width, steer	L1 mm	128
Tread width, load	L2 mm	400	535
Lift	h mm	115
Height of tiller in drive position	h14 mm	1155
Height raised	h3 mm	178
Height lowered	h13 mm	68
Overall length	L3 mm	1516	1586
Width across forks	b5 mm	550	685
Fork dimensions	s/e/l mm	49/150/1150	49/150/1220
Turning radius	Wa mm	1345	1414
