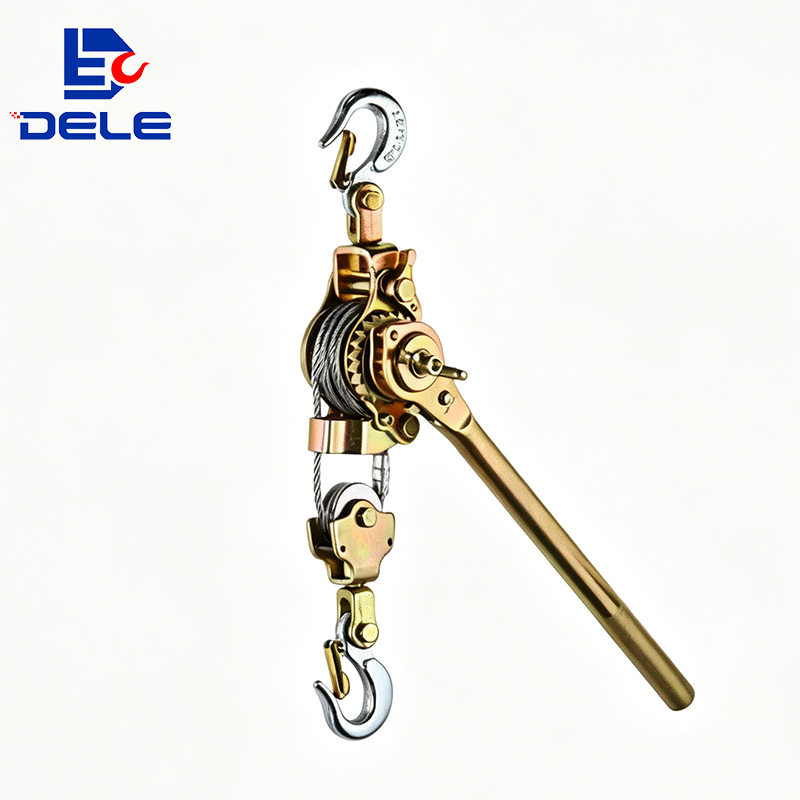

DL RATCHET PULLER
Features :
●Small size, light weight, and convenient to carry and storage. Even in a cramped space, it's still operating properly.
● Made by high quality's Taiwan galvanize wire rope and aluminum alloy pressure head. The wires are strong, wearable, and not fall off.
● It is made by high tensile steel, then matching with the high density gear, which can rotate 360 degrees direction. The controlling key can forward or backward turn.
●It is attached automatic braking device to save effort. It is suitable for electric power, telecom high homework. It is powerful and not easy to break.
● High tensile steel hook with latch, the strength gets greatly improved.
● Material : High Tensile Carbon Steel.
● Constructions : Quenched and Tempered
●Finish：Color Zinc Plated.
Technical Parameters
| Model | Rated capacity (t) | Max Working Load(kg) | Rope/Cable Size | Net Weight(kg) |
| DL-1000 | 1 | 400 | φ5mmx2.8m | 3.30 |
| DL-1500 | 1.5 | 600 | φ6mmx2.8m | 4.50 |
| DL-2000 | 2 | 850 | φ6mmx2.8m | 4.50 |
| DL-3000 | 3 | 1250 | φ7mmx2.8m | 5.50 |
| DL-4000 | 4 | 1500 | φ7mmx2.8m | 6.52 |
