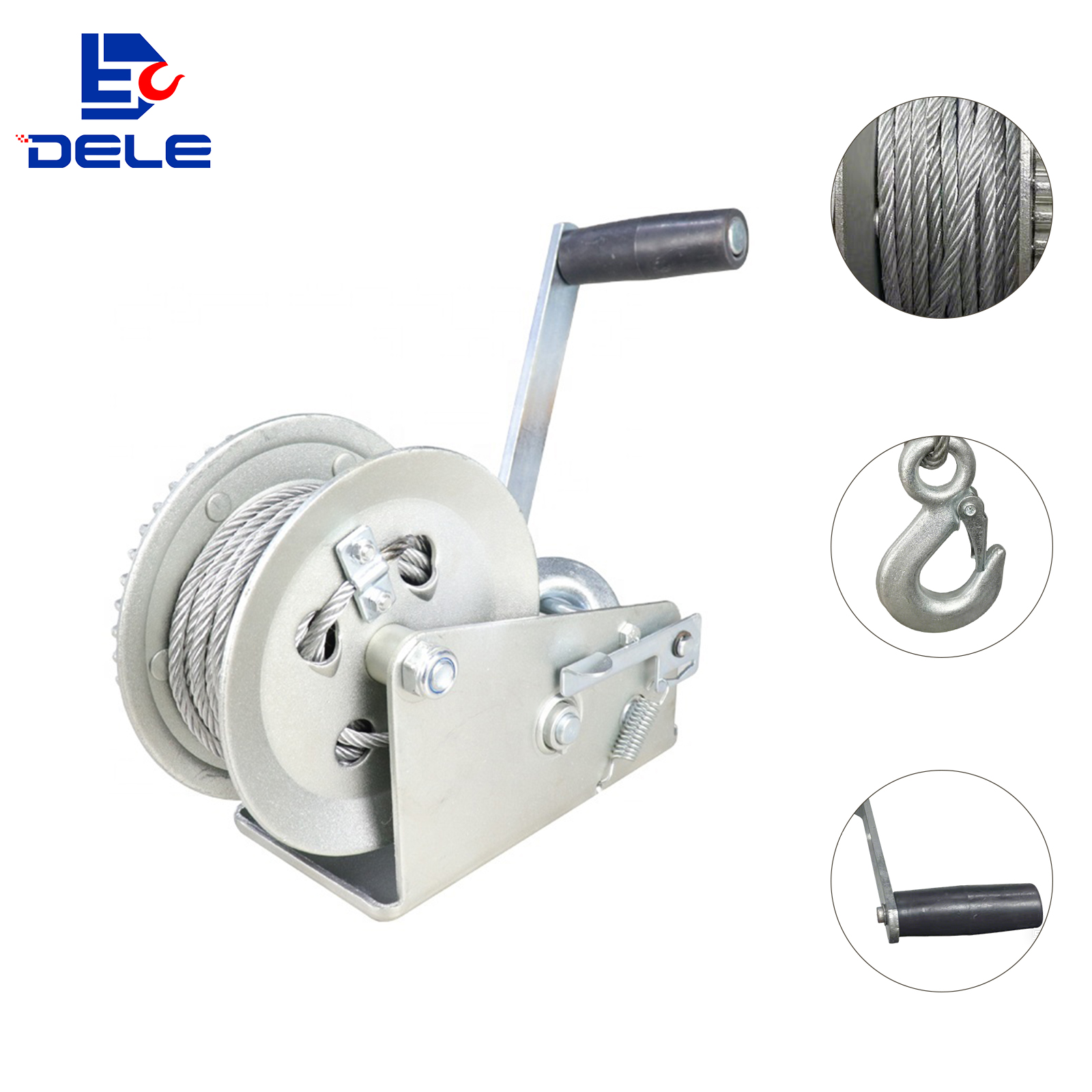

DL-W HAND WINCH WIRE ROPE
●Accurate
●Steel Stamping
●Edge Polish
●Heat Treatment
●Anti-Corrosion Treatment
| Model | Rated capacity (LBS) | B/S (kg) | Cable | Gear Ratio | Way/Speed | Net Weight(kg) |
| DL-W6 | 272 | 408 | φ4mmx8m | 3.2:1 | 1 way or 2 way | 2.5 |
| DL-W8 | 362 | 544 | φ4mmx8m | 3.2:1 | 1 way or 2 way | 2.5 |
| DL-W10 | 454 | 675 | φ4mmx10m | 4.1:1 | 2 way/1 speed | 3.67 |
| DL-W12 | 544 | 825 | φ4mmx10m | 4.1:1 | 2 way/1 speed | 3.67 |
| DL-W14 | 640 | 900 | φ5mmx10m | 4：1 | 2 way/1 speed | 4.3 |
| DL-W16 | 700 | 1080 | φ5mmx10m | 4：1 | 2 way/1 speed | 4.3 |
| DL-W18 | 800 | 1200 | φ5mmx10m | 4:1/8:1 | 2 way/2 speed | 5.2 |
| DL-W20 | 900 | 1350 | φ5mmx10m | 4:1/8:1 | 2 way/2 speed | 5.3 |
| DL-W25 | 1100 | 1650 | φ5mmx10m | 4:1/8:1 | 2 way/2 speed | 5.3 |
| DL-W30 | 1360 | 2040 | φ6mmx10m | 4.4:1/9.3:1 | 2 way/2 speed | 8.7 |
| DL-W32 | 1455 | 2180 | φ6mmx10m | 4.4:1/9.3:1 | 2 way/2 speed | 8.7 |
| DL-W35 | 1590 | 2385 | φ6mmx10m | 4.4:1/9.3:1 | 2 way/2 speed | 8.7 |
