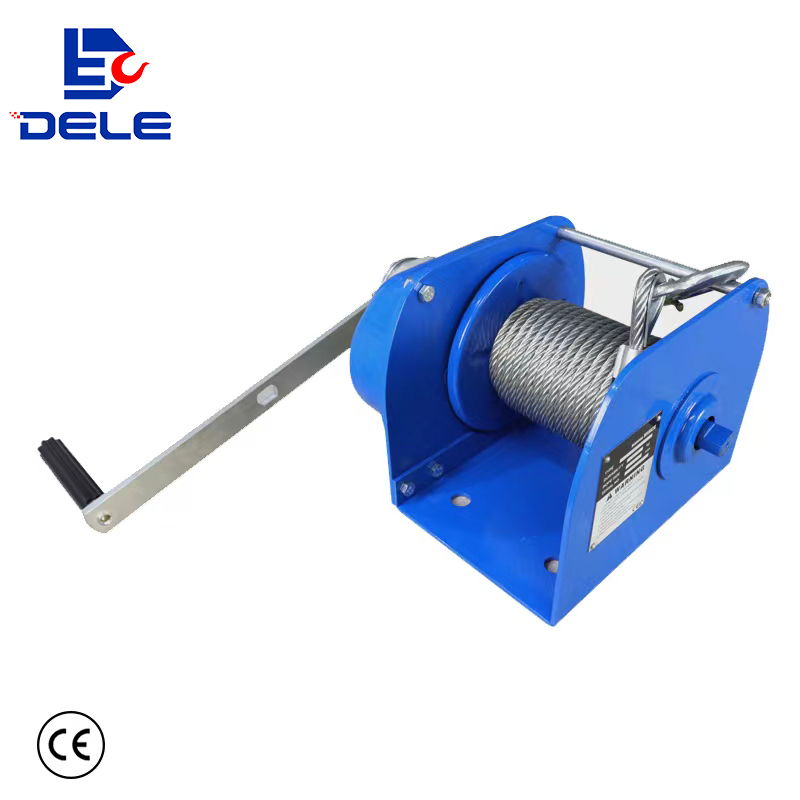

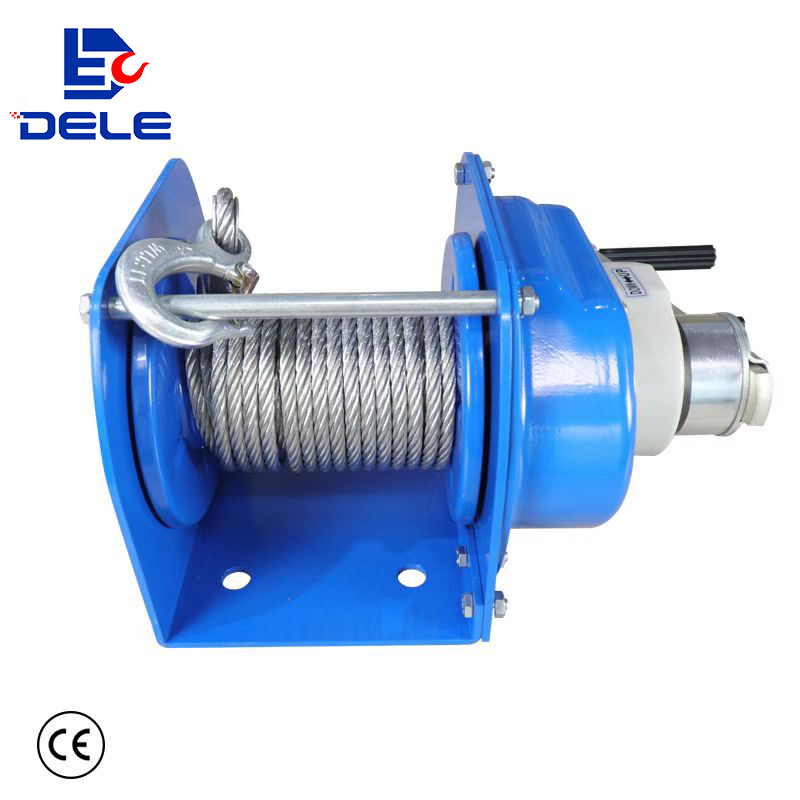

DL-VW MANUAL HEAVY DUTY WINCH
| Model | DL-VW-0.5t | DL-VW-1t | DL-VW-2t | DL-VW-3t | |
| Rated capacity | (t) | 0.5 | 1 | 2 | 3 |
| Test Load | (KN) | 6.125 | 12.25 | 24.5 | 36.75 |
| Cable dia.(mm)x L. | (m) | Φ6.3X40 | Φ8X40 | Φ9x40 | Φ12.5X40 |
| Speed ratio | 4.33:1 | 12.19:1 | 22.68:1 | 29.16:1 | |
| The max,handle length | （mm） | 350 | 350 | 350 | 350 |
| Hang pressure load | （N） | 120 | 120 | 120 | 120 |
| Net weight Kg | 14.4 | 19.7 | 25.1 | 44.3 | |

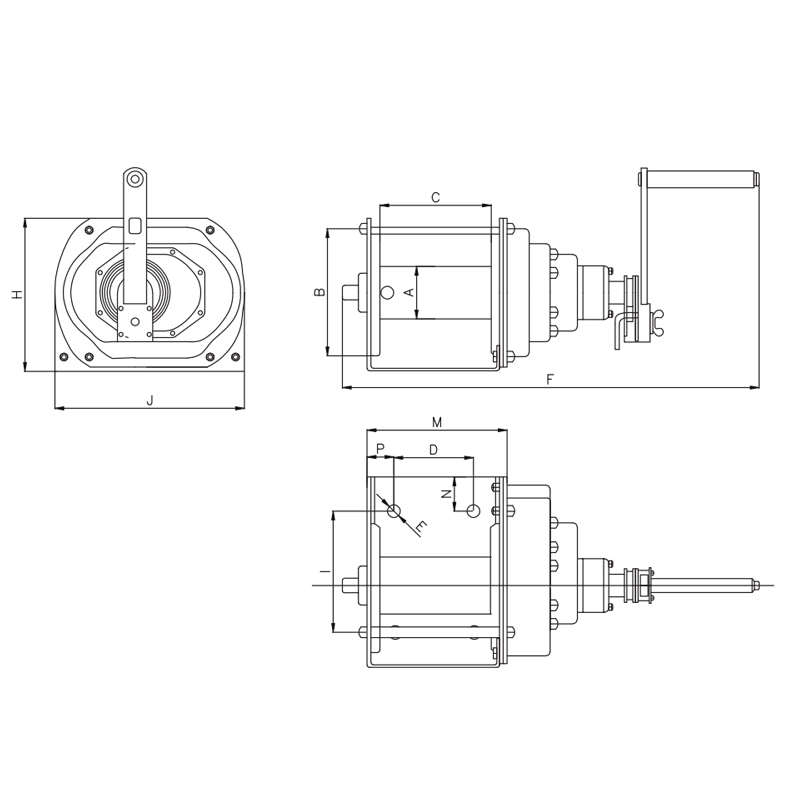

| Overall dimension mm | A | Φ60 | Φ76 | Φ90 | Φ100 |
| B | Φ140 | Φ175 | Φ190 | Φ230 | |
| C | 150 | 154 | 195 | 205 | |
| D | 100 | 110 | 155 | 155 | |
| E | Φ15 | Φ18 | Φ18 | Φ18 | |
| F | 403 | 443 | 490 | 549 | |
| H | 182 | 214 | 230 | 296 | |
| I | 130 | 170 | 170 | 170 | |
| J | 245 | 266 | 300 | 365 | |
| M | 178 | 191 | 302 | 356 | |
| N | 57.5 | 48 | 44 | 77 | |
| P | 39 | 38.5 | 43 | 68.5 | |
