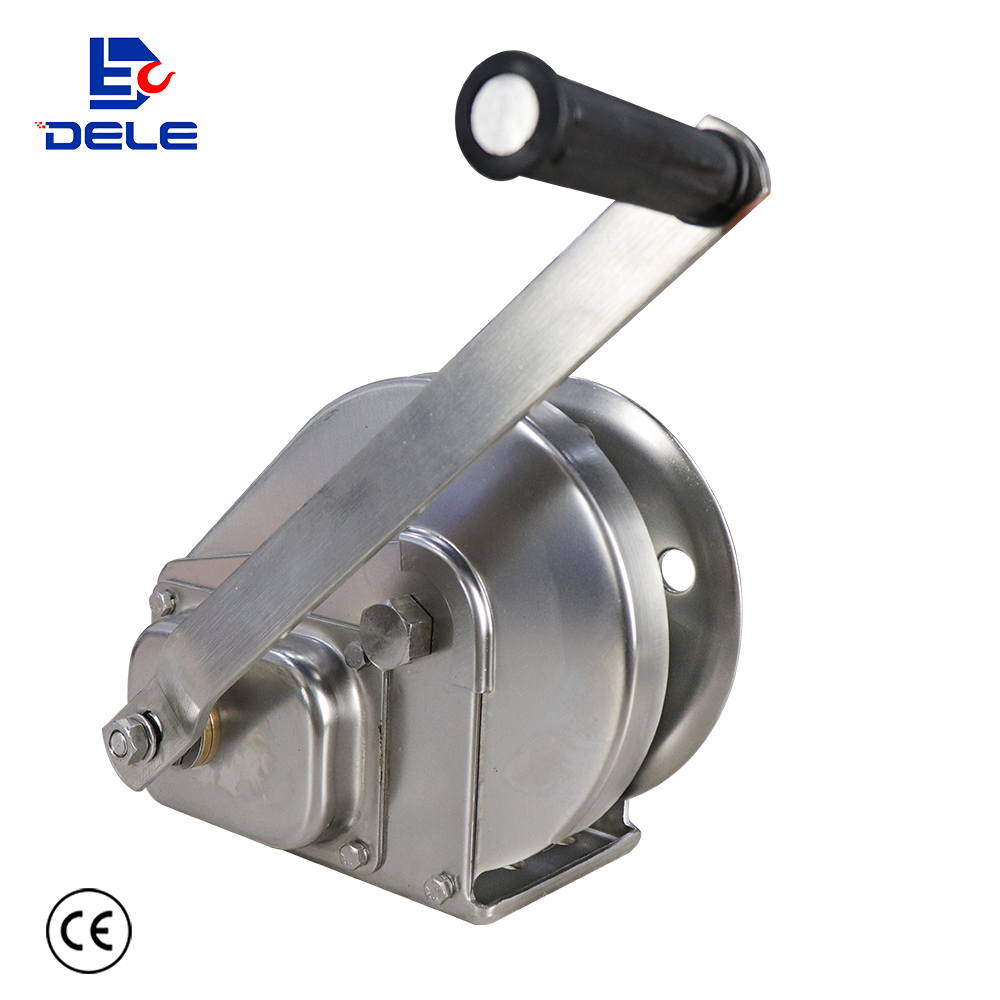

DL-C SELF-LOCKING WINCH
| Model | Rated capacity (LBS) | B/S (kg) | Cable | Webbing | Gear Ratio | Way/Speed | Net Weight(kg) | |
| DL-C8 | 800 | 544 | φ4mmx6m | 50mmx6m | 3.2:1 | 2 way/1 speed | 2.25 | |
| DL-C12 | 1200 | 825 | φ4mmx8m | 50mmx8m | 4.2:1 | 2 way/1 speed | 3.8 | |
| DL-C16 | 1600 | 1080 | φ5mmx 10m | 50mmx 10m | 4.0:1 | 2 way/1 speed | 5.2 | |
| DL-C18 | 1800 | 1200 | φ5mmx 10m | 50mmx 10m | 5.0:1 | 2 way/1 speed | 8.1 | |
| DL-C26 | 2600 | 1770 | φ5mmx 10m | 50mmx 10m | 10.0:1 | 2 way/1 speed | 10.3 | |
| Model | Main Size(mm) | |||||||
| A | B | C | D | E | F | G | H | |
| DL-C8 | 145 | 120 | 82 | 247 | 51 | 165 | 108 | 32 |
| DL-C12 | 182 | 156 | 88 | 288 | 51 | 204 | 109 | 32 |
| DL-C16 | 195 | 174 | 93 | 292 | 51 | 204 | 109 | 32 |
| DL-C18 | 244 | 200 | 108 | 292 | 60 | 312 | 109 | 32 |
| DL-C26 | 292 | 214 | 128 | 318 | 60 | 312 | 109 | 32 |
