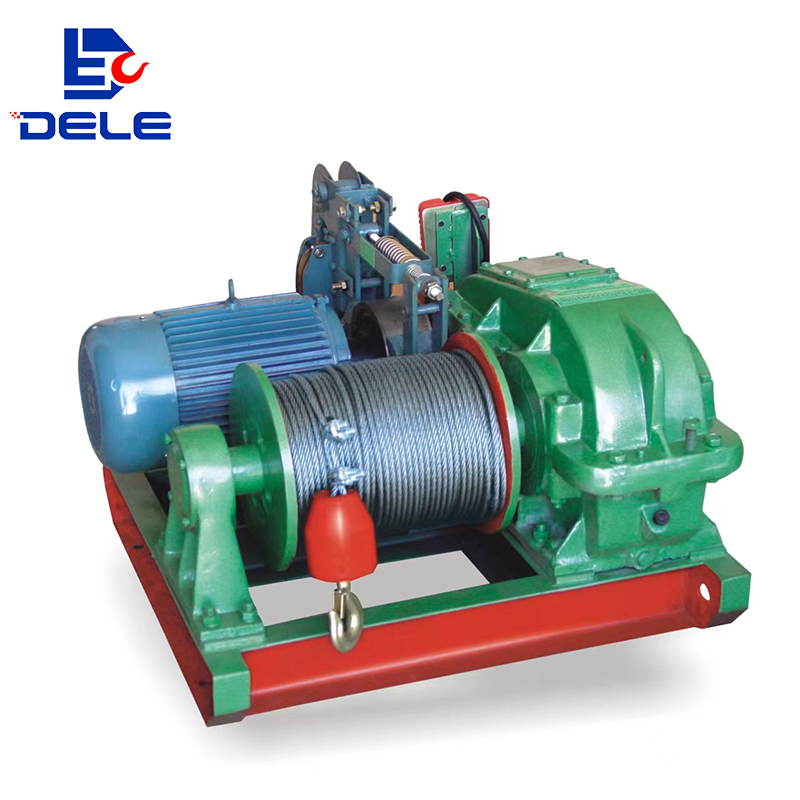

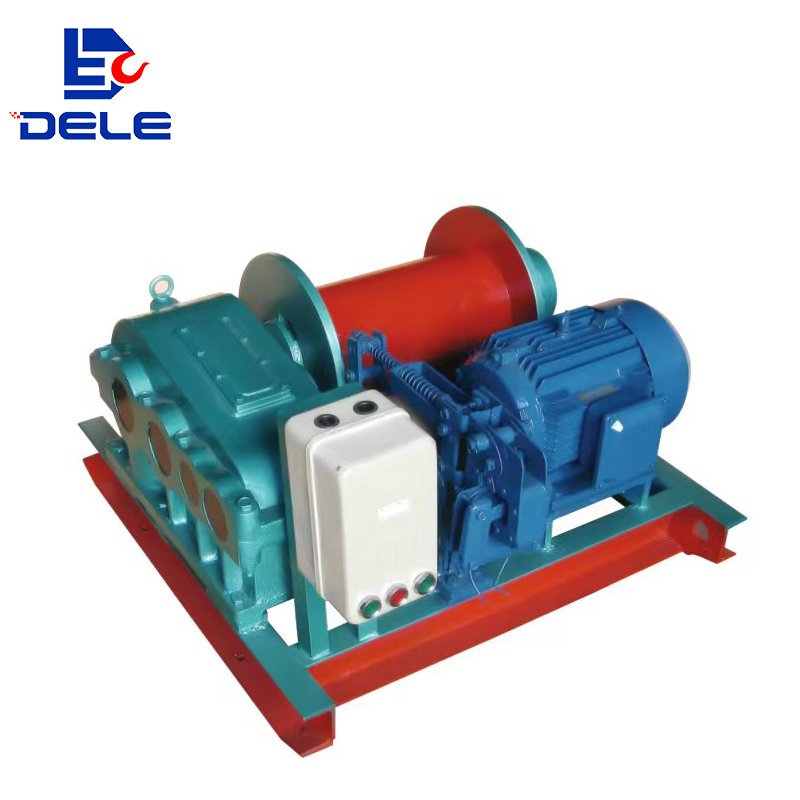

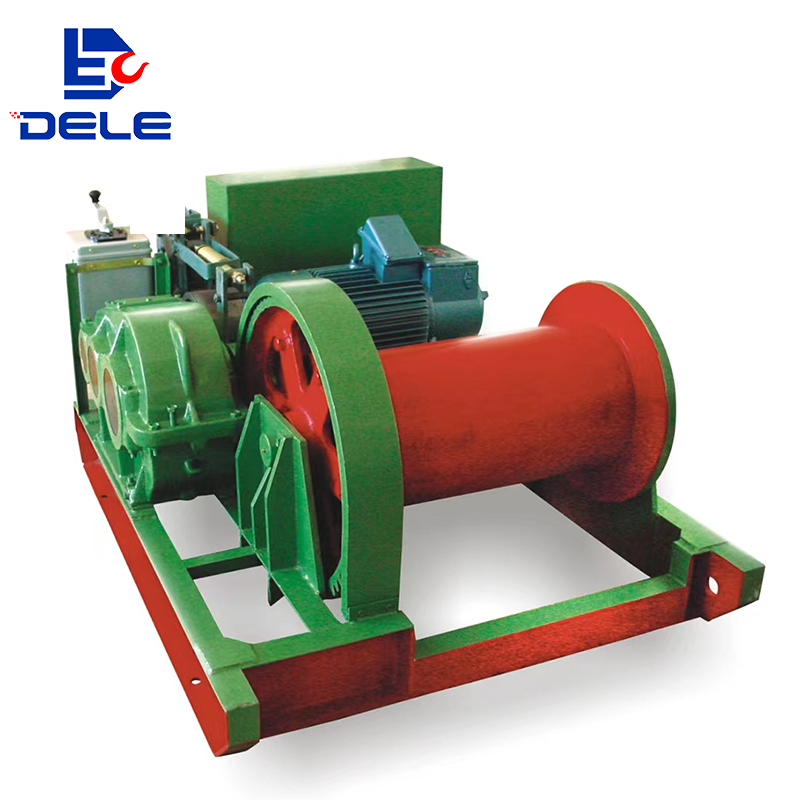

DLJM BUILDING ELECTRIC WINCH
Features:
●This series electric winch can be mainly used in lifting, disassemble, moving and installing points in buildings site ,
digging and workshops.With strong pull. Wire rope arranged in order, safe and reliable.
| Model | Rated speed（m/min） | Transmission type | Speed ratio | Outside diameter of rope drum | Inside diameter of rope drum | Drum size(mm) | Rope diameter(mm) | Wire rope capacity(m) | Arrester type | Machine weight(kg) | Motor type(kw) | Size(mm) |
| DLJM-1T | 12 | Four-axis 320 | 90:1 | 320 | 160 | 440 | 9.3 | 100 | Electromagnetic 150 | 200 | 5.5-4 | 800*700*450 |
| DLJM-2T | 12 | Four-axis 430 | 90:1 | 400 | 180 | 500 | 12 | 150 | Electromagnetic 200 | 380 | 11-4 | 1000*1000*550 |
| DLJM-3T | 12 | Four-axis 480 | 90:1 | 400 | 220 | 600 | 12 | 150 | Hydraulic pressure 200 | 480 | 15-4 | 1100*1100*550 |
| DLJM-5T | 12 | Four-axis 620 | 90:1 | 620 | 300 | 600 | 15 | 150 | Hydraulic pressure 300 | 1000 | 15-6 | 1200*1200*600 |
| DLJM-5T | 8 | Four-axis 620 | 90:1 | 620 | 300 | 600 | 15 | 150 | Hydraulic pressure 300 | 800 | YZR 11-6 | 1200*1200*600 |
| DLJM-8T | 8 | Four-axis 750 | 175:1 | 720 | 425 | 1000 | 22 | 150 | Hydraulic pressure 300 | 1800 | YZR 18.5-6 | 1700*1700*900 |
| DLJM-10T | 8 | Four-axis 790 | 175:1 | 720 | 425 | 1100 | 25 | 150 | Hydraulic pressure 300 | 2000 | YZR 22-6 | 1800*1800*900 1900*1900*900 |
| DLJM16-20T | 8 | Five-axis 1100 | 250:1 | 1000 | 525 | 1300 | 32 | 150 | Hydraulic pressure 400 | 4000 | YZR 37-6 YZR 45-6 | 2200*2200*1350 |
