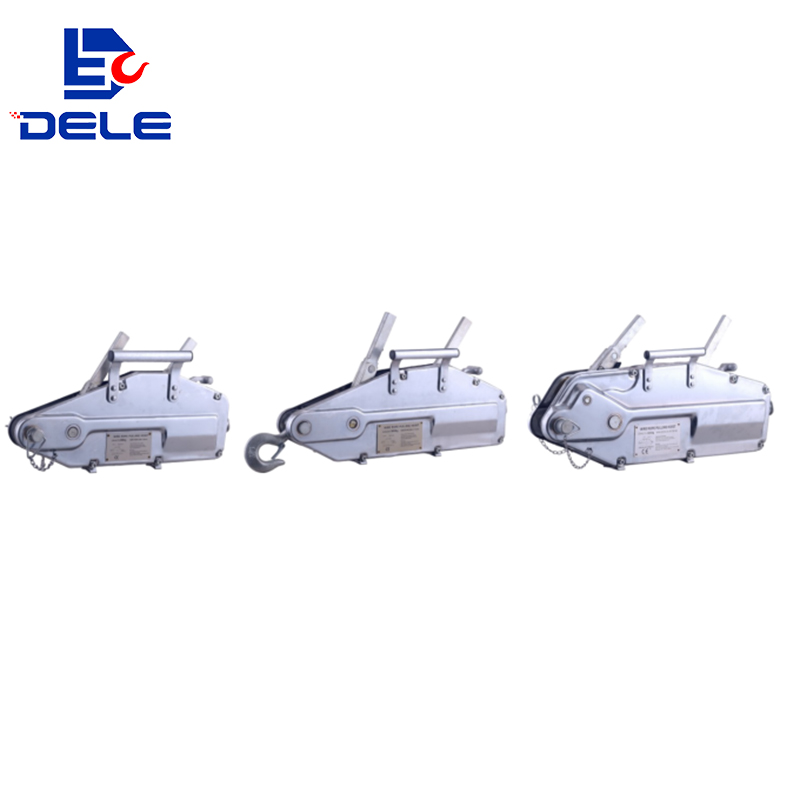

DLHS RON WIRE ROPE PULLEY MACHINE
Technique Parameter
| Model No. | DLHS-0.8T | DLHS-1.6T | DLHS-3.2T | |
| Rated Capacity | (t) | 0.8 | 1.6 | 3.2 |
| Pulling Capacity | (t) | 1.2 | 2.4 | 4 |
| Lever Pull at Rated Load | (N) | 284 | 412 | 441 |
| Forward Travel | (mm) | ≥52 | ≥55 | ≥28 |
| Wire Rope Diameter | (mm) | 8.3 | 11 | 16 |
| Net Weight(Body) | (kg) | 6.8 | 12.8 | 23.4 |
| Net Weight(20m Wire Rope) | (kg) | 6.5 | 10.5 | 22 |
| Net Weight(Lever Handle) | (kg) | 1.3 | 2.3 | 2.3 |
| Dimensions (Body) L*W*H | (mm) | 440*70*255 | 560*100*295 | 675*120*350 |
| Chassis | Cold rolled steel sheet made of stamping. high strength | |||
| Shell surface treatment | Spray, chrome plated standard for sandgray, color can be customized | |||
| Jaw blocks | Using 40 cr ,suitable hardness after quenching that does not damage the wire rope and can ensure safety | |||
| Wire rope | Hot dip galvanized structure 6x19W+IWR,the standard 20 meters, strength 1770Mpa,length can be customized | |||
| Wire rope hook | Standard American eye hook,material 35CrMo,high tensile strength.Swivel hook or European hook can be used as required | |||
