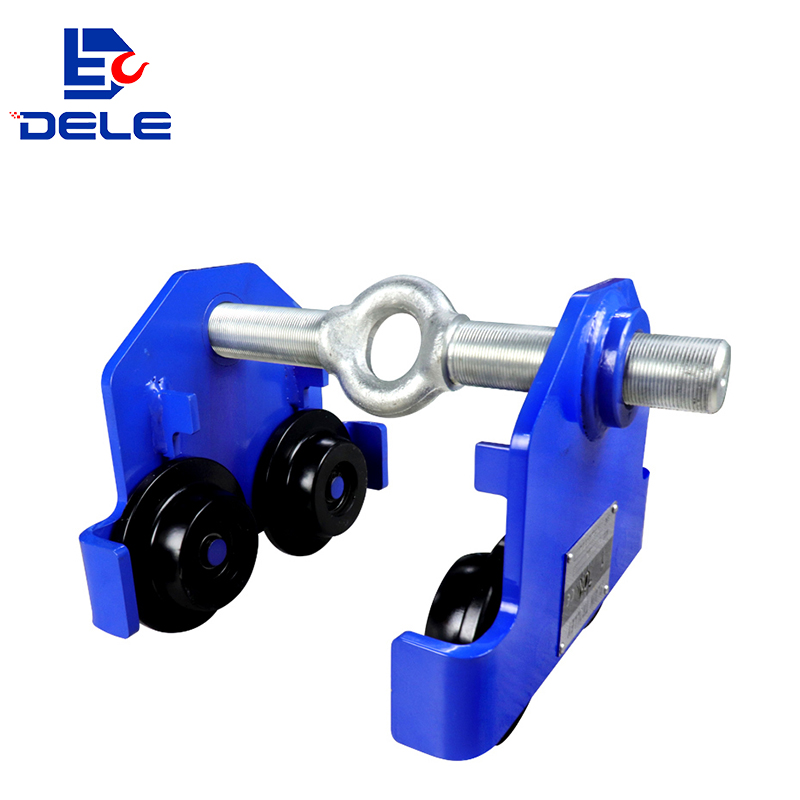

DAP TYPE PLAIN TROLLEY
●DELELIFT trolley enabling exact positioning or easy traversingof large loads incorporating manual hoists.
●Equipped with asmooth and effortless lifting mechanism.With its easy-to-usecontrols,you can effortlessly adjust the lifting height,allowingfor precise positioning of your load.
●This ensures maximumsafety and efficiency in your lifting operations

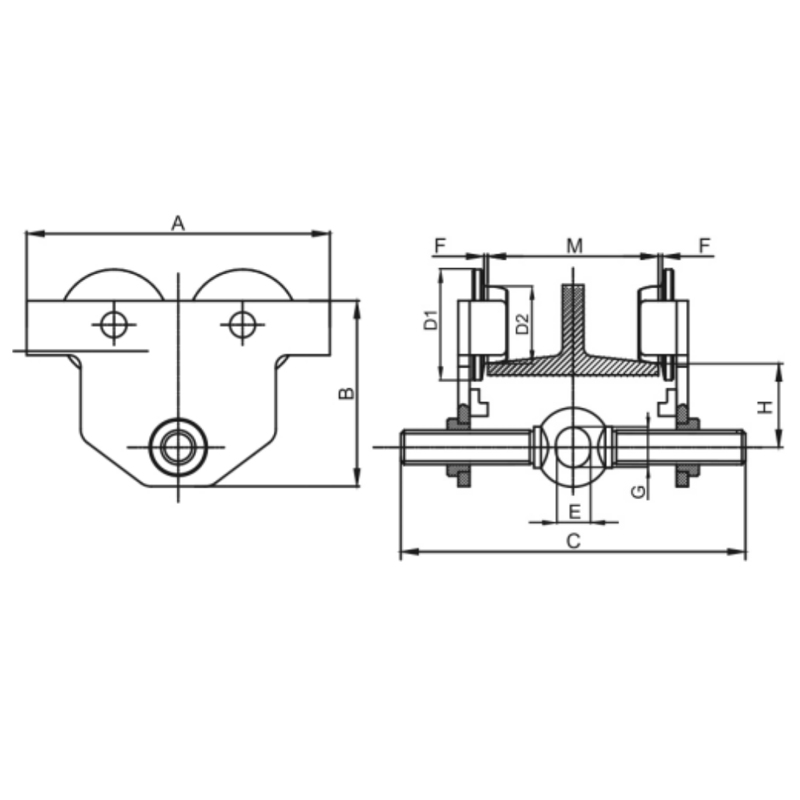

| Model | Rated capacity(t) | Min.Curve Radlue(m) | Beam Flange Width(mm) | Dimensions(mm) | Net Weight(kg) | |||||||||
| M | A | B | C | D1 | D2 | F | E | G | H | |||||
| DAP0.5 | 0.5 | 0.8 | 64-220 | 200 | 150 | 292 | Φ78 | Φ57 | 1.5-3 | 25 | 30 | 65 | 5.9 | |
| DAP1 | 1.0 | 0.9 | 64-220 | 240 | 163 | 300 | Φ96 | Φ67 | 1.5-3 | 30 | 35 | 75 | 9.3 | |
| DAP2 | 2.0 | 1.0 | 88-220 | 286 | 190 | 310 | Φ109.6 | Φ80 | 1.5-3 | 40 | 47 | 80 | 15.3 | |
| DAP3 | 3.0 | 1.2 | 102-220 | 320 | 225 | 320 | Φ129.3 | Φ92 | 1.5-3 | 48 | 58 | 95 | 24.7 | |
| DAP5 | 5.0 | 1.3 | 114-220 | 370 | 255 | 335 | Φ143 | Φ109 | 1.5-3 | 60 | 75 | 105 | 39 | |
