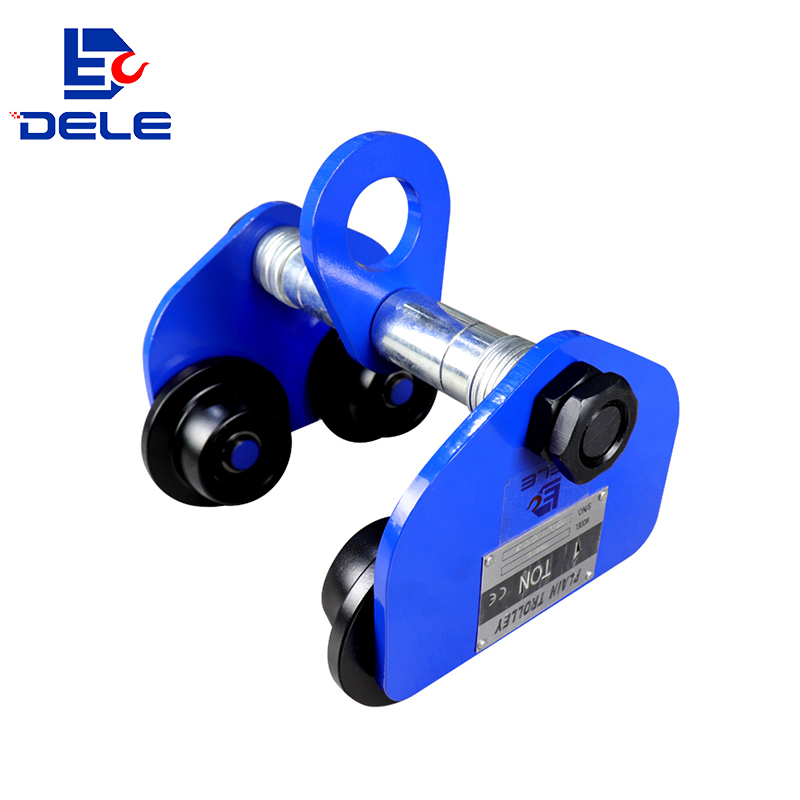

DTP610 TYPE PLAIN TROLLEY
• Adjustable to any beam width,simpley by adjusting the number of collars.
• The wheels are made to fit any shape of beam.
• High grade sealed ball bearings.
• More thickness of the steel plates and strong shaft to ensure the good safety.
• Forged steel moving wheel.and keep it from tipping.
• The safety test is 6times of capacity.
• Super quality for long lasting.

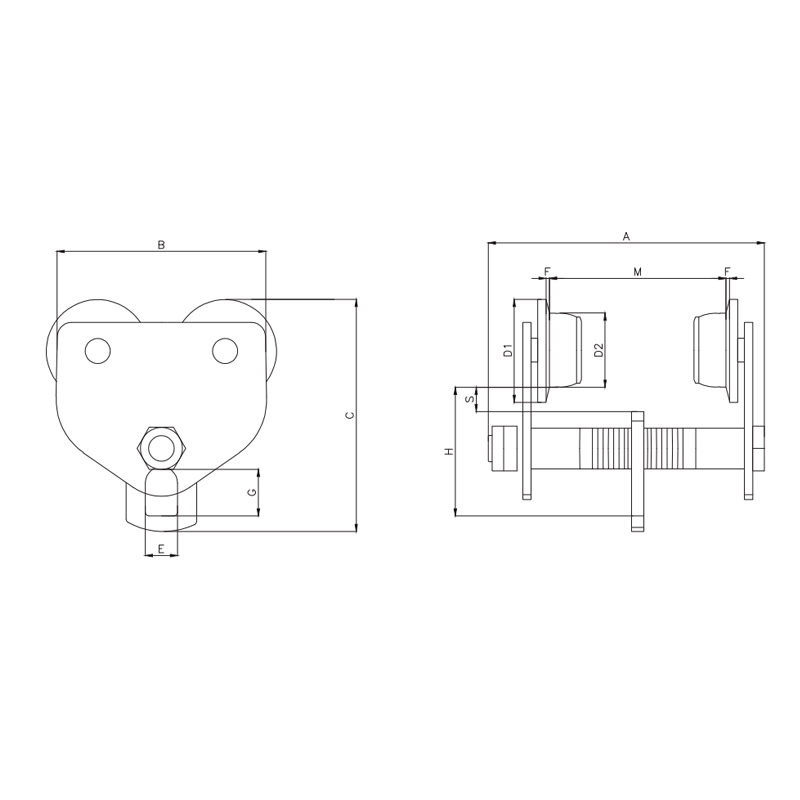

| Model | Rated capacity(t) | Min.Curve Radlue(m) | Beam Flange Width(mm) | Dimensions(mm) | Net Weight(kg) | ||||||||||||
| M | A | B | C | D1 | D2 | F | E | G | H | S | |||||||
| a | b | a | b | a | b | ||||||||||||
| DTP610-0.5 | 0.5 | 0.8 | 68-140 | 82-203 | 220 | 285 | 148 | 175 | Φ78 | Φ57 | 1.5-3 | 23 | 37 | 95 | 25 | 4.6 | 4.9 |
| DTP610-1 | 1.0 | 0.9 | 80-146 | 64-203 | 230 | 295 | 160 | 191 | Φ84 | Φ60 | 1.5-3 | 24 | 38 | 107 | 21 | 6.8 | 7.2 |
| DTP610-2 | 2.0 | 1.0 | 80-168 | 88-203 | 275 | 310 | 174 | 233 | Φ102 | Φ75 | 1.5-3 | 29 | 45 | 128 | 29 | 11.8 | 12.1 |
| DTP610-3 | 3.0 | 1.2 | 88-168 | 102-203 | 285 | 325 | 210 | 282 | Φ120 | Φ90 | 1.5-3 | 36 | 65 | 153 | 22 | 18.9 | 21.2 |
| DTP610-5 | 5.0 | 1.3 | 114-203 | 335 | 250 | 343 | Φ141 | Φ110 | 1.5-3 | 45 | 75 | 218 | 31 | 31 | |||
