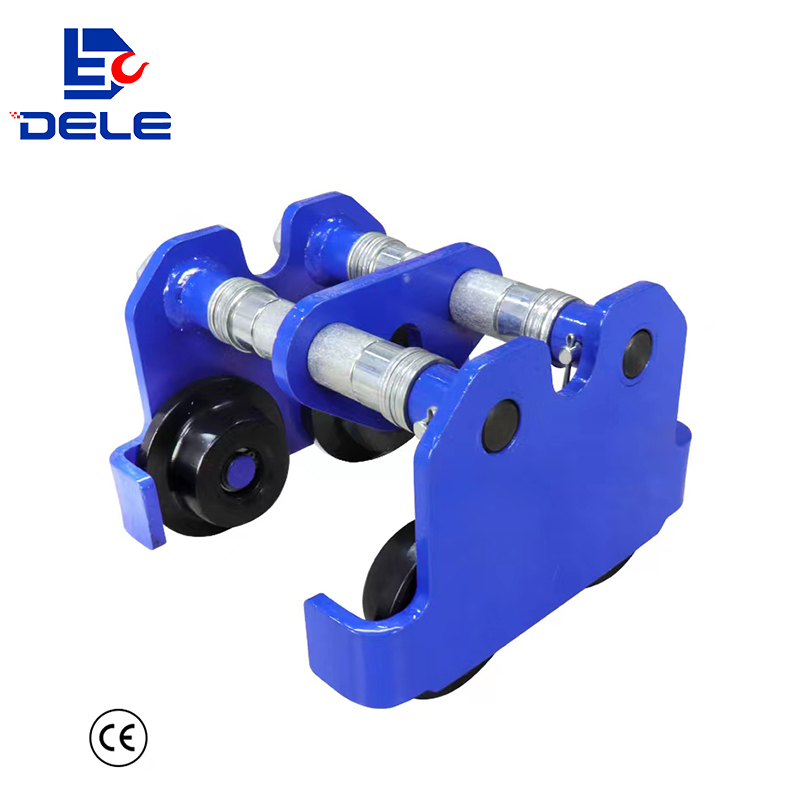

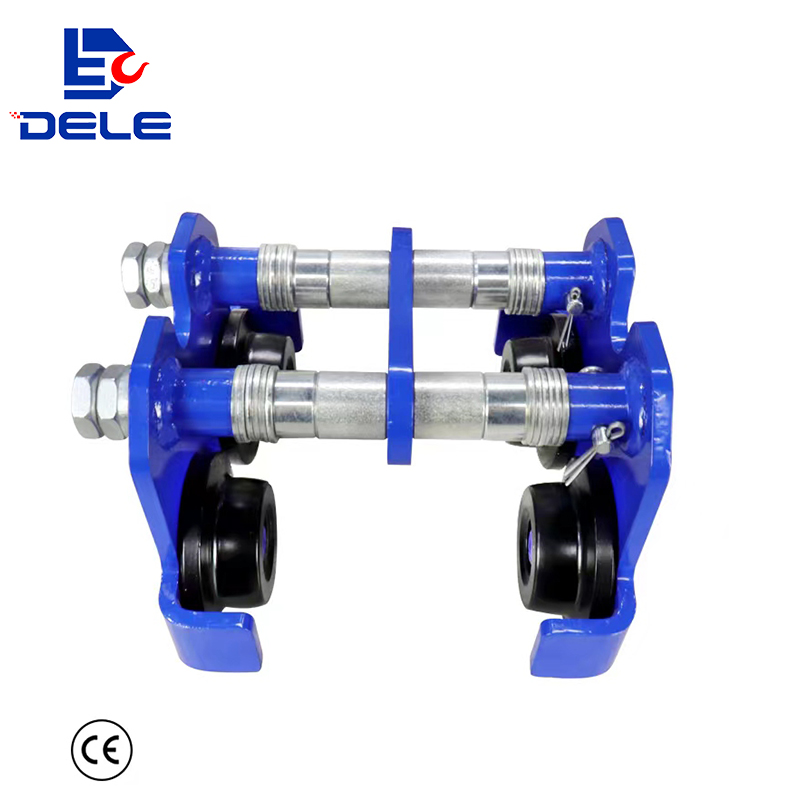

DTDP TYPE PLAIN TROLLEY
• Adjustable to any beam width,simpley by adjusting the number of collars.
• The wheels are made to fit any shape of beam.
• High grade sealed ball bearings.
• More thickness of the steel plates and strong shaft to ensure the good safety.
• Forged steel moving wheel.and keep it from tipping.
• The safety test is 6times of capacity.
• Super quality for long lasting.

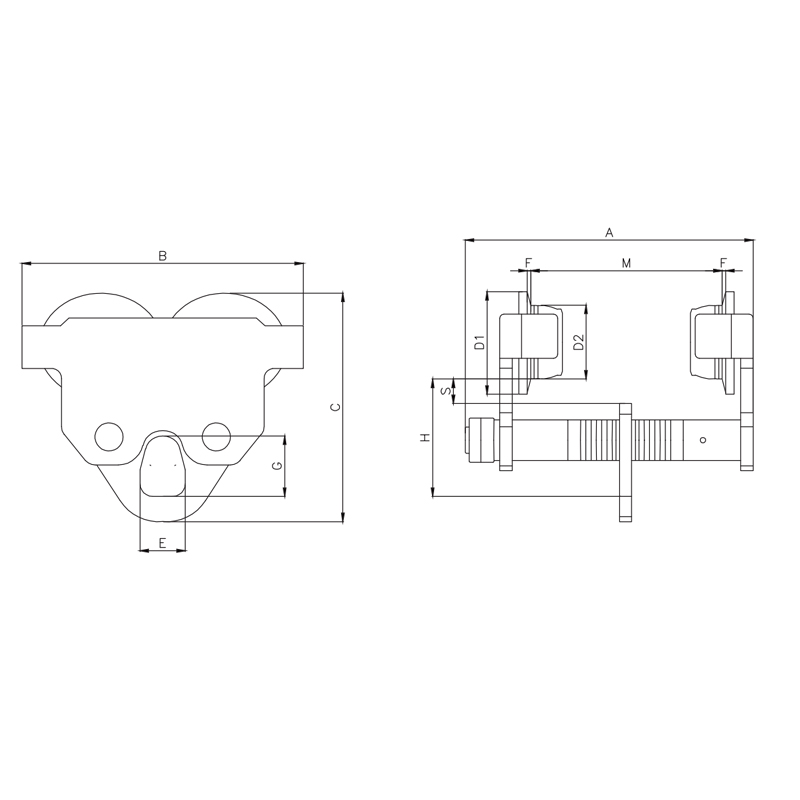

| Model | Rated capacity(t) | Min.Curve Radlue(m) | Beam Flange Width(mm) | Dimensions(mm) | Net Weight(kg) | ||||||||||
| M | A | B | C | D1 | D2 | F | E | G | H | S | |||||
| DTDP0.5 | 0.5 | 0.8 | 68-126 | 210 | 196 | 174 | Φ78 | Φ57 | 1.5-3 | 24 | 38 | 97 | 22 | 5.5 | |
| DTDP1 | 1.0 | 0.9 | 80-146 | 230 | 213 | 174 | Φ84 | Φ60 | 1.5-3 | 24 | 38 | 89 | 27 | 7.6 | |
| DTDP2 | 2.0 | 1.0 | 80-150 | 234 | 255 | 216 | Φ102 | Φ75 | 1.5-3 | 37 | 52 | 111 | 33 | 10 | |
| DTDP3 | 3.0 | 1.2 | 80-150 | 248 | 300 | 249 | Φ120 | Φ90 | 1.5-3 | 42 | 59 | 117 | 30 | 21 | |
| DTDP5 | 5.0 | 1.3 | 100-203 | 314 | 340 | 305 | Φ141 | Φ110 | 1.5-3 | 46 | 75 | 154 | 43 | 36.2 | |
| DTDP10 | 10.0 | 1.6 | 122-203 | 344 | 450 | 410 | Φ189 | Φ150 | 1.5-3 | 72 | 110 | 195 | 45 | 77.6 | |
