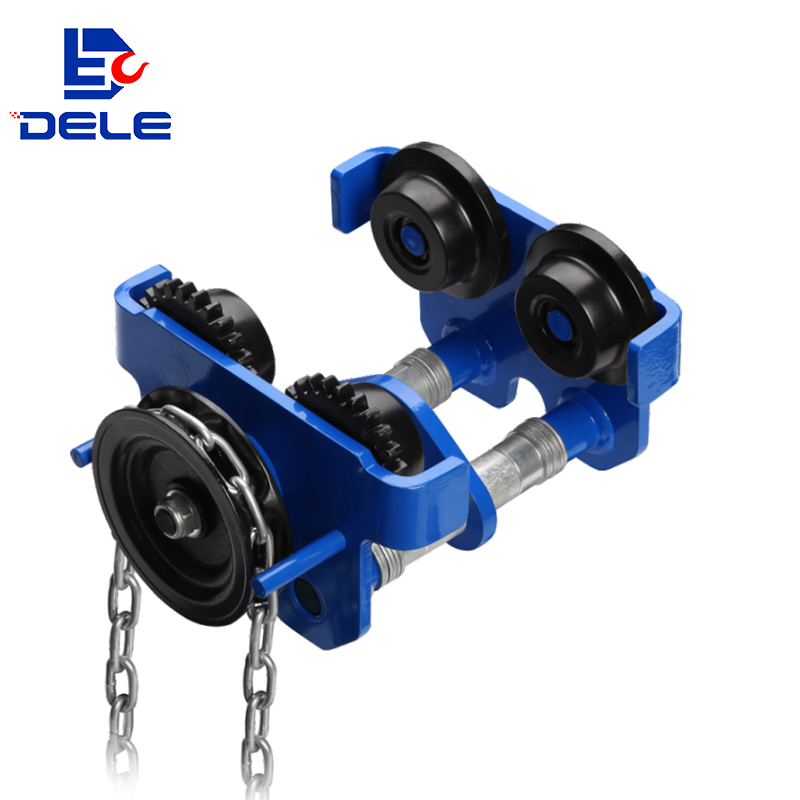

DTG TYPE GEARED TROLLEY
●DELELIFT trolley enabling exact positioning or easy traversingof large loads incorporating manual hoists.
●Equipped with asmooth and effortless lifting mechanism.With its easy-to-usecontrols,you can effortlessly adjust the lifting height,allowingfor precise positioning of your load.
●This ensures maximumsafety and efficiency in your lifting operations

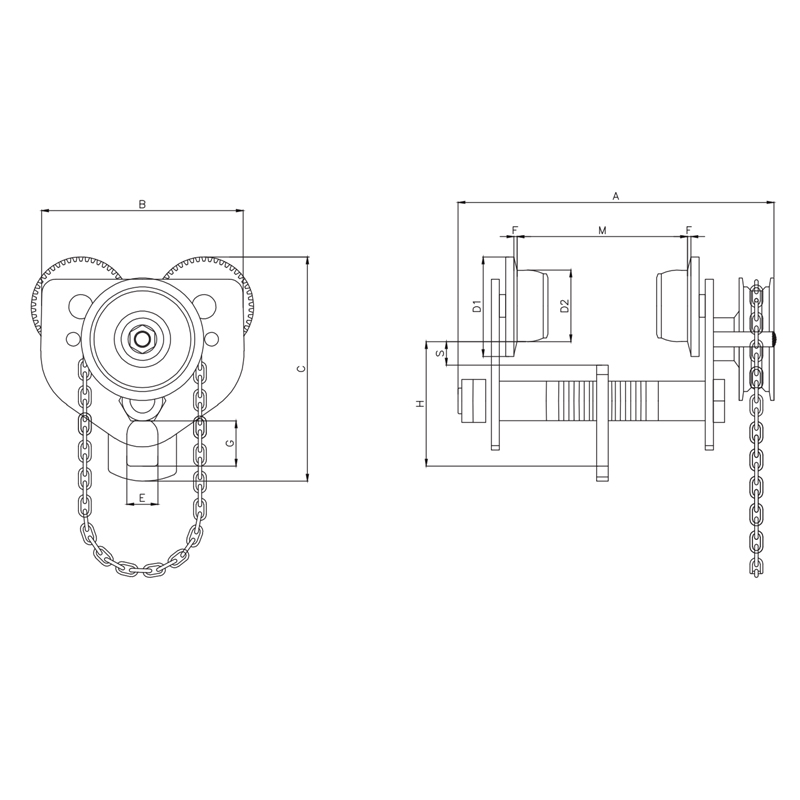

| Model | Rated capacity(t) | Min.Curve Radlue(m) | Beam Flange Width(mm) | Dimensions(mm) | Net Weight(kg) | ||||||||||||
| M | A | B | C | D1 | D2 | F | E | G | H | S | |||||||
| a | b | a | b | a | b | ||||||||||||
| DTG0.5 | 0.5 | 0.8 | 68-140 | 82-203 | 262 | 317 | 192 | 175 | Φ78 | Φ57 | 1.5-3 | 23 | 37 | 95 | 25 | 8.4 | 8.7 |
| DTG1 | 1.0 | 0.9 | 80-146 | 64-203 | 266 | 327 | 213 | 191 | Φ84 | Φ60 | 1.5-3 | 24 | 38 | 107 | 21 | 10.8 | 11.5 |
| DTG2 | 2.0 | 1.0 | 80-168 | 68-203 | 312 | 351 | 255 | 233 | Φ102 | Φ75 | 1.5-3 | 29 | 45 | 128 | 29 | 16 | 17 |
| DTG3 | 3.0 | 1.2 | 88-168 | 102-203 | 324 | 364 | 320 | 282 | Φ120 | Φ90 | 1.5-3 | 36 | 65 | 153 | 22 | 23.5 | 24.8 |
| DTG5 | 5.0 | 1.3 | 114-203 | 358 | 380 | 343 | Φ141 | Φ110 | 1.5-3 | 45 | 75 | 216 | 31 | 37.5 | |||
| DTG10 | 10.0 | 1.7 | 125-203 | 412 | 454 | 477 | Φ189 | Φ150 | 1.5-3 | 70 | 110 | 262 | 32 | 92 | |||
| DTG20 | 20.0 | 3.5 | 125-203 | 453 | 550 | 567 | Φ225 | Φ168 | 1.5-3 | 76 | 115 | 315 | 40 | 180.3 | |||
| DTG30 | 30.0 | 6 | 125-203 | 463 | 630 | 645 | Φ255 | Φ196 | 1.5-3 | 90 | 130 | 354 | 39 | 252 | |||
