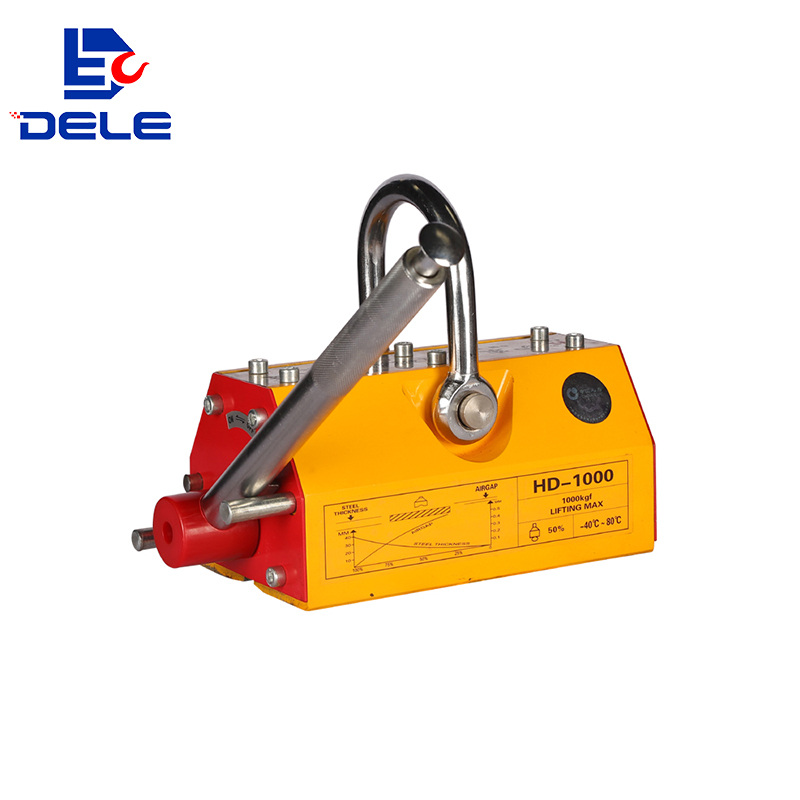

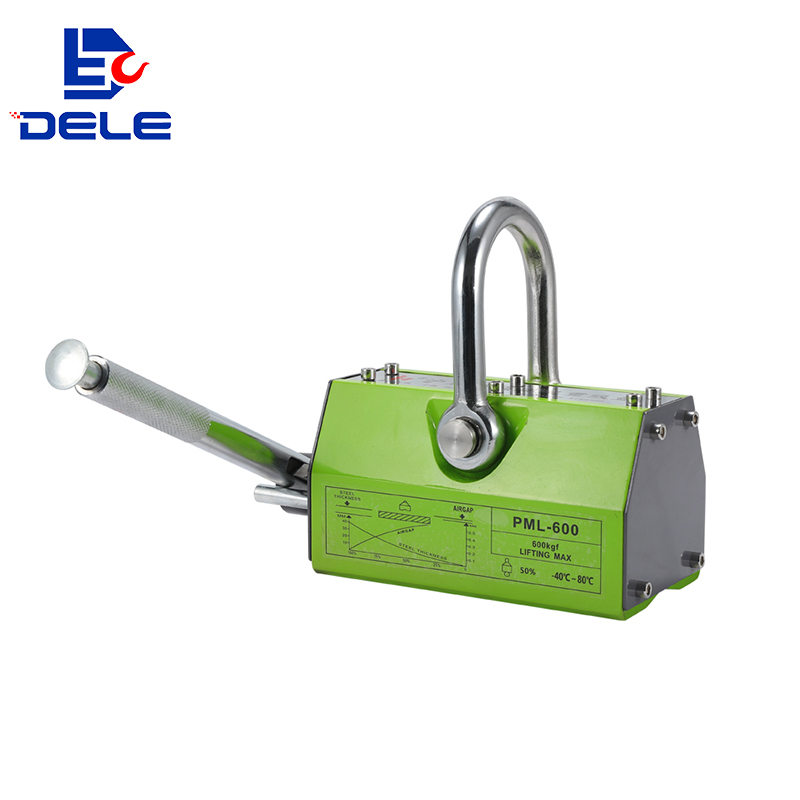

DML SERIES PERMANENT MAGNETIC LIFTER
Features:
●DML Model safety factor 3.5:1.
●Strong permanent magnetic circuit.
●Stable and lasting working performance.
●Strong pull-off strength.
●High safety factor and reliable quality.

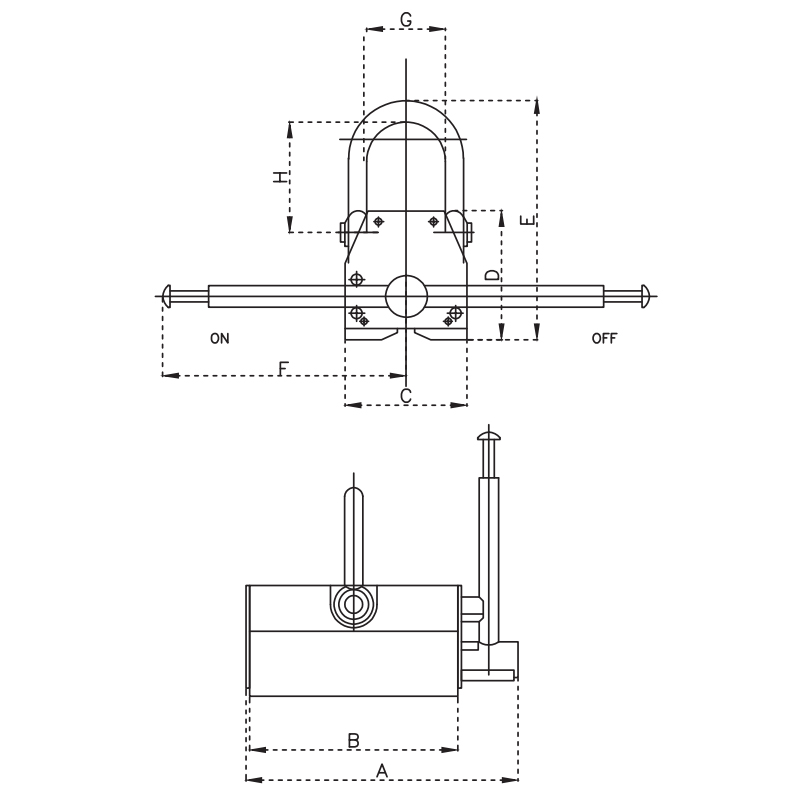

| Model | Rated capacity (kg) | Pull-off force | length(mm) | Width(mm) | Height(mm) | Net welght (kg） | Gross weight (kg) |
| DML-0.1T | 100 | 3.5 | 87 | 64 | 69 | 3.5 | 4 |
| DML-0.2T | 200 | 3.5 | 142 | 87 | 85 | 7.6 | 8.1 |
| DML-0.3T | 300 | 3.5 | 178 | 88 | 85 | 9.6 | 11 |
| DML-0.4T | 400 | 3.5 | 200 | 112 | 103 | 16 | 17 |
| DML-0.6T | 600 | 3.5 | 222 | 111 | 116 | 20.1 | 22 |
| DML-0.8T | 800 | 3.5 | 267 | 133 | 126 | 30 | 32 |
| DML-1T | 1000 | 3.5 | 295 | 143 | 143 | 41 | 43 |
| DML-1.5T | 1500 | 3.5 | 355 | 155 | 155 | 61 | 65 |
| DML-2T | 2000 | 3.3 | 360 | 160 | 182 | 74 | 77 |
| DML-3T | 3000 | 3.3 | 467 | 160 | 182 | 95 | 99 |
| DML-5T | 5000 | 3.3 | 600 | 232 | 260 | 222 | 230 |
| DML-10T | 10000 | 3.0 | 600 | 467 | 260 | 580 | 600 |
