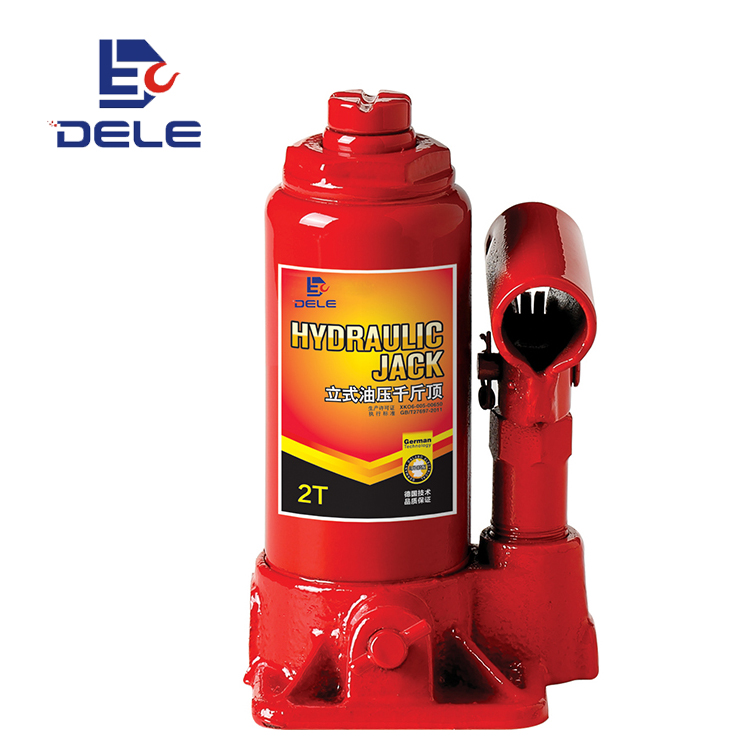

DME HYDRAULIC BOTTLE JACK
| Model | Rated capacity （t） | Min.H(mm) | Lifting.H(mm) | Adjust.H(mm） | Max.H(mm） | Net weight（kg） | Package | Packing size（cm） | Qty/ctn (pcs) | Gross Weight(kg） | 20 Container(pcs) |
| DME-0203 | 2 | 158 | 90 | 60 | 308 | 2.23 | Color Box | 52*25.5*19 | 10 | 23 | 7800 |
| DME-0303 | 3-4 | 195 | 125 | 60 | 380 | 3.2 | Color Box | 46*26.5*22.5 | 8 | 26 | 5400 |
| DME-0503 | 5-6 | 197 | 125 | 60 | 382 | 4.1 | Color Box | 38*27.5*22.5 | 6 | 25 | 4200 |
| DME-0803 | 8 | 205 | 125 | 60 | 390 | 4.9 | Color Box | 29.5*27.5*22.5 | 4 | 20 | 3340 |
| DME-1003 | 10 | 205 | 125 | 60 | 390 | 5.6 | Color Box | 30.15*29.5*24 | 4 | 23 | 3000 |
| DME-1203 | 12 | 215 | 125 | 60 | 400 | 6.5 | Color Box | 30.15*29.5*24 | 2 | 13.5 | 2500 |
| DME-1503 | 15-16 | 225 | 140 | 60 | 425 | 7.8 | Color Box | 31.5*17*24.5 | 2 | 16 | 2250 |
| DME-2003 | 20 | 244 | 145 | 60 | 449 | 10.2 | Color Box | 34.5*19.5*27 | 2 | 21 | 1500 |
| DME-3203A | 30-32 | 285 | 180 | / | 465 | 13.5 | Color Box | 37.5*19*31 | 2 | 28 | 1240 |
| DME-3203 | 32 | 285 | 180 | / | 465 | 14 | Color Box | 37.5*19*31 | 2 | 28.5 | 1240 |
| DME-5003 | 50 | 300 | 180 | / | 480 | 29.5 | Carton | 26*24*33 | 1 | 30 | 540 |
| DME-0203-S | 2 | 158 | 90 | 60 | 308 | 2.23 | Blow Case | 34.5*34.5*25.5 | 6 | 16 | 4800 |
| DME-0303-S | 3-4 | 195 | 125 | 60 | 380 | 3.2 | Blow Case | 38.5*35.5*29.5 | 6 | 23 | 4200 |
| DME-0503-S | 5-6 | 197 | 125 | 60 | 382 | 4.1 | Blow Case | 39.5*26.5*30.5 | 4 | 20 | 3500 |
| DME-0803-S | 8 | 205 | 125 | 60 | 390 | 4.9 | Blow Case | 39.5*26.5*30.5 | 4 | 24 | 3500 |
| DME-1003-S | 10 | 205 | 125 | 60 | 390 | 5.6 | Blow Case | 31*22.5*32.5 | 2 | 14 | 1280 |
| DME-1203-S | 12 | 215 | 125 | 60 | 400 | 6.5 | Blow Case | 31*22.5*32.5 | 2 | 16 | 1280 |
