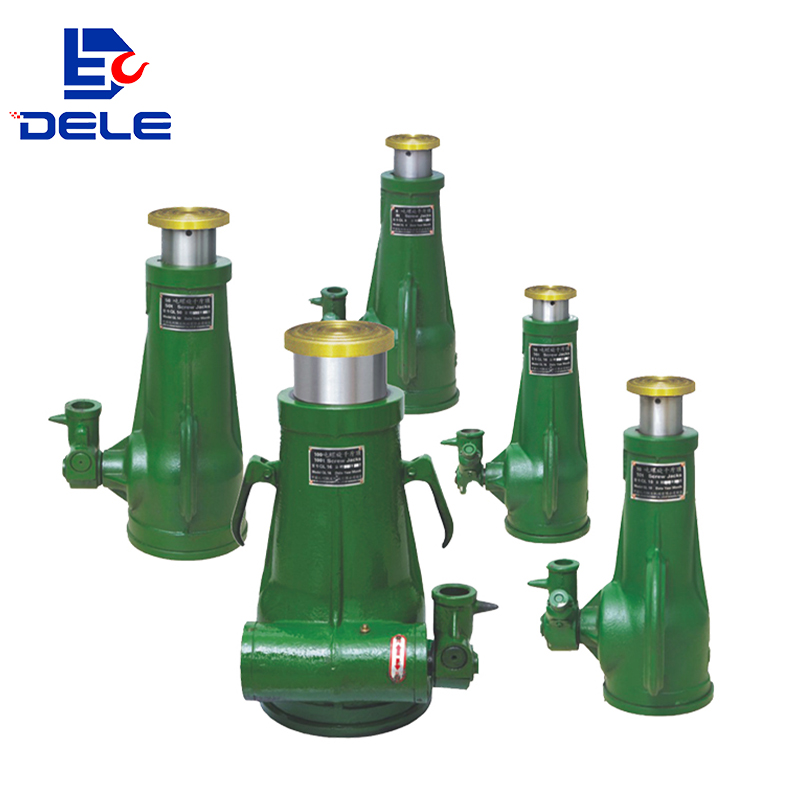

DQL SCREW JACK
Scope application
DQL Screw Jack is a new series of national stereo types. lt has the advantages of compact structure, small volume, light weight, convenient carrying, widely used in factory warehouses, bridges, docks, transportation and construction engineering departments ofthe lifting operation.
Working principle
Mechanical jacks is one type of manual lifting tool which has the advantage of compact strucure, reasonable use of the swing of the rocking rod, so that the pinion to rotate through a pair of level gears, and running to drive the screw to rotate, push the elevatingsleeve, there by the weight rises or falls.
| Model | Rated capacity (t) | Lifting.H (mm) | Min.H (mm) | Net Weight(kg) | Gross Weight(kg) | Qty/Ctn (Pcs) | Packing Size(cm) |
| DQL-3.2 | 3.2 | 110 | 220 | 4 | 5 | 5 | 65*27*16 |
| DQL-5 | 5 | 135 | 250 | 5.7 | 6.7 | 5 | 72*30*19 |
| DQL-8 | 8 | 140 | 260 | 5.95 | 6.95 | 5 | 72*30*19 |
| DQL-10 | 10 | 160 | 280 | 7.4 | 8.4 | 4 | 61*32*20 |
| DQL-16 | 16 | 190 | 320 | 10.88 | 11.58 | 3 | 60*37*21 |
| DQL-20 | 20 | 190 | 320 | 11 | 13 | 3 | 60*37*21 |
| DQL-25 | 25 | 140 | 265 | 9.71 | 11.71 | 3 | 60*32*21 |
| DQL-32 | 32 | 200 | 395 | 17.7 | 19.7 | 2 | 44*42*25 |
| DQL-50 | 50 | 260 | 440 | 32 | 34 | 1 | 50*34*28 |
| DQL-100 | 100 | 220 | 445 | 63.5 | 65.5 | 1 | 40*40*56 |
| DQL-200 | 200 | 200 | 472 | 115 | 117 | 1 | 48*41*53 |
| DQL-320 | 320 | 200 | 540 | 207 | 209 | 1 | / |
| DQLD-10 | 10 | 85 | 200 | 5 | 7 | 5 | 72*27*19 |
| DQLD-20 | 20 | 100 | 225 | 8.8 | 9.8 | 3 | 61*31*21 |
| DQLD-32 | 32 | 180 | 310 | 16 | 18 | 2 | 42*37*24 |
| DQLD-50 | 50 | 165 | 320 | 25.7 | 27.7 | 1 | 39*35*28 |
