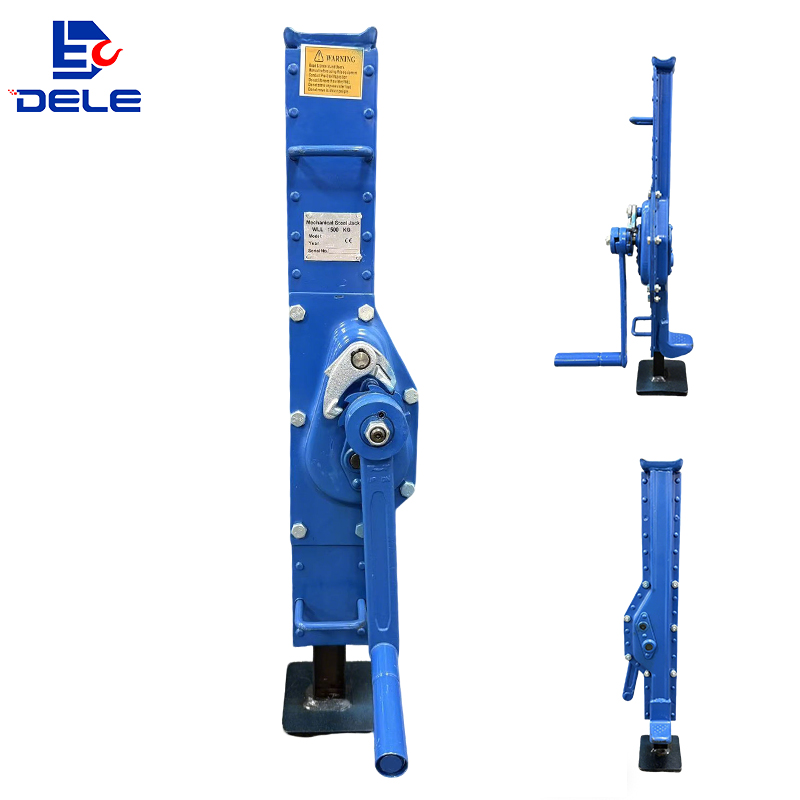

DSJ MECHANICAL STEEL JACK
●The mechanical steel jack is designed by mechanical transmission principle. It's one of the best lift tools used in repairing and supporting, etc.
●The lifting or lowering speed is controllable.Moreover, it overcomes the shortcoming of the lowering speed is controllable.Moreover, it overcomes the shortcoming of the common hydraulic jacks whose lowering height and speed is out of control when oil leaking.
●The top-quality all steel structure makes it safe and durable.The compact design with collapsible lever offers easy operation and simple maintenance.lt has two applicable supports stands.The lifting range is much higher.
●All jacks are tested with 25% overload
●Equipped with fixed claw
●Folding handle
| Model | DSJ-1.5T | DSJ-3T | DSJ-5T | DSJ-10T | DSJ-16T | DSJ-20T | DSJ-25T | |
| Rated capacity | (t) | 1.5 | 3 | 5 | 10 | 16 | 20 | 25 |
| Test load | (KN) | 16.5 | 33 | 55 | 110 | 176 | 220 | 275 |
| Hand shake to lift full load | (N) | 190 | 196 | 235 | 431 | 580 | 650 | 750 |
| Net weight | (kg) | 10.7 | 21.3 | 27 | 47 | 64.5 | 72 | 93 |
| Packing size | (cm) | 62*18*19 | 76*20*23 | 79*22*28 | 85*29*34 | 85*32*35 | 92*32*35 | 101*32*35 |
| Dimensions（mm） | A | 77 | 83 | 105 | 120 | 153 | 153 | 153 |
| B | 100 | 130 | 145 | 145 | 150 | 150 | 198 | |
| C | 605-905 | 715-1085 | 730-1080 | 795-1160 | 820-1140 | 865-1180 | 950-1360 | |
| D | 55-355 | 60-430 | 70-420 | 83-448 | 135-455 | 125-440 | 110-520 | |
| E | 55 | 60 | 70 | 80 | 85 | 85 | 85 | |
| F | 40 | 45 | 68 | 73 | 90 | 90 | 90 | |
| G | 110 | 135 | 170 | 170 | 182 | 182 | 230 | |
| H | 225 | 285 | 285 | 330 | 360 | 360 | 360 | |
| K | 121 | 200 | 190 | 252 | 275 | 275 | 388 | |
| R | 119 | 140 | 155 | 185 | 210 | 224 | 200 | |
| S | 185 | 230 | 220 | 220 | 202 | 202 | 205 | |
| T | 126 | 126 | 126 | 255 | 255 | 255 | 255 |
