FLAT WEBBING SLING
All of our slings are made of A-A Grade polyester yarn.
All of them are specially PU coated, which makes them tighter, more durable & smooth.
Standard: According to EN1492-1+A1:2008
Chinese Standard:GB/T8521-1997
CE& G.S.certified
Double ply with reinforced lifting eyes.

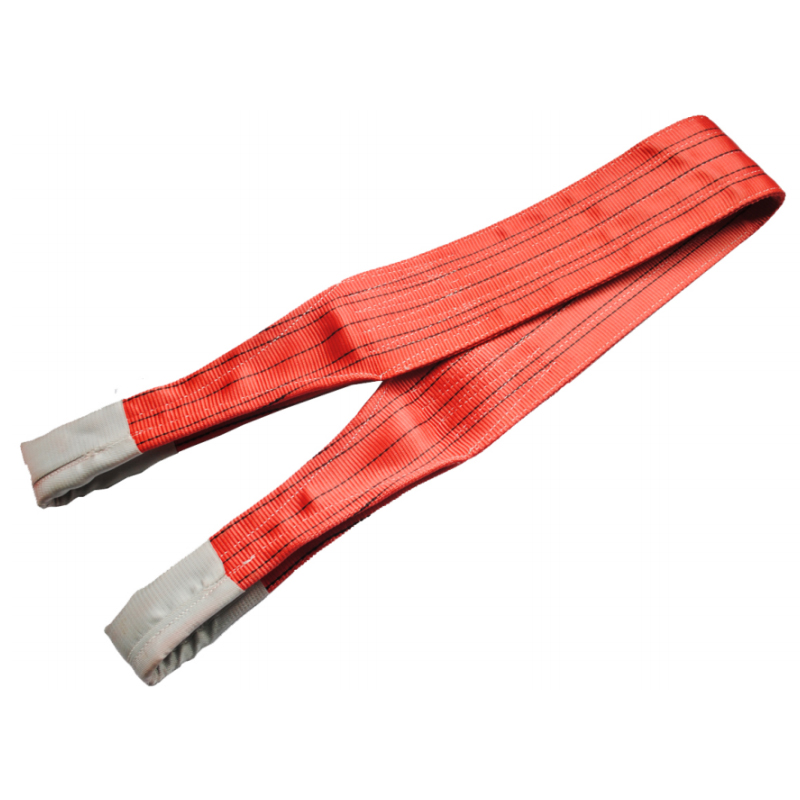

Working Load:5000 kg Color: Red
Width:125mm/150mm
Length Available:1m to 100m
Elongation with working load:2-3%.
Length tolerance:Nominal length±3%.
Material:100% high tenacity industry polyester yarn. Resistant to most acids but not to strong alkalis.
Marking:The slings are provided with a blue label with manufacturer's symbol, working load limit(WLL), length,CE marking and a label with handling instructions.
Temperature range:Approx.-40°C- +100°c.
Standard:EN 1492-1
Safety factor:5:1, 6:1,7:1.

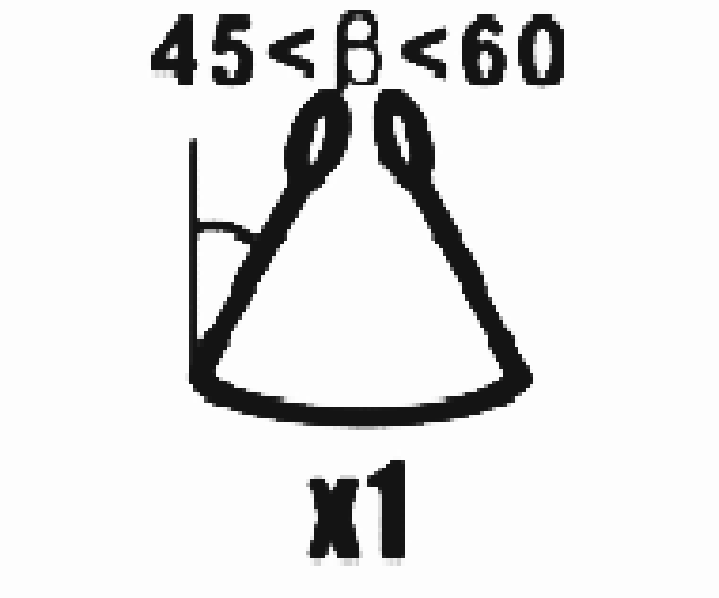

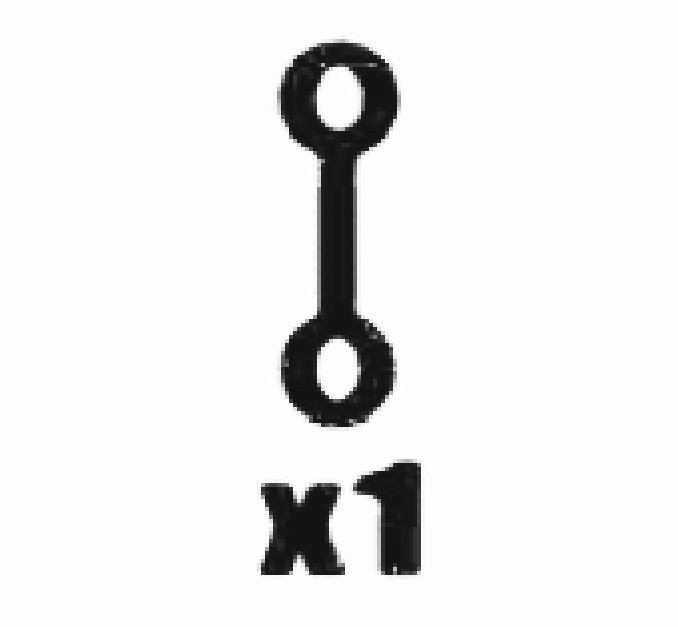

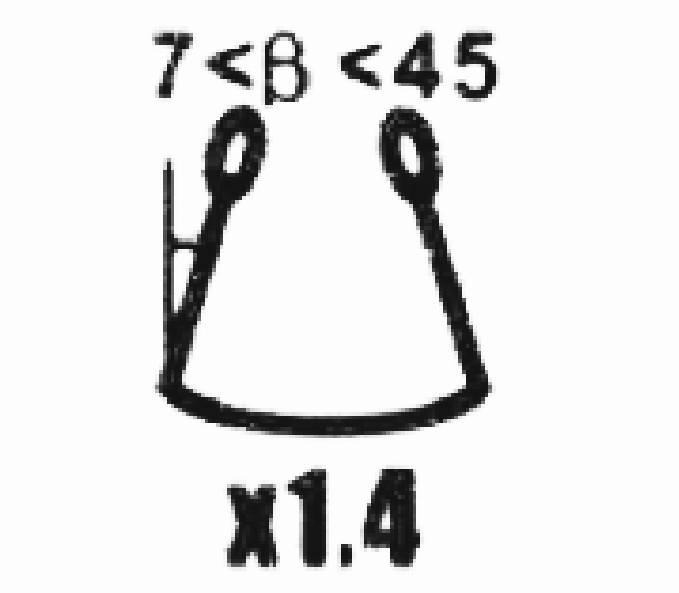

| Colour | WLL(t) | Width(mm) | Vertical Lifting(kg) | Choked Lifting(kg) | Basket Lifting(kg) | |||
| 5:1,6:1 | 7:1,8:1 |  |  |  |  |  | ||

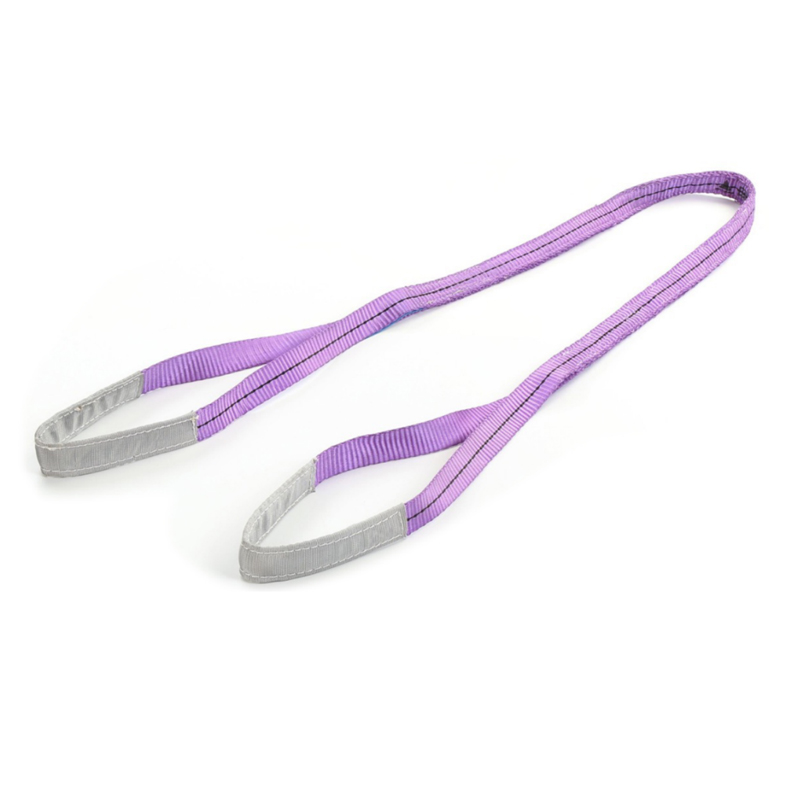

| Violet | 1 | 1"/25mm | 30 | 1000 | 800 | 2000 | 1400 | 1000 |

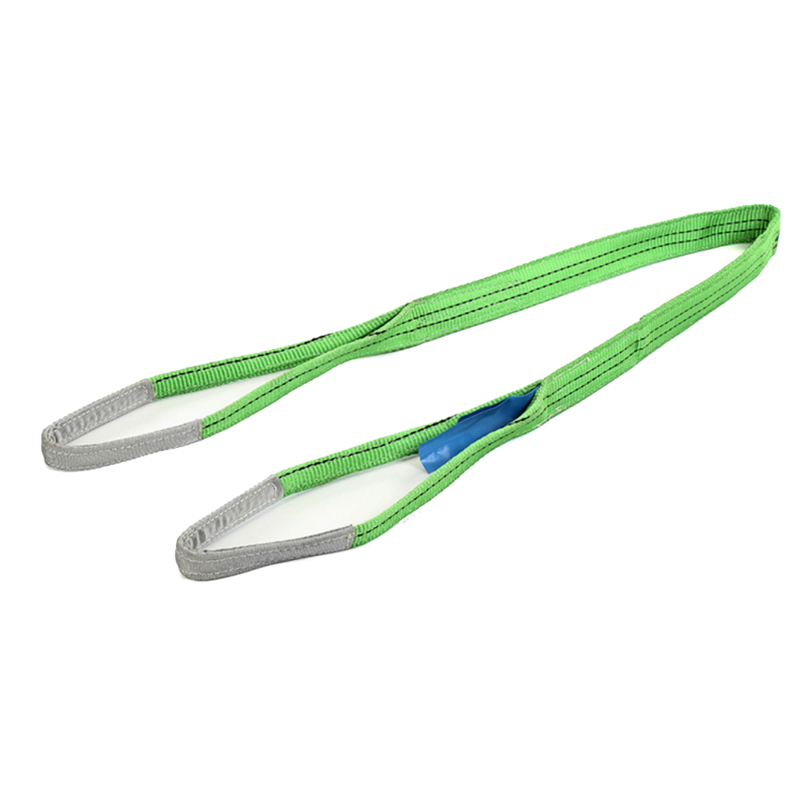

| Green | 2 | 2"/50mm | 60 | 2000 | 1600 | 4000 | 2800 | 2000 |

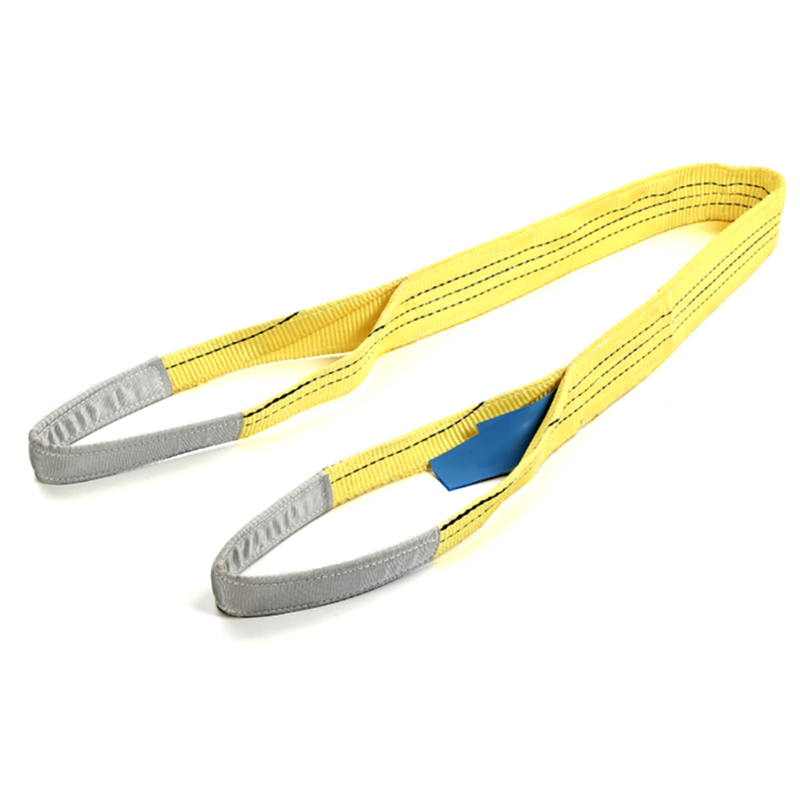

| Yellow | 3 | 3"/75mm | 90 | 3000 | 2400 | 6000 | 4200 | 3000 |

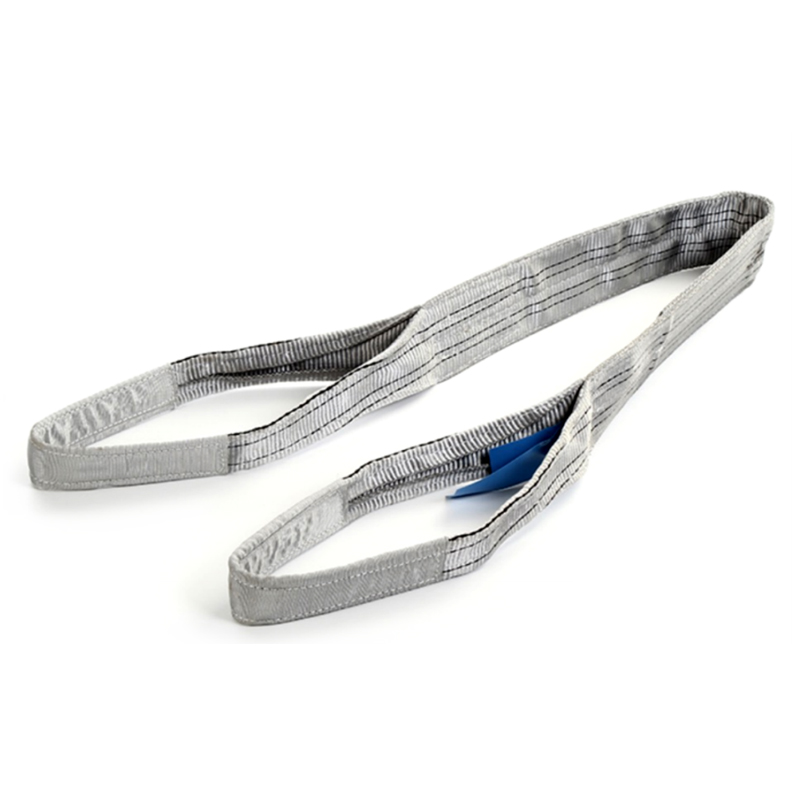

| Grey | 4 | 4"/100mm | 120 | 4000 | 3200 | 8000 | 5600 | 4000 |
| Red | 5 | 5"/125mm | 150 | 5000 | 4000 | 10000 | 7000 | 5000 |

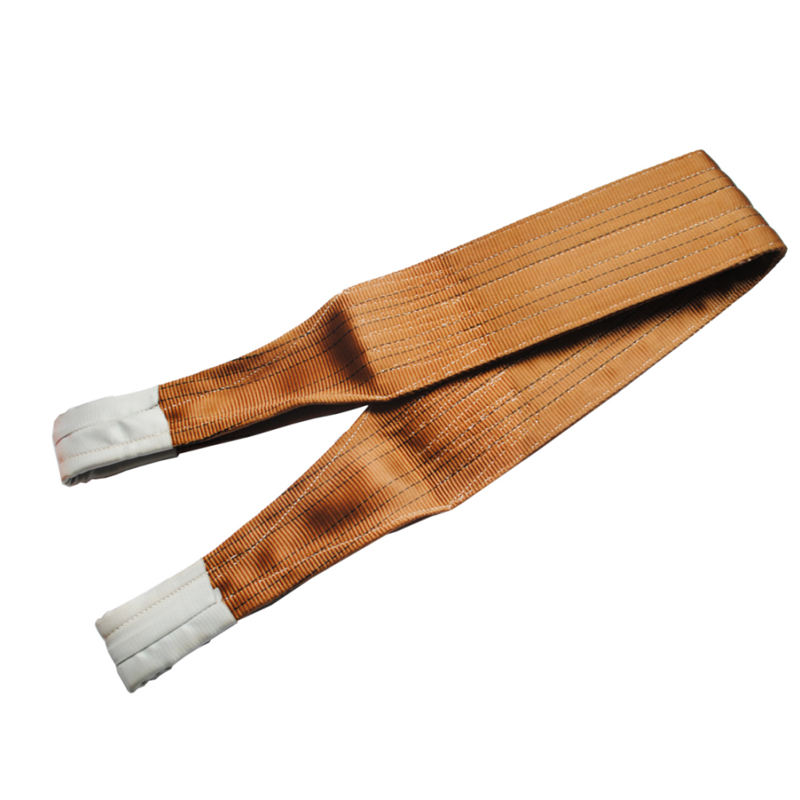

| Brown | 6 | 6"/150mm | 180 | 6000 | 4800 | 12000 | 8400 | 6000 |

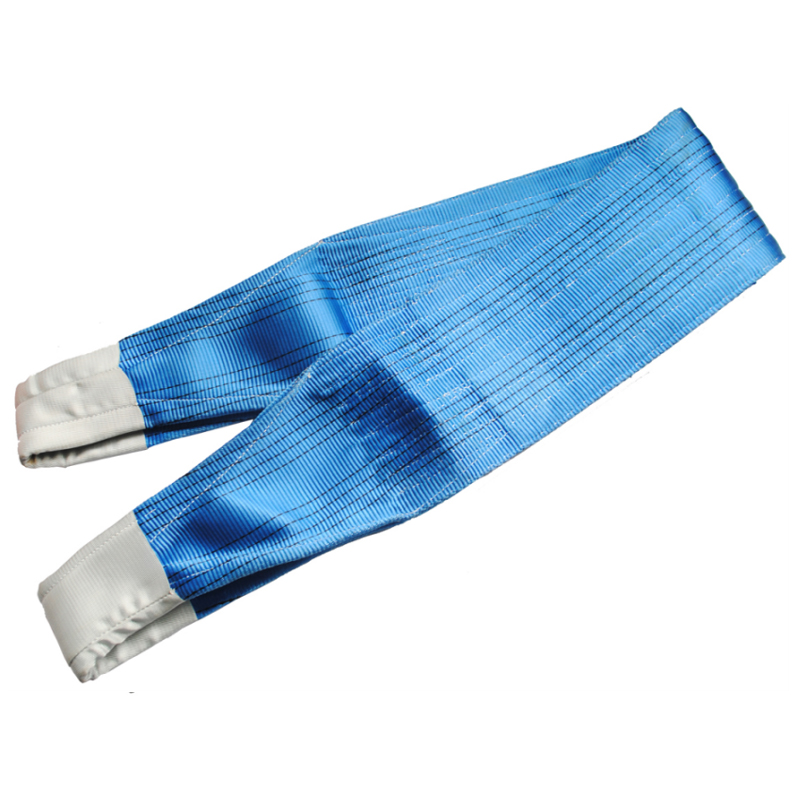

| Blue | 8 | 8"/200mm | 240 | 8000 | 6400 | 16000 | 11200 | 8000 |

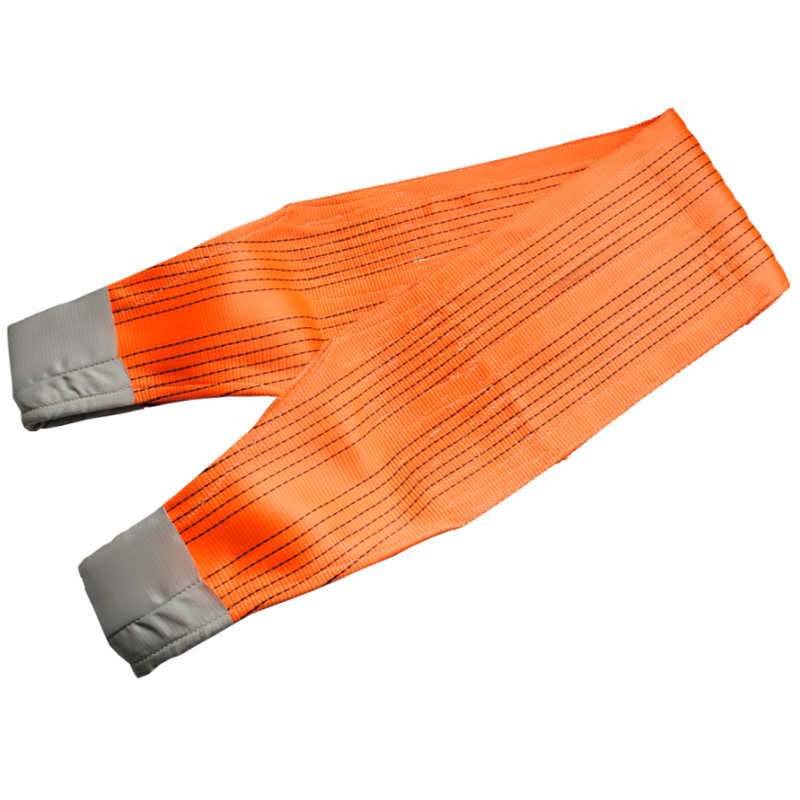

| Orange | 10 | 10"/250mm | 300 | 10000 | 8000 | 20000 | 14000 | 10000 |
| Orange | 12 | 12"/300mm | 300 | 12000 | 9600 | 24000 | 16800 | 12000 |
