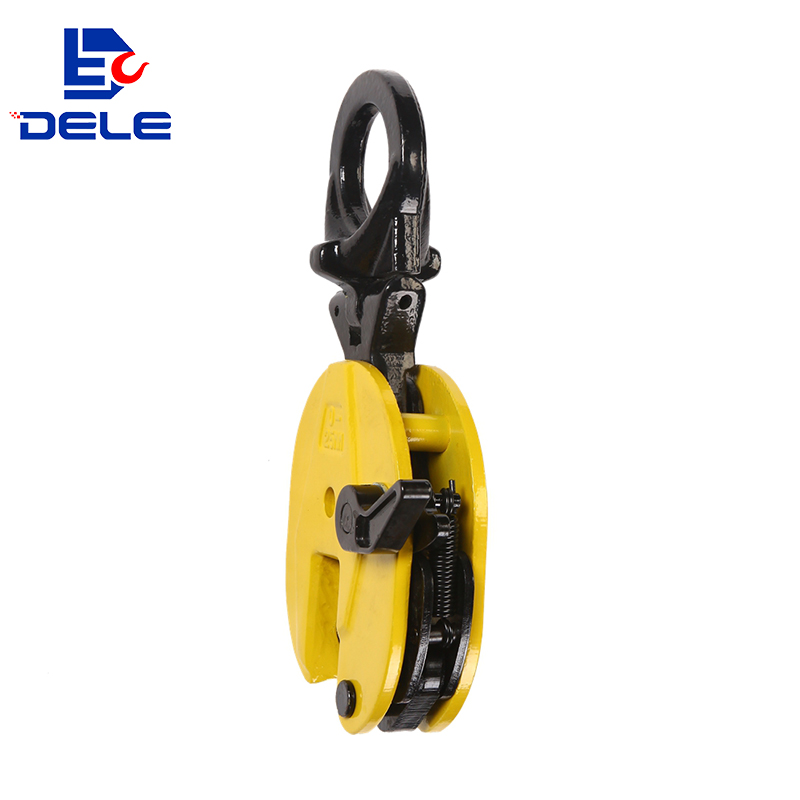

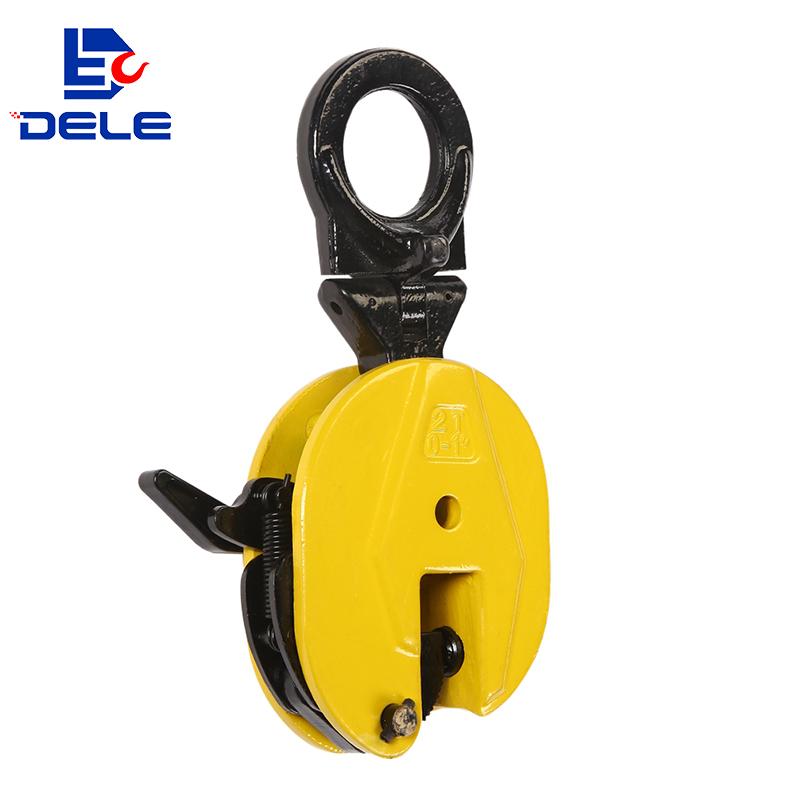

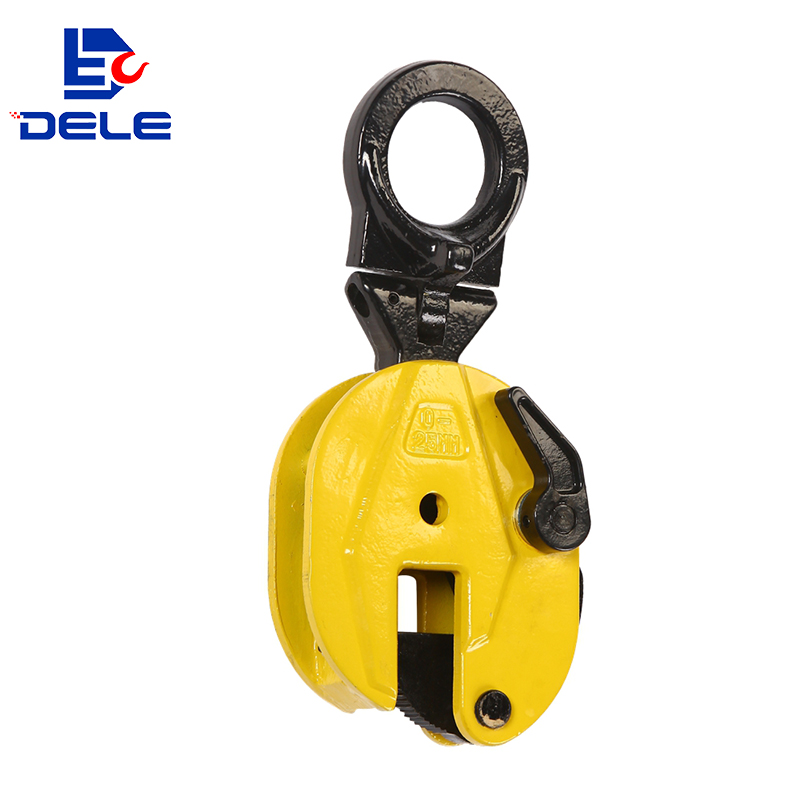

QC-TYPE MULTI-FUNCTION CLAMP
WORKING LOAD LIMIT WLL 0.5TON TO 5TON

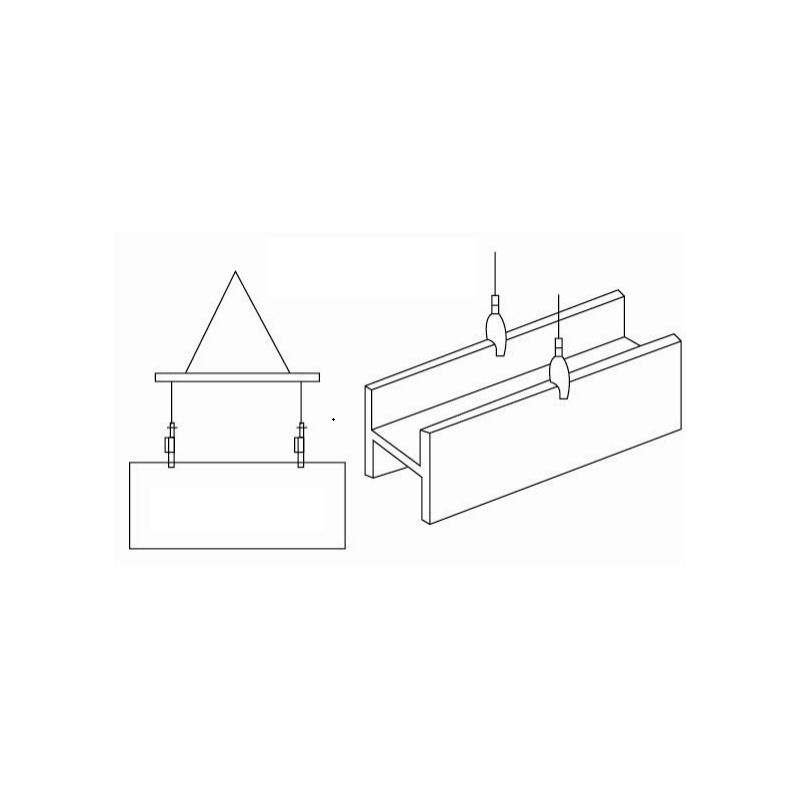

●For lifting and transporting of steel plates and structures from all positions (horizontal,vertical and sidelong).
●Articulated lifting shackle.
●Clamps are equipped with a safety mechanism,ensuring the clamp does not slip when lifting force is applied and when load is beng lowered.
●The main body and the shackle are made of die-forged special alloy steel, which are optimally tempered for maximum strength and durability.
●High-frequency quenching of die-forged special alloy steels gives greater durablity to the cam.
| Model | QC0.5 | QC1 | QC2 | QC3 | QC5 | ||
| Capacity | (t) | 0.5 | 1 | 2 | 3 | 5 | |
| Running test load | (KN) | 7.35 | 14.7 | 29.4 | 44.1 | 73.5 | |
| Max.Jaw Opening | (mm) | 15 | 20 | 25 | 30 | 50 | |
| Net weight | (kg) | 2 | 4.8 | 6.8 | 15 | 23 | |
| Volume | (cm) | 23*5*11.5 | 37*7*16 | 38*8*19 | 45*11*22 | 46*11*22 | |
| Dimensions(mm) | A | 30 | 48 | 68 | 74 | 80 | |
| B | 43 | 63 | 76 | 85 | 90 | ||
| C | 34.5 | 51 | 59 | 56 | 65 | ||
| D | 0-17 | 0-22 | 0-27 | 0-32 | 0-52 | ||
| E | 103 | 138 | 164 | 193 | 240 | ||
| F | 10 | 12 | 16 | 20 | 22 | ||
| G | 212 | 294 | 370 | 418 | 450 | ||
| H | 36 | 50 | 52 | 78 | 88 | ||
