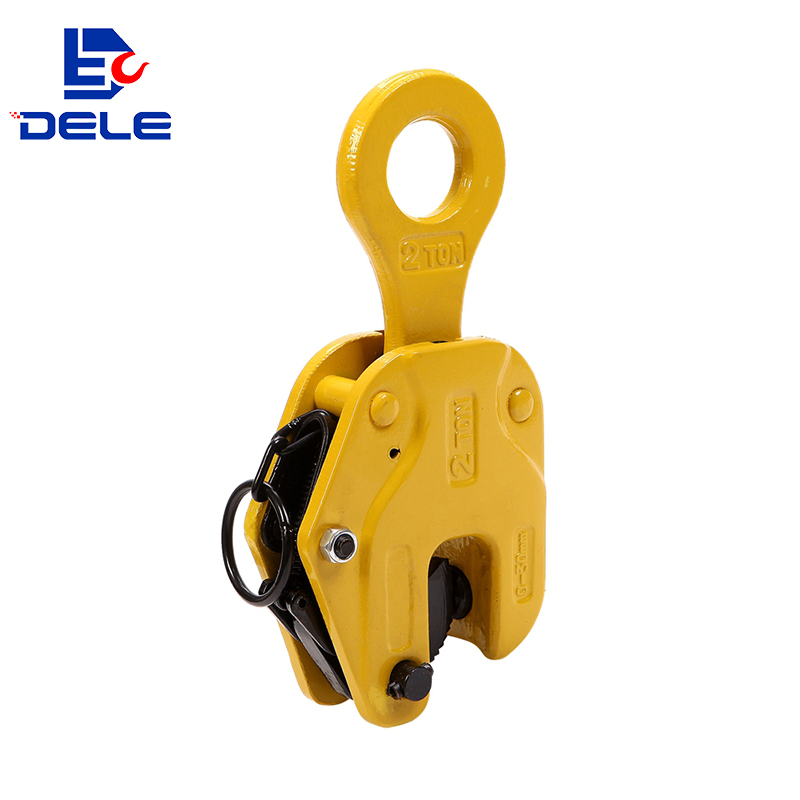

E-TYPE VERTICAL LIFTING CLAMP
WORKING LOAD LIMIT(WLL)1-5T

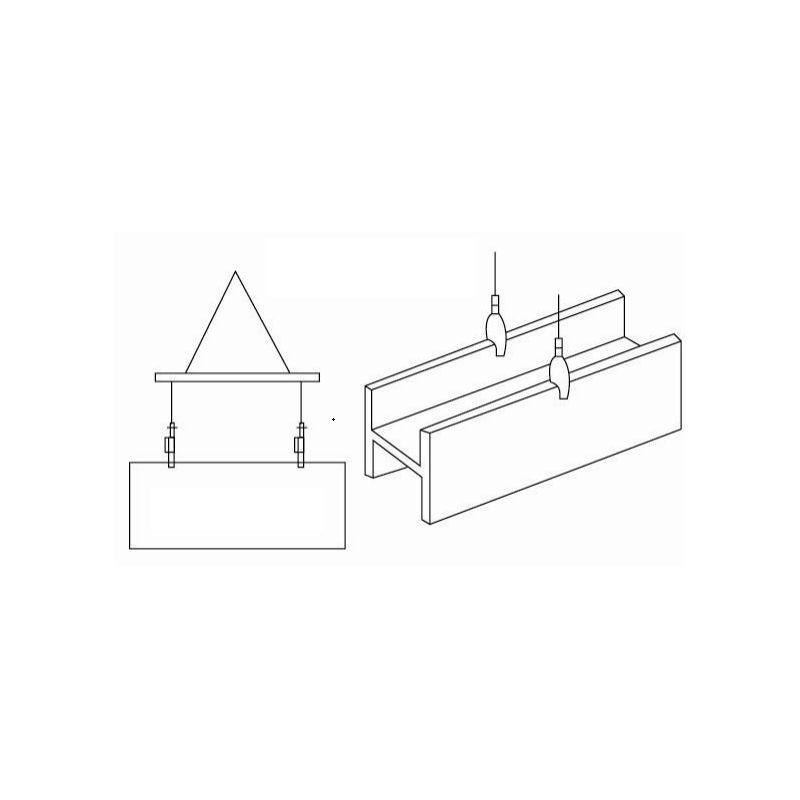

●Standard design clamp for vertical lifting of steel plates and steel structures.
●The spring-loaded tightening lock mechanism assures a positive initical clamping force.
●Clamps are equipped with a safety mechanism,ensuring the clamp does not slip when lifting force is applied and when load is beng lowered.
●The main body and the shackle are made of die-forged special alloy steel,which are optimally tempered for maximum strength and durability.
●High-frequency quenching of die-forged special alloy steels gives greater durablity to the cam.
| Model | Capacity(t) | Running test load (KN) | Opening size(mm) | Dimensions(mm) | Net weight （KG） | |||||||||
| A | B | C | D | E | F | G | H | I | J | |||||
| E -1 | 1 | 19.6 | 0-22 | 24 | 36 | 125 | 50 | 24 | 220-260 | 30 | 156 | 52 | 14 | 3.6 |
| E- 2 | 2 | 39.2 | 0-30 | 35 | 45 | 155 | 60 | 30 | 250-295 | 38 | 190 | 60 | 18 | 6 |
| E -3 | 3 | 58.8 | 0-35 | 40 | 50 | 175 | 60 | 35 | 296-360 | 40 | 226 | 68 | 20 | 9.2 |
| E- 5 | 5 | 98 | 0-50 | 50 | 58 | 218 | 65 | 42 | 350-420 | 60 | 270 | 76 | 22 | 16.5 |
