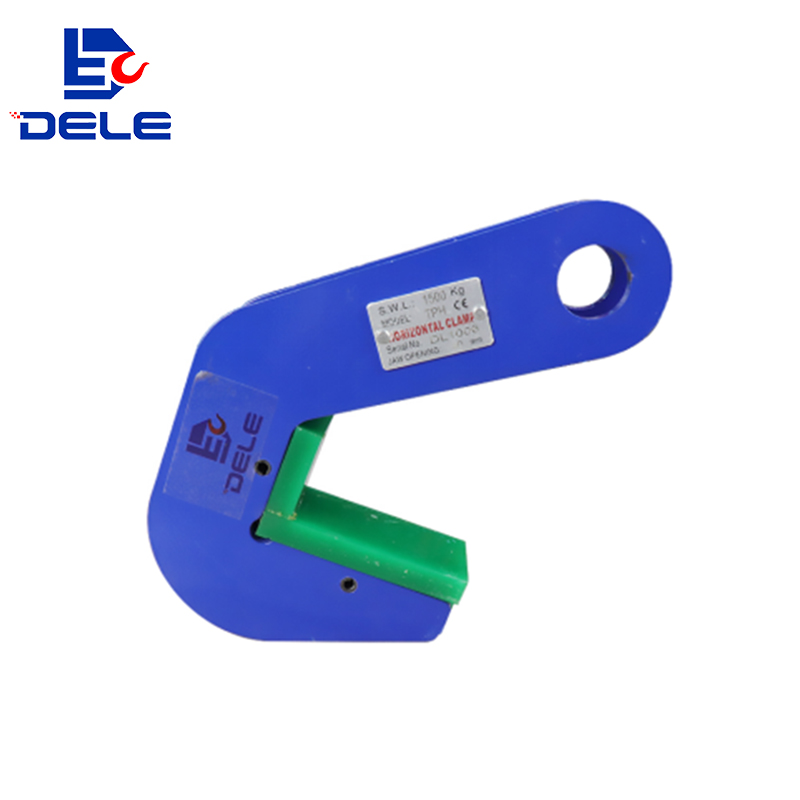

DPH PIPE LIFTING CLAMP
●For horizontal lifting and transporting of steel and concrete pipes.
●Compact shape and relatively low own weight with a high lifting capacity.
●The surface is equipped with“special”plastic.
●The DPH will be delivered per pair.
●Plastic cover is easy to change.

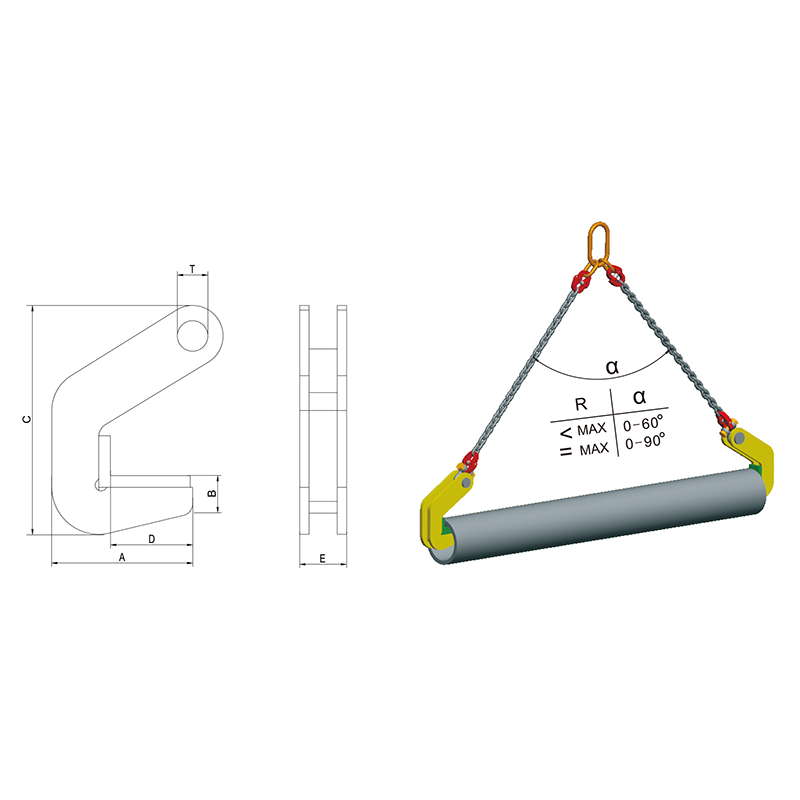

| Model | WLL(t) per pair | Jaw Opening(mm) | Dimensions(mm) | Net Weight(kg) | |||||
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | T(mm) | ||||
| DPH-1.5 | 1.5 | 40 | 122 | 30 | 195 | 70 | 39 | Φ25 | 2.2 |
| DPH-3 | 3.0 | 40 | 122 | 30 | 195 | 70 | 39 | Φ25 | 2.6 |
| DPH-4 | 4.0 | 50 | 122 | 30 | 215 | 70 | 39 | Φ28 | 2.9 |
| DPH-6 | 6.0 | 50 | 122 | 30 | 215 | 70 | 39 | Φ28 | 3.5 |
| DPH-8 | 8.0 | 70 | 126 | 30 | 240 | 70 | 39 | Φ28 | 3.8 |
| DPH-12 | 12.0 | 70 | 160 | 30 | 260 | 90 | 45 | Φ36 | 6.7 |
| DPH-16 | 16.0 | 70 | 168 | 30 | 272 | 90 | 50 | Φ37 | 9.4 |
| DPH-18 | 18.0 | 70 | 183 | 30 | 292 | 90 | 50 | Φ37 | 13 |
| DPH-20 | 20.0 | 70 | 220 | 30 | 333 | 90 | 50 | Φ45 | 19.3 |
