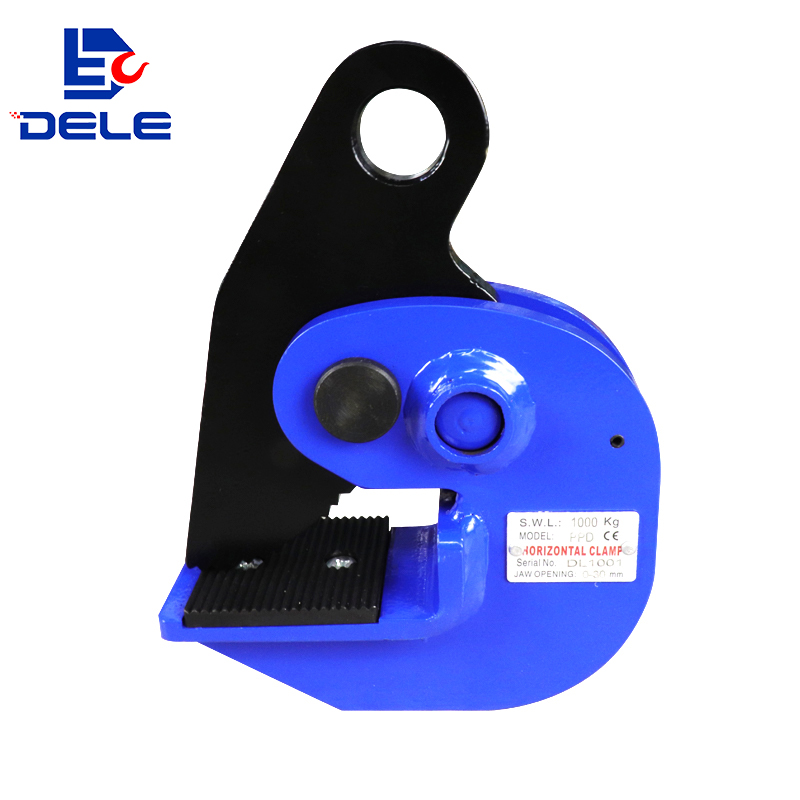

DPD HORIZONTAL LIFTING CLAMP
●Sultable for lifting and transport of steel plates,constructlon and profiled bar in horizontal position.
●Manufactured from high quality carbon steel.
●Avoid snatch or shock loading.

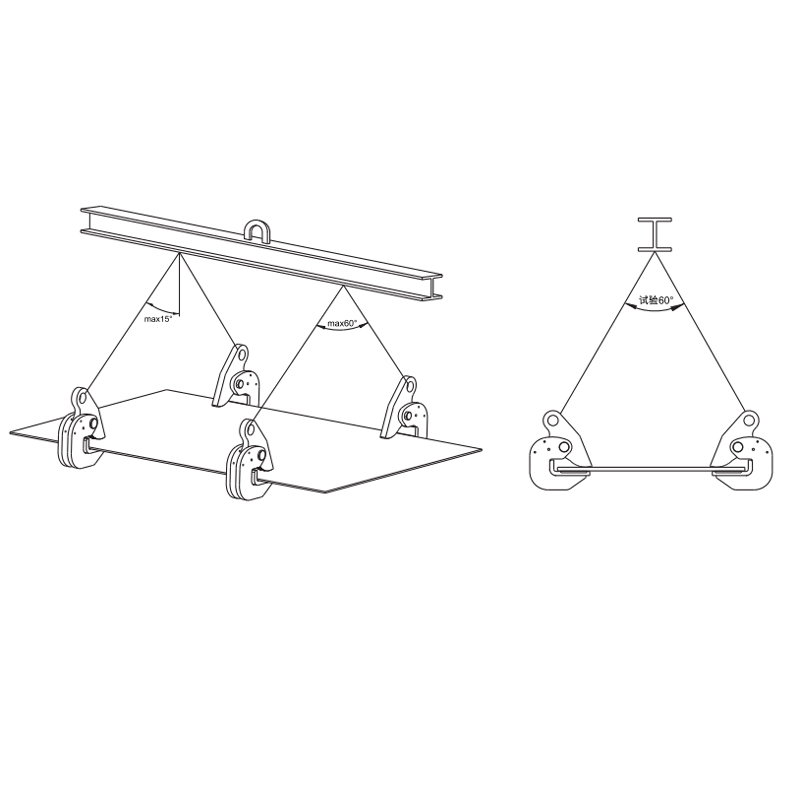

●The working load limit is the maximum load that the clamp is authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.
●The screw jaw of the body can be changed,also have a safety button.
| Model | WLL(t)per pair | Jaw Opening(mm) | Net Weight(kg) |
| DPD-0.8 | 0.8 | 0-25 | 2.5 |
| DPD-1 | 1.0 | 0-30 | 3.5 |
| DPD-1.6 | 1.6 | 0-30 | 4.0 |
| DPD-2 | 2.0 | 0-40 | 5.0 |
| DPD-3 | 3.0 | 0-45 | 6.0 |
| DPD-4 | 4.0 | 0-50 | 6.5 |
| DPD-5 | 5.0 | 0-55 | 7.5 |
| DPD-6 | 6.0 | 0-65 | 10.5 |
| DPD-8 | 8.0 | 0-100 | 22.0 |
| DPD-10 | 10.0 | 0-125 | 33.0 |
