DMS HORIZONTAL LIFTING CLAMP
●Working load limit(WLL)0.5-10T.

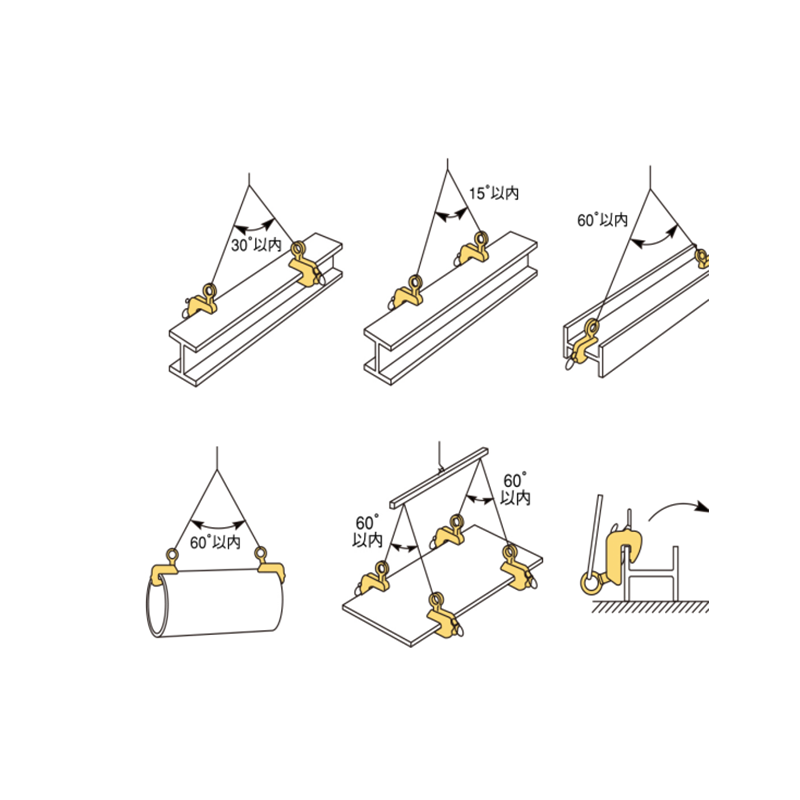

●Ideal type hanging two points longitudinal direction next to the flat steel plate (H type, I type, T-tpe, L- shaped steel, ete,) and structural iron (horizontal) hanging clamp, shaped steel.
●A lock mechanism spring tightening, even at no load condition, clarmps grip securely.
●Mechanism gripping force is increased more strongly in proportion to the lifting load.
●By the high-frequency hardening, cam distinguished durable die forging of special alloy steel.
| Model | WLL(t)per pair | Jaw opening(mm) | Net Weight(kg) | ||
| DMS-0.5 | 0.5 | 0-20 | 3.2 | ||
| DMS-1 | 1.0 | 0-25 | 5.3 | ||
| DMS-2 | 2.0 | 0-30 | 8 | ||
| DMS-3 | 3.0 | 0-38 | 9.7 | ||
| DMS-5 | 5.0 | 0-40 | 18.7 | ||
| DMS-10 | 10.0 | 10-70 | 35 | ||
