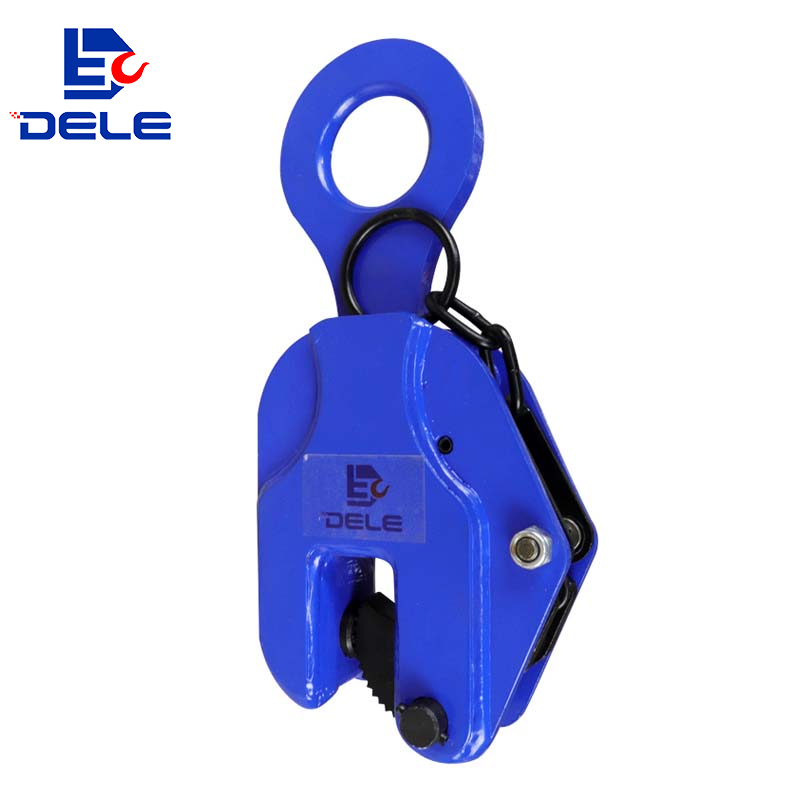

DVC VERTICAL LIFTING CLAMP

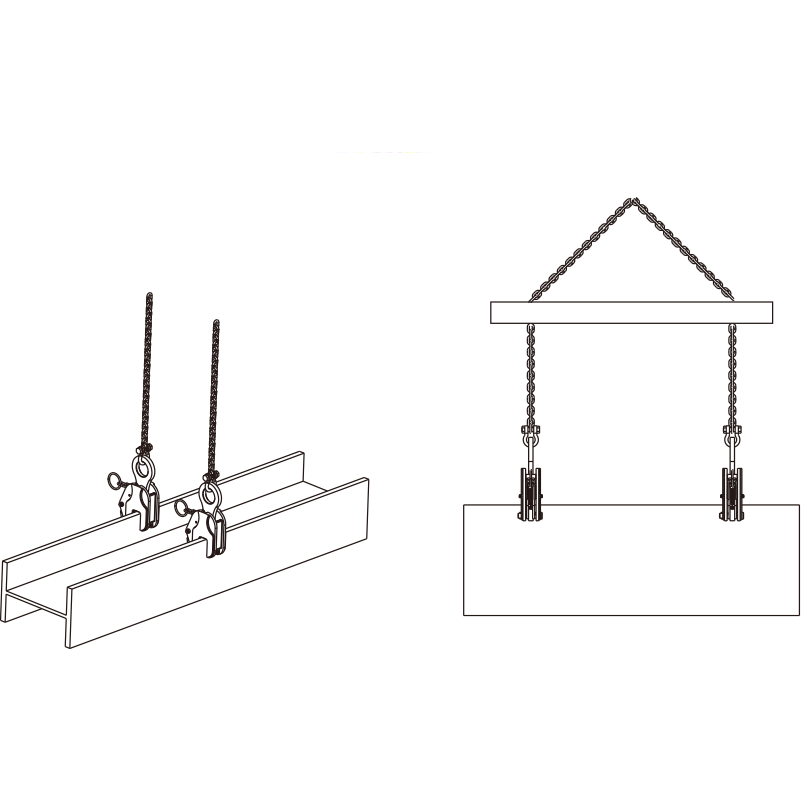

●Standard design clamp for vertical lifting of steel plates and steel structures.
●The spring- loaded tightening lock mechanism assures a positive initial clamping force.
●Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
●The clamp is locked in closed as well as in open position.
●Manufaetured from high quality carbon steel.
●High- frequeney quenching of die- forged special alloy steels gives greater durability to the cam.
| Model | WLL (t) per pair | Jaw Opening(mm) | Net Weight(kg) |
| DVC-0.8 | 0.8 | 0-16 | 2.8 |
| DVC-1 | 1.0 | 0-22 | 3.6 |
| DVC-2 | 2.0 | 0-30 | 5.5 |
| DVC-3 | 3.0 | 0-40 | 10 |
| DVC-5 | 5.0 | 0-50 | 17 |
| DVC-8 | 8.0 | 0-60 | 26 |
| DVC-10 | 10.0 | 0-90 | 32 |
