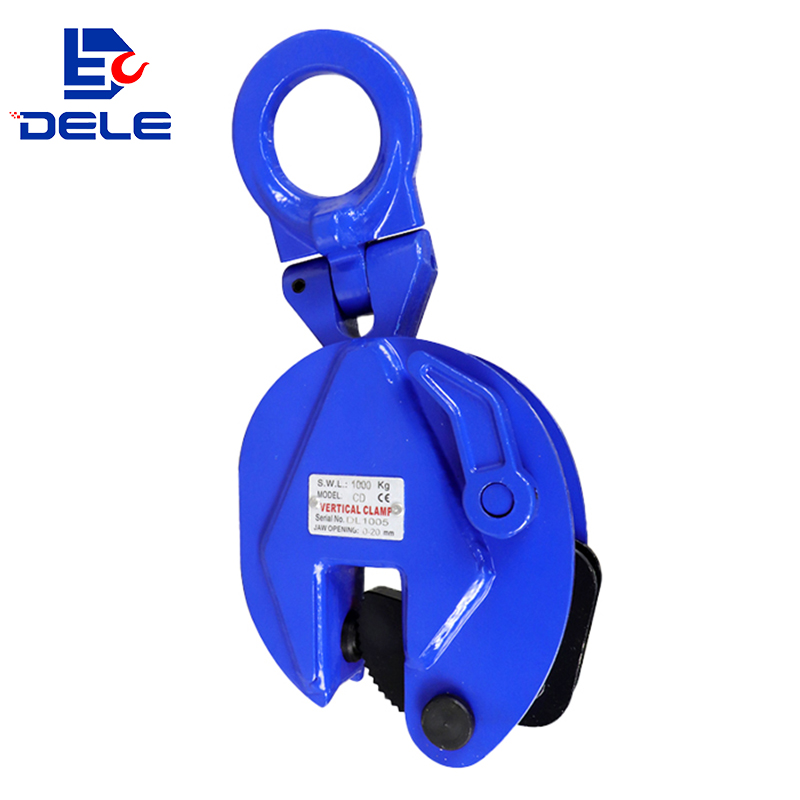

DLD UNIVERSAL LIFTING CLAMP
●Articulated lifting shackle.
●Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
●The clamp is locked in closed as well as in open position.
●Manufactured from high quality carbon steel.
| Model | WLL(t) per pair | Jaw Opening(mm) | Net Weight(kg) |
| DLD-0.8 | 0.8 | 0-15 | 2.0 |
| DLD-1 | 1.0 | 0-20 | 5.0 |
| DLD-2 | 2.0 | 0-25 | 7.3 |
| DLD-3 | 3.0 | 0-30 | 15.0 |
| DLD-5 | 5.0 | 0-50 | 23.0 |
| DLD-8A | 8.0 | 0-45 | 37.0 |
| DLD-8B | 8.0 | 40-80 | |
| DLD-12 | 12.0 | 50-100 | 59.5 |
