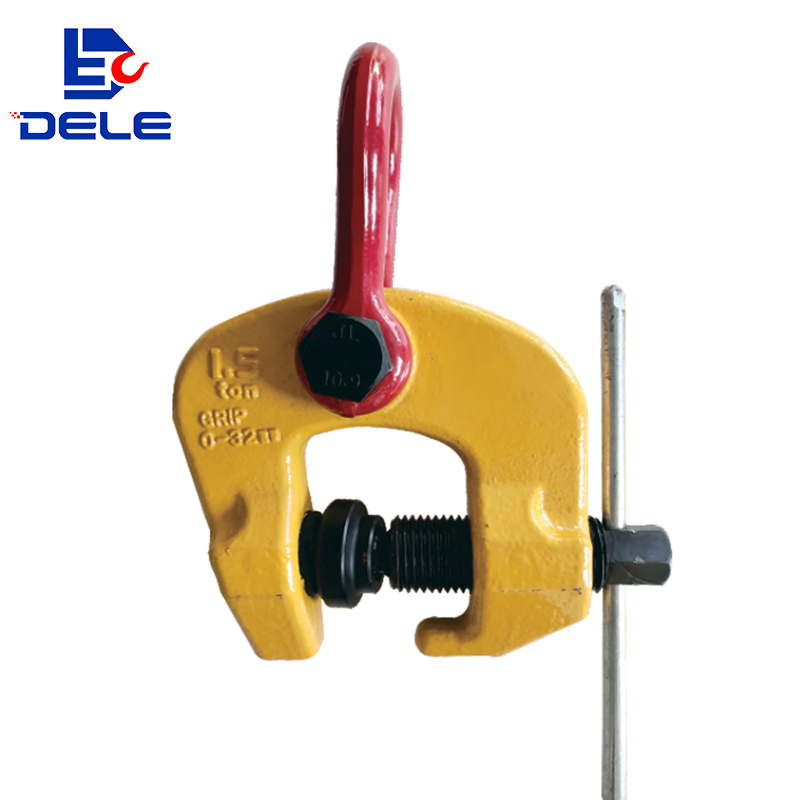

SCC SCREW CAM CLAMP
◆For lifting,turing and hanging of steels that are spherical or curved.
◆Manufactured from high quality carbon steel.
◆Excellent vibration resistance when loading.

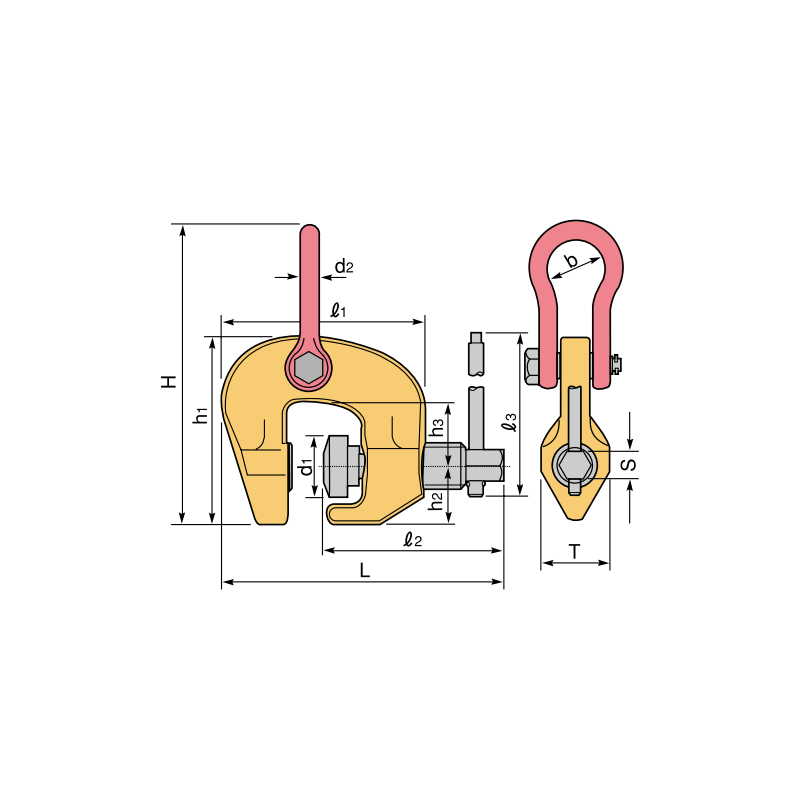

| Model | WLL(t) | Jaw Opening (mm) | L(mm) | L1(mm) | L2(mm) | L3(mm) | H(mm) | h1(mm) | h2(mm) | h3(mm) | d1(mm) | d2(mm) | b(mm) | T(mm) | S(mm) | Gross Weight(kg) | Net Weight(kg) |
| SCC0.5 | 0.5 | 0-28 | 156 | 104 | 89 | 60 | 113 | 76 | 16 | 27 | 26 | 10 | 17 | 30 | 14 | 1 | 0.8 |
| SCC0.75 | 0.75 | 0-22 | 167 | 135 | 120 | 190 | 201 | 125 | 38 | 44 | 42 | 12 | 38 | 46 | 21 | 3.2 | 3 |
| SCC1.5 | 1.5 | 0-32 | 187 | 154 | 135 | 190 | 229 | 143 | 39 | 52 | 42 | 16 | 45 | 46 | 21 | 4.3 | 4 |
| SCC3 | 3 | 0-50 | 224 | 190 | 165 | 240 | 265 | 165 | 45 | 60 | 49 | 19 | 50 | 54 | 21 | 6.5 | 6 |
| SCC6 | 6 | 0-75 | 291 | 255 | 215 | 240 | 365 | 214 | 54 | 76 | 49 | 19 | 50 | 54 | 21 | 19 | 18 |
