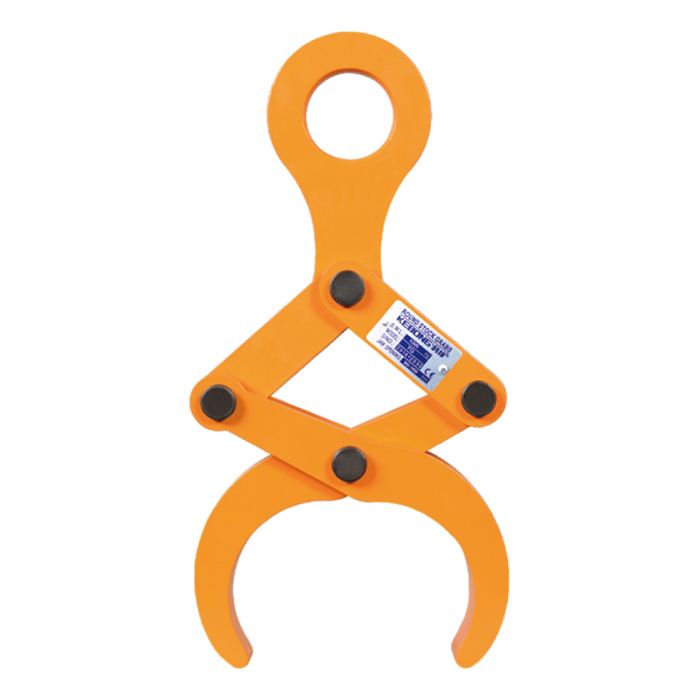

DYG ROUND STOCK GRABS
Working load limit(WLL)0.5-5T
●For horizontal lifting and transporting of steel and concrete pipes.
●Designed to pick up tubes,pipes and rolls or similar round stock material with a diameter of up to 320mm.
●They are extremely easy and simple to use and make for safe lifting.
●Available with automatic open/close device.
| Model | WLL(t) per pair | Jaw Opening(mm) | Net Weight(kg) | |||||
| DYG-0.5 | 0.5 | 50-100 | 3.2 | |||||
| DYG-1 | 1.0 | 50-100 | 3.2 | |||||
| DYG-2 | 2.0 | 80-130 | 12.8 | |||||
| DYG-3 | 3.0 | 120-220 | 27.3 | |||||
| DYG-5 | 5.0 | 200-320 | 84.7 | |||||
