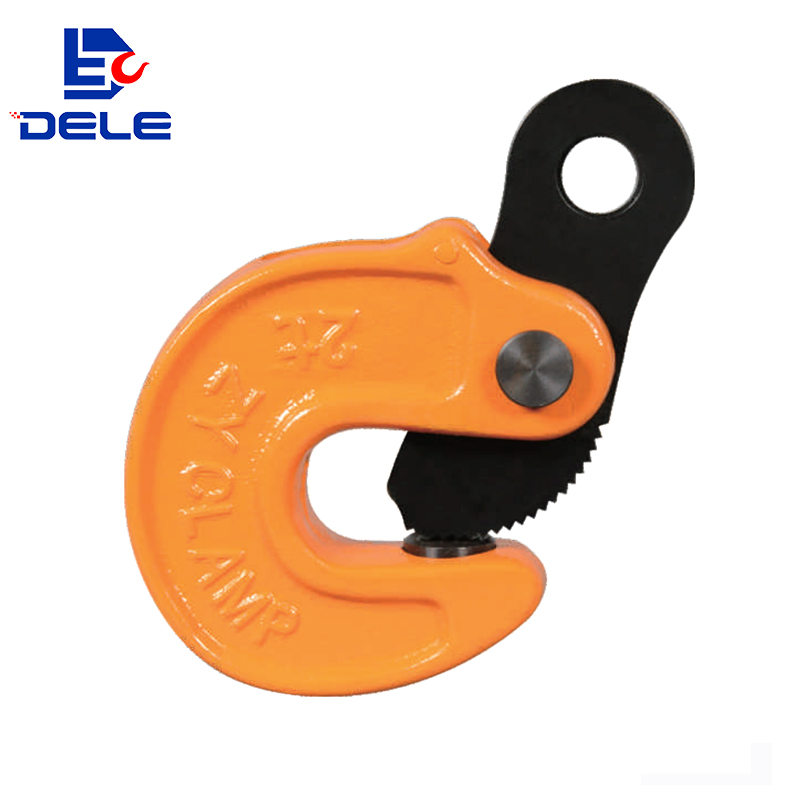

DFM TURN CLAMP
Working load limit (WLL)1-10T
◆For lifting and turn steel plate.
◆From a mechanics point of view ,these clamps have ideal designs,which are compact,light weight,easy to use.
◆The main body and parts are made from die-forge special alloy steels,which are optimally tempered for maximum strength and durability.

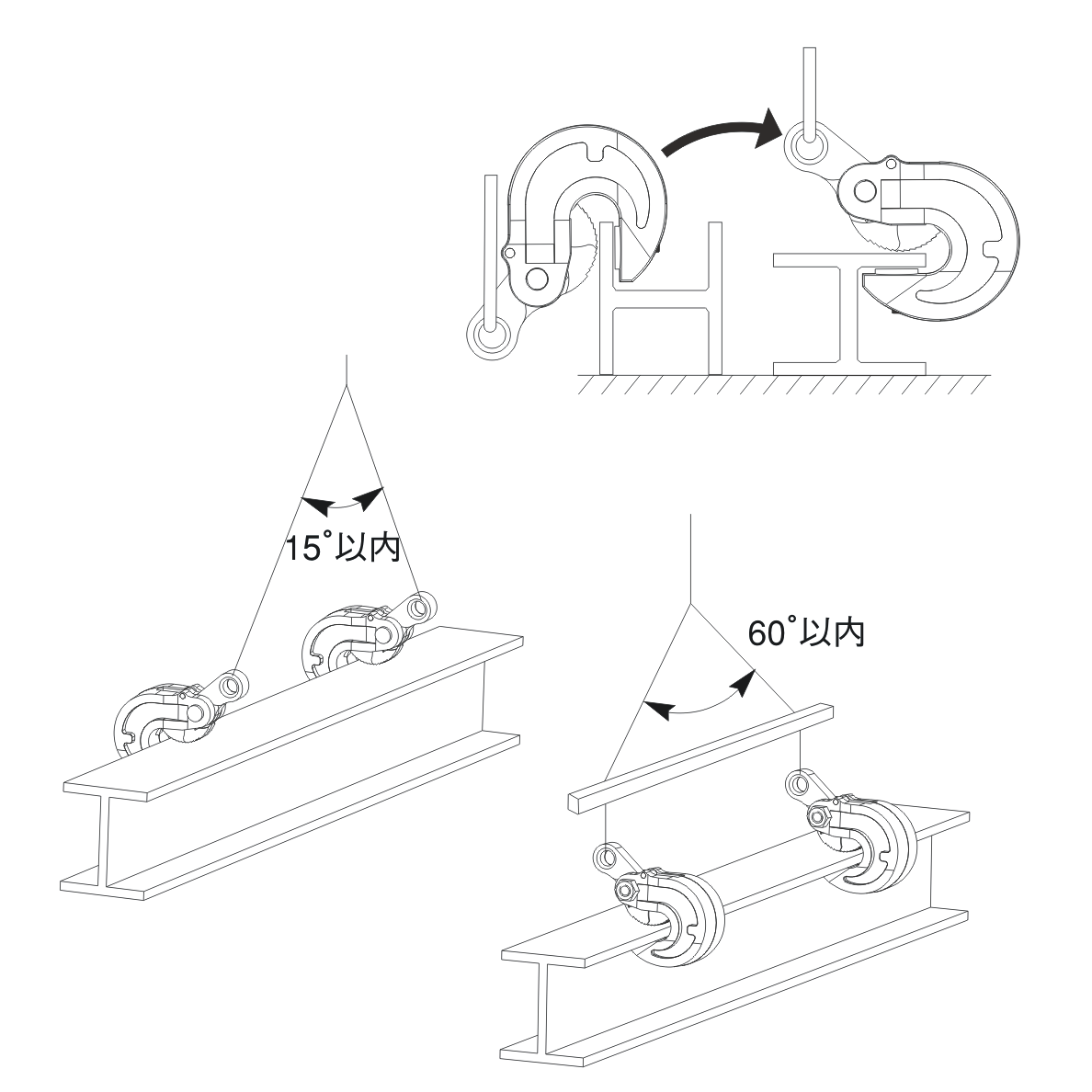

◆The working load limited is applied in one piece,during lifting single could be in use for horizontal lifting and transport.
| Model | WLL(tons)per pair | Jaw Opening(mm) | Weight(kg) |
| DFM1 | 1.0 | 0-15 | 2.5 |
| DFM2 | 2.0 | 0-20 | 5.5 |
| DFM3 | 3.0 | 10-30 | 8 |
| DFM5 | 5.0 | 15-45 | 16.5 |
| DFM10 | 10.0 | 0-60 | 26.9 |
