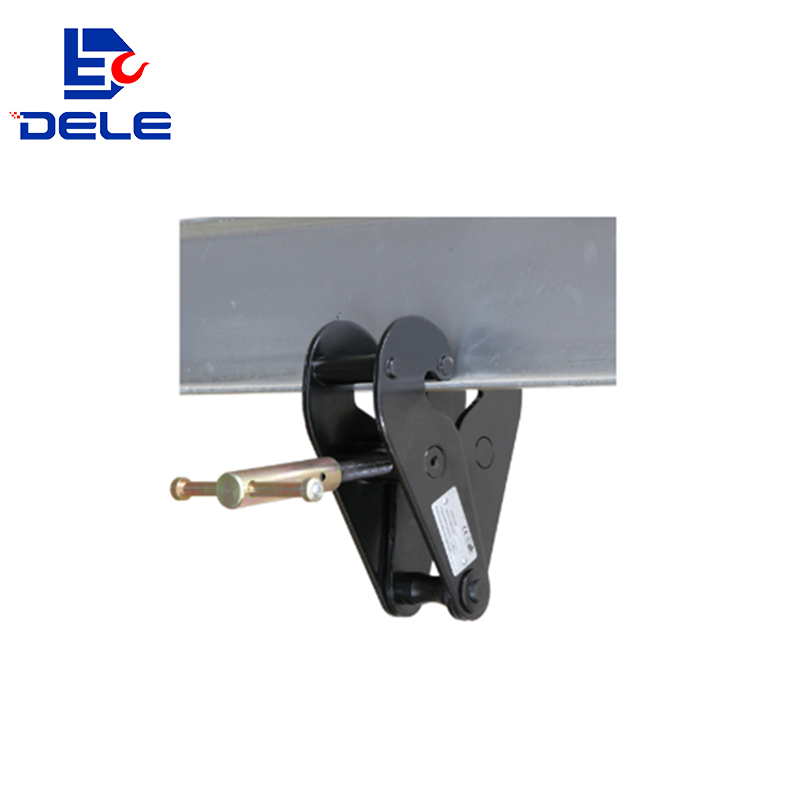

DYC BEAM CLAMP
Bearing range: 1-10 ton.
●For lifting equipment provides a quick and general assembly, slide or carrying purposes due to its wide range of regulatory, making its application very flexible, center screw axis allowed to increase accessory device and safety handle, the center axis of safe and reliable to prevent loosening.
| Model | DYC-1000A | DYC-2000A | DYC-3000A | DYC-5000A | DYC-10000A | |
| Rated capacity | (t) | 1 | 2 | 3 | 5 | 10 |
| Width of steel beam | (mm) | 75-230 | 75-230 | 80-230 | 90-320 | 90-320 |
| Net weight | (kg) | 3.85 | 5 | 9 | 11 | 18 |
| Gross weight | (kg) | 4 | 5.2 | 9.2 | 11.4 | 18.4 |
| Packing size | (cm) | 30.6*7.7*24 | 30.6*8.8*24 | 38.5*11.2*32.7 | 38.5*14.4*32.7 | 38.5*13.8*41 |

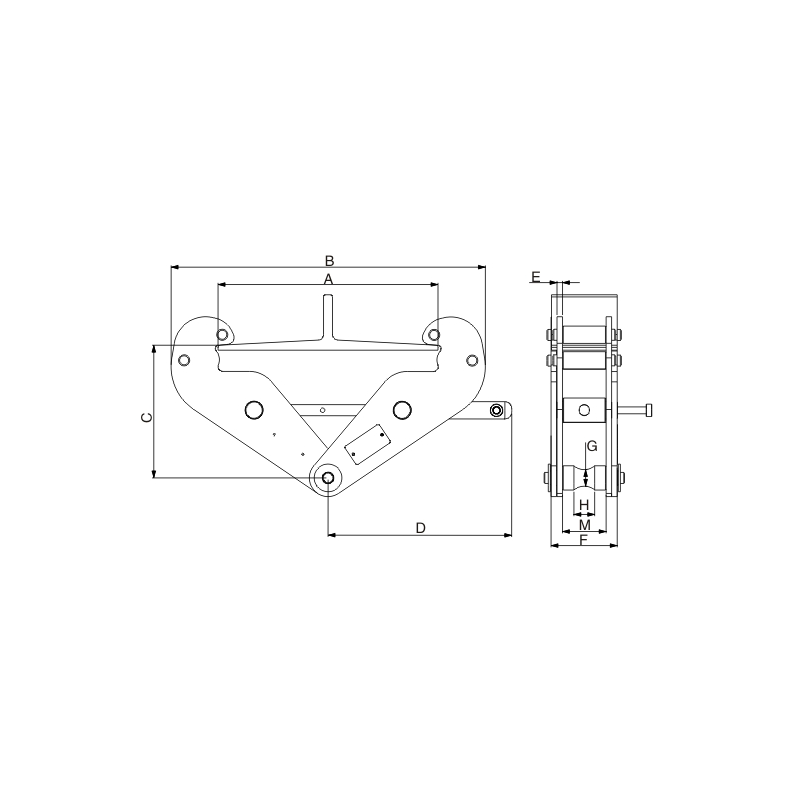

| Dimensions (mm) | A | 75-230 | 75-230 | 80-320 | 90-320 | 90-320 |
| B | 180-375 | 180-375 | 220-498 | 220-498 | 250-514 | |
| C | 80 | 90 | 117 | 127 | 139 | |
| D | 220 | 220 | 271 | 271 | 271 | |
| E | 4 | 6 | 8 | 10 | 12 | |
| F | 61.6 | 73.6 | 95.6 | 107.6 | 115.6 | |
| G | 17 | 20 | 24 | 27 | 36 | |
| H | 25 | 25 | 30 | 35 | 40 | |
| M | 45 | 49 | 63 | 67 | 67 |
