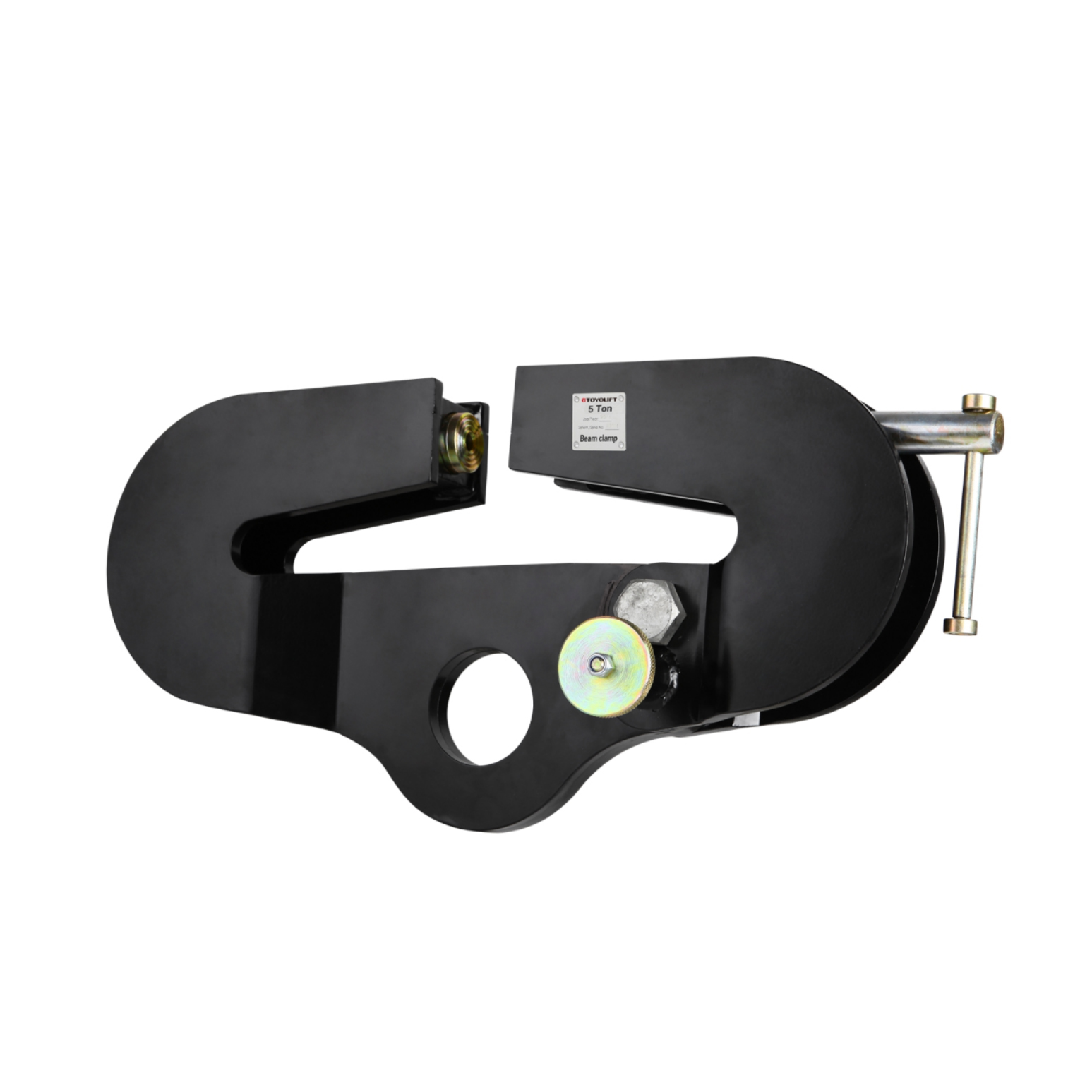

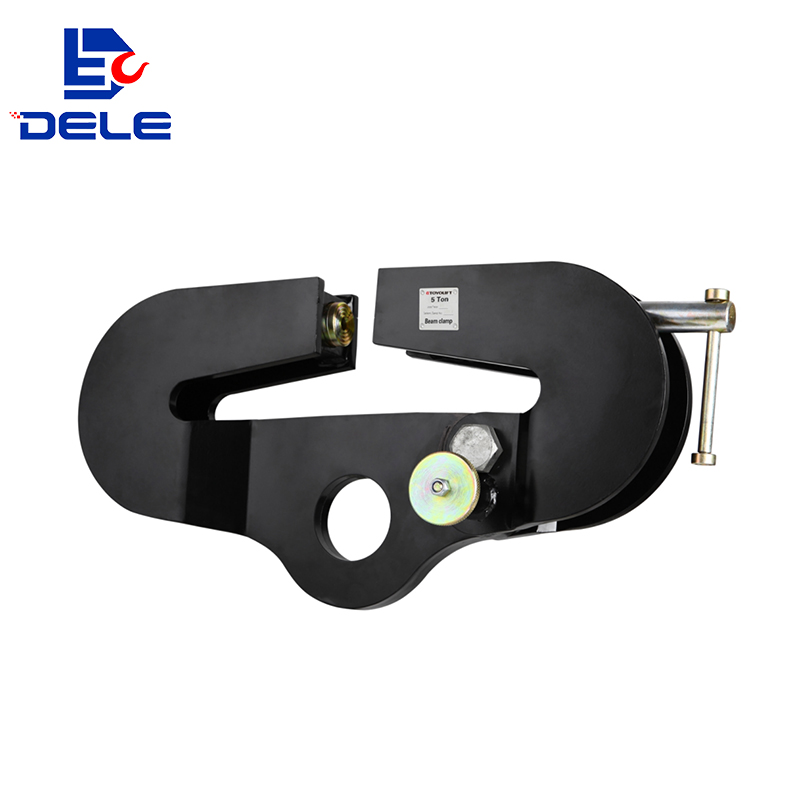

DLBC BEAM CLAMP
Make by Standard: EN13157
Universal beam clamp has been designed not only for verticaluse, but also for side load applications, where conventional clamps are not suitable.
●The Universal beam clamp is suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point.
●lt can be loaded at any angle and eliminates the use of spreaderbeams in various lifting operations.
●Fitted with an adjustable locking mechanism, ensuring secure clamping to the beam.
●Built-in suspension point for low headroom design.
●Light weight design allowing for quick clamping and unclamping.

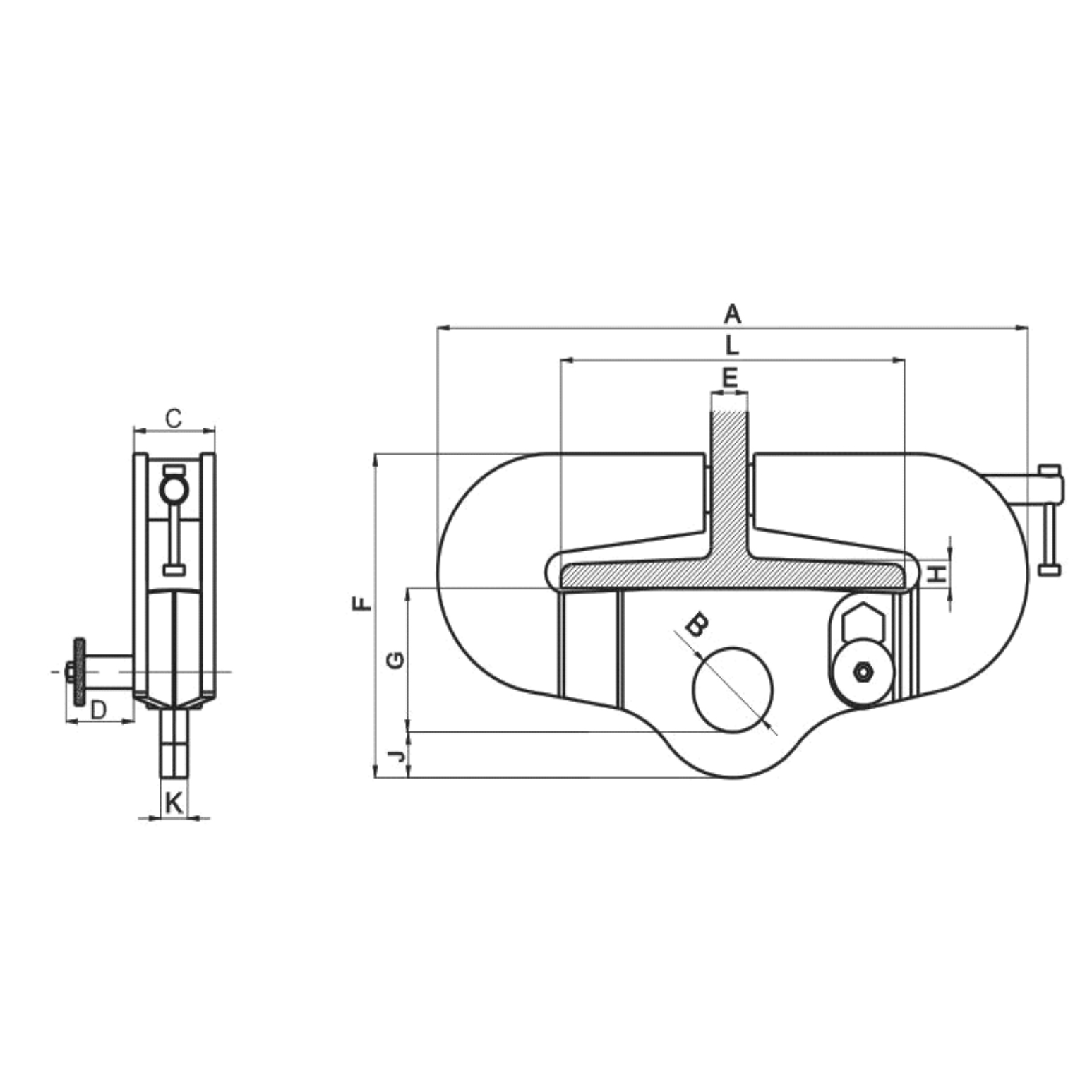

| Model | WLL(t) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | J(mm) | K(mm) | L(mm) | Net Wight(kg) |
| DLBC-2 | 2 | 375 | 58 | 70 | 57 | 32 | 217 | 93 | 25 | 23 | 16 | 125-204 | 10.6 |
| DLBC-3 | 3 | 387 | 60 | 70 | 57 | 32 | 235 | 100 | 25 | 28 | 20 | 125-204 | 12.50 |
| DLBC-5 | 5 | 527 | 70 | 74 | 60 | 32 | 270 | 120 | 25 | 38 | 24 | 125-305 | 20.50 |
| DLBC-10 | 10 | 527 | 70 | 74 | 60 | 32 | 278 | 120 | 25 | 38 | 24 | 125-305 | 24.50 |
