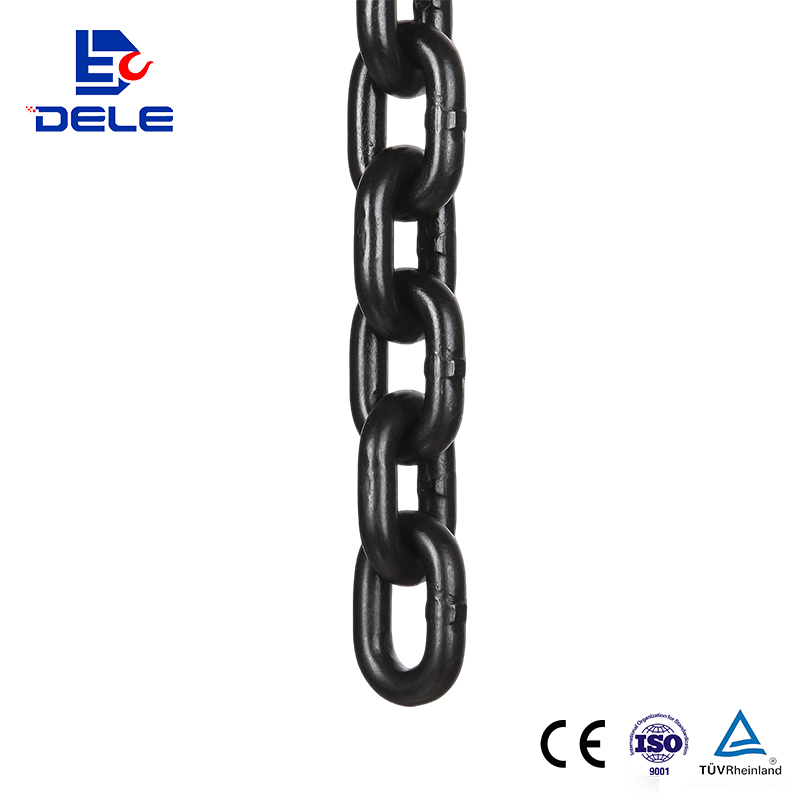

EN818-7 HOSIT CHAIN
●According to the user needs to provide hot-dip zinc,dacromet,metal coated,black,oil and various,surface treatments on the chain.
●Safety Assurance:4-fold safety factor of 2.5 times the proof load.

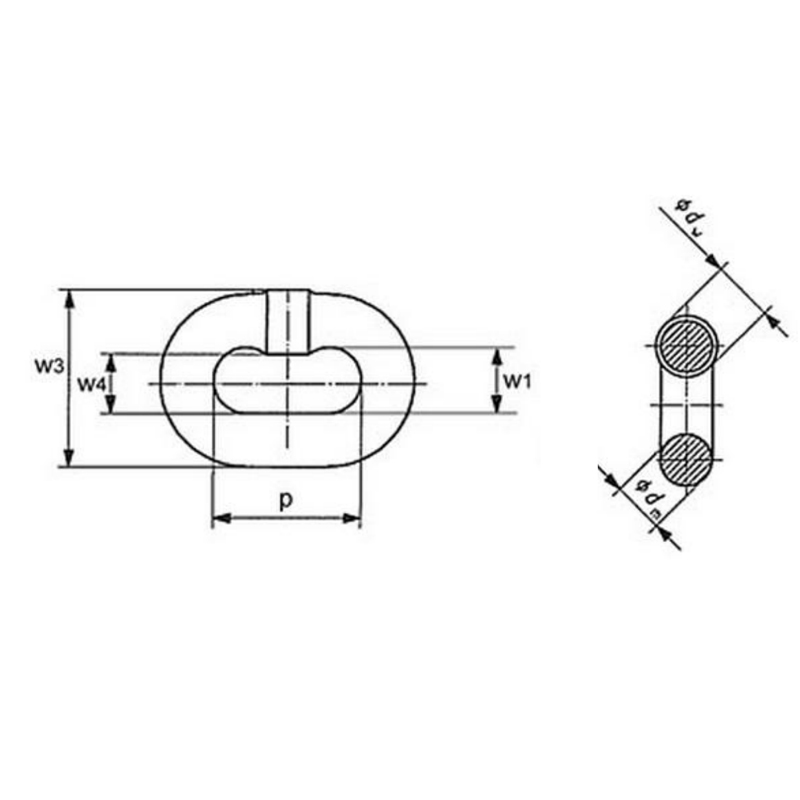

| Size dxp(mm) | Width | Approx Weight(kg/m) | Working Load Limit(t) | Test Load(KN) | Breaking Load min.(KN) | |
| lnside min .w1 | Outside max.w3 | |||||
| 3x9 | 3.8 | 10.2 | 0.21 | 0.28 | 7.1 | 11.3 |
| 4x12 | 5 | 13.6 | 0.35 | 0.5 | 12.6 | 20.1 |
| 5x15 | 6.3 | 17 | 0.54 | 0.8 | 19.6 | 31.4 |
| 6x18 | 7.5 | 20.4 | 0.79 | 1.1 | 27 | 45.2 |
| 6.3x19 | 7.9 | 20.4 | 0.86 | 1.25 | 31.2 | 49.9 |
| 7.1x21 | 9 | 23.8 | 1.07 | 1.5 | 37 | 61.6 |
| 8x24 | 10 | 27.2 | 1.38 | 2 | 48 | 80.4 |
| 9x27 | 11.3 | 30.6 | 1.76 | 2.5 | 63.6 | 102 |
| 10x30 | 12.5 | 34 | 2.2 | 3.2 | 76 | 125 |
| 11.2x34 | 14 | 37.4 | 2.71 | 4 | 98.5 | 158 |
| 12.5x38 | 15.5 | 40.8 | 3.3 | 4.9 | 117 | 196 |
| 13x39 | 16.3 | 44.2 | 3.8 | 5.3 | 128 | 214 |
| 14x42 | 18 | 47.6 | 4.13 | 6.3 | 150 | 250 |
| 16x48 | 20 | 54.4 | 5.63 | 8 | 192 | 320 |
| 18x54 | 21 | 61.2 | 6.6 | 10 | 246 | 410 |
| 20x60 | 25 | 68 | 8.6 | 12.5 | 300 | 500 |
| 22x66 | 28 | 74.8 | 10.2 | 15.3 | 366 | 610 |
