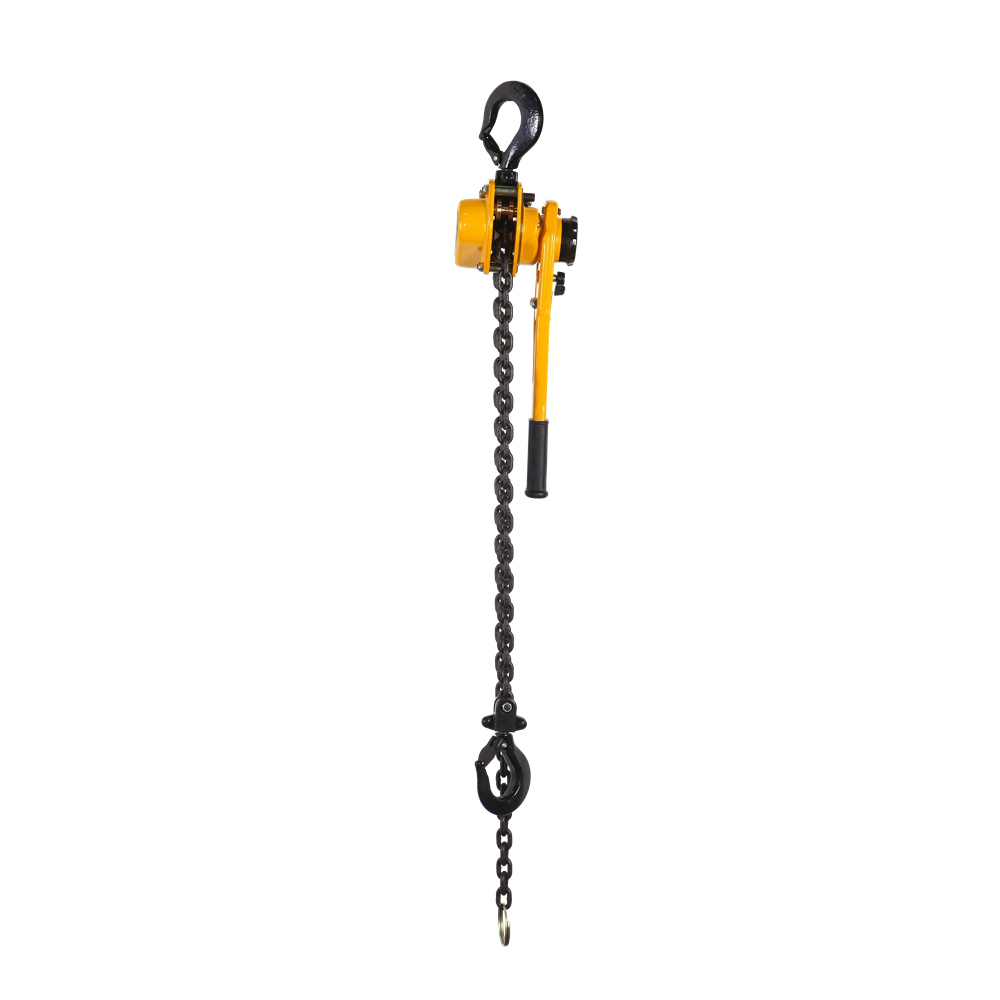

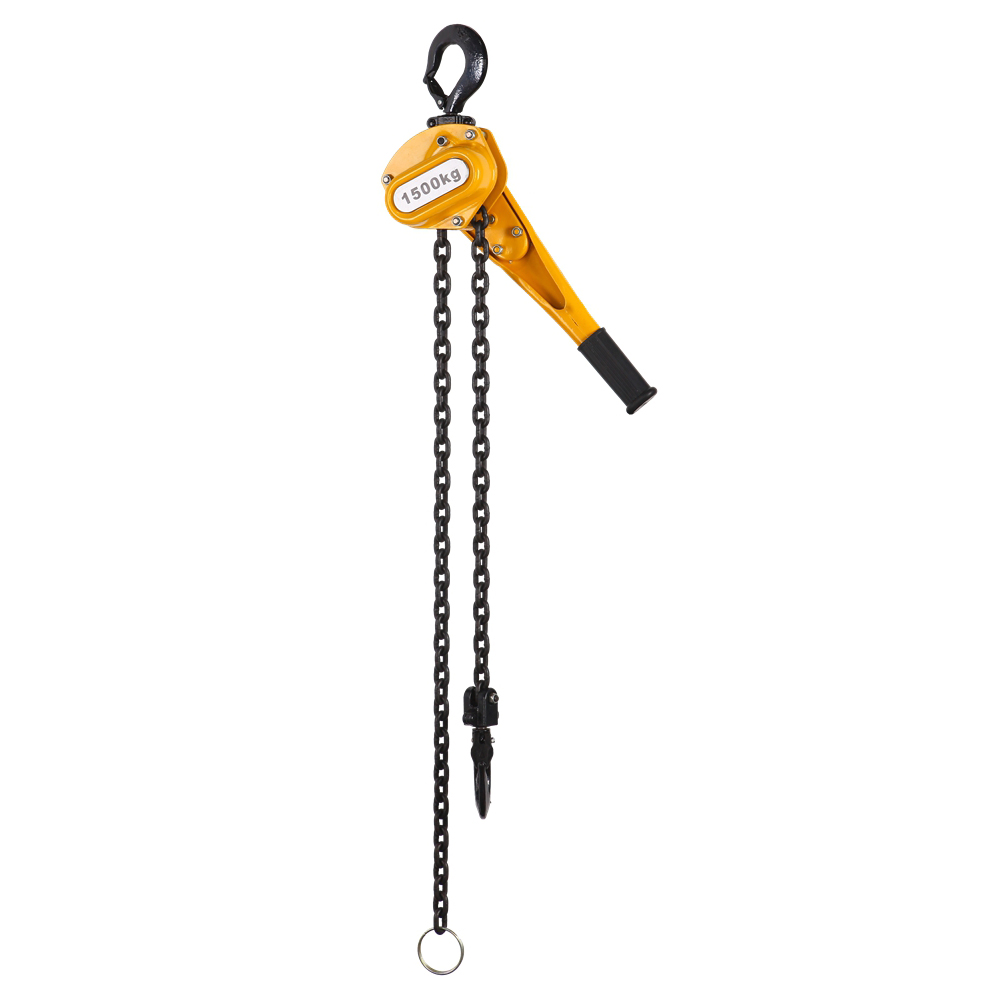

VL MANUAL LEVER HOIST
Make by Standard: EN 13157
●The VL series lever hoist can be widely used for equipment installation,lifting and tightening goods ,dragging loads in factories,mines,construction sites,power plants,boat manufacturing etc.
●It is an ideal device especially in narrow space,open air and over-head places for pulling and stretching at angle.

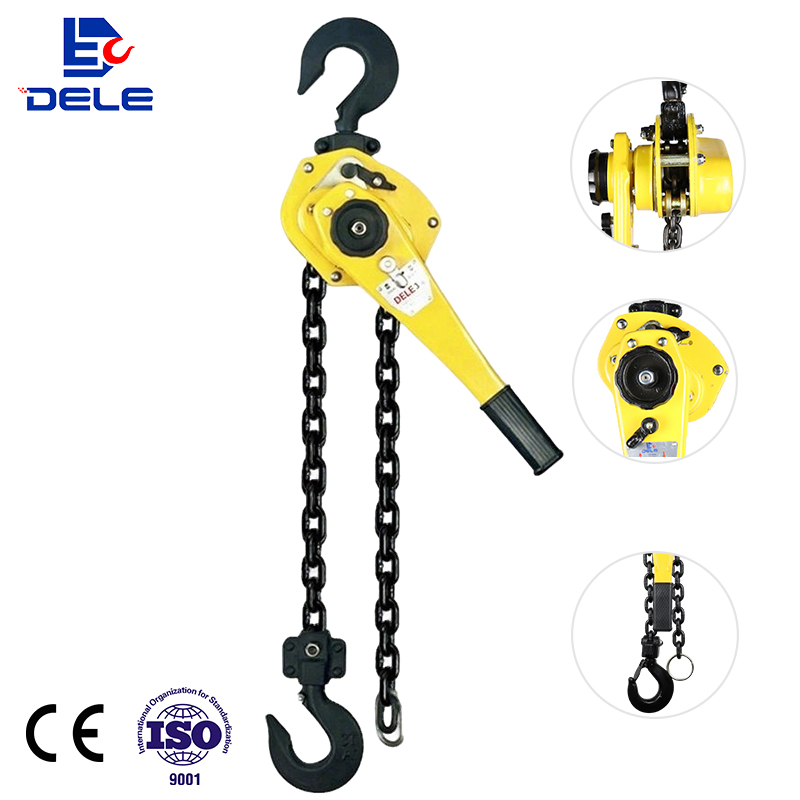

FEATURES：
●Compact,light yet durable.
●Double-pawl brake system desigend for safely and reliabilty.
●Heat treated steel plates, gears and shafts for enhanced strength;forget upper,lower hooks with forged steel safety latches; high tensile alloy steel chain .
●The lifting chain can be freely pulled and operated by special separating block design.
●Weston style automatic load brake with double pawel load reduction.
●360°rotating handle eases of using in confined space.
●As for the N position of the shift block, the position of the bottom hook can be freely adjusted according to the need when unloaded.
●Safety factor:4 to 1 .
●Fatigue tested at 1.5 times of working load limit to 2000 cycles.
| Model | VL-0.75T | VL-1T | VL-1.5T | VL-2T | VL-3T | VL-6T | VL-9T | |
| Capacity load | (t) | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Load chain specifications | （mm） | 6.3x19 | 6.3x19 | 7.1x21 | 7.1x21 | 9x27 | 9x27 | 9x27 |
| Effort required to lift max load | （N） | 260 | 210 | 450 | 460 | 430 | 490 | 490 |
| Test Load | （kg） | 1130 | 1500 | 2250 | 3000 | 4500 | 9000 | 13500 |
| Standard lift | (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Net weight | (kg) | 6.9 | 7.1 | 9.7 | 9.88 | 16.3 | 26.7 | 38.5 |
| Gross weight | (kg) | 7.9 | 8.1 | 10.7 | 10.88 | 17.3 | 28.7 | 40.5 |
| Packing size | （cm） | 38*14*19 | 38*14*19 | 53*16*22 | 53*16*22 | 55*18*23 | 56*20*24 | 58*37*22 |
| Add 1m weight | (kg) | 0.86 | 0.86 | 1.1 | 1.1 | 1.76 | 3.52 | 5.28 |

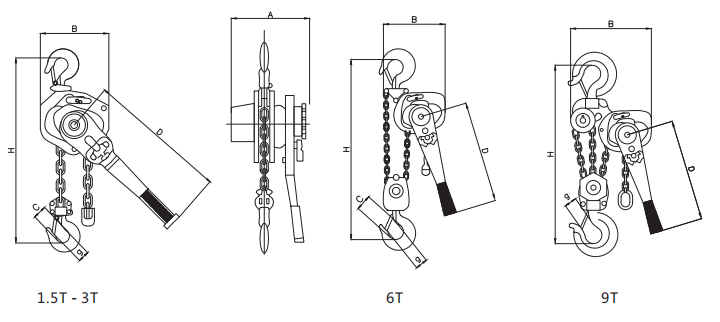

| Dimensions(mm） | A | 148 | 148 | 163 | 163 | 191 | 191 | 191 |
| B | 128 | 128 | 148 | 148 | 181 | 244 | 314 | |
| C | 37 | 45 | 47 | 47 | 62 | 78 | - | |
| D | 256 | 256 | 368 | 368 | 368 | 368 | 368 | |
| g | 28 | 33 | 33.5 | 33.5 | 43.5 | 51 | 64 | |
| H | 295 | 310 | 335 | 335 | 405 | 550 | 680 |
