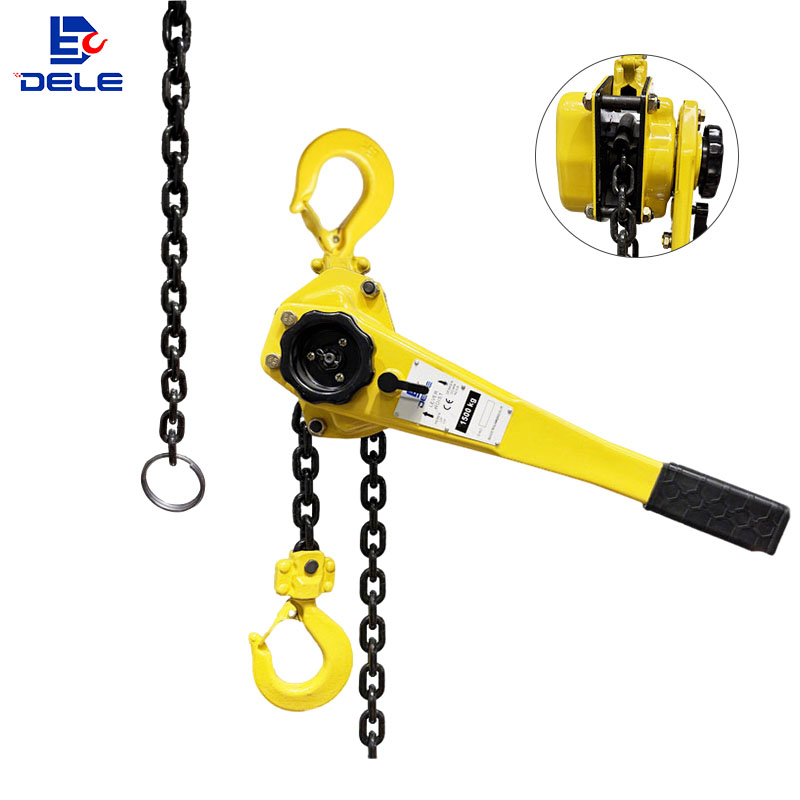

VA-B MANUAL LEVER HOIST
Make by Standard:EN13157
Standard Features:
●The design is in accordance with EN13157 standard,it meets all pertinent world standards.
●High strength steel frame and gear case build to be durable for rugged needs of construction and maintenance rigging.
●360 degree handle rotation with short stroke to ratchet loads.
●Equipped with wide throat top and bottom drop forged hooks that are designed to bend slowly to warn of overloads.
●Load chain is alloy steel grade 80 accord with ISO3077 standard.
Optional Features:
●Caged ball bearing on load sheaves.
●Cast safety latches.
●Thrust bearings in bottom hook assembly.
●Load chain is alloy steel grade 80 accord with EN818-7 standard.
●Special surface treatment of spare parts.
If you need more information, please contact with manufacturer directly.
| Model | VA-B-0.5T | VA-B-0.75T | VA-B-1.5T | VA-B-3T | VA-B-6T | VA-B-9T | |
| Capacity load | (t) | 0.5 | 0.75 | 1.5 | 3 | 6 | 9 |
| Load chain specifications | (mm) | 5x15 | 6x18 | 8x24 | 10x30 | 10x30 | 10x30 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | 2 | 3 | |
| Standard lift | (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Effort required to lift max load | (N) | 340 | 140 | 240 | 320 | 340 | 360 |
| Add 1m weight | (kg) | 0.52 | 0.8 | 1.4 | 2.15 | 4.3 | 6.45 |
| Net weight | (kg) | 3.7 | 8 | 11.8 | 21 | 32 | 47 |
| Gross weight | (kg) | 4.7 | 9 | 12.8 | 23 | 34 | 49 |
| Packing size | (cm) | 38*14*17 | 38*14*17 | 51*14.5*20.3 | 55*18.5*22.5 | 55*18.5*22.5 | 61*46*30 |

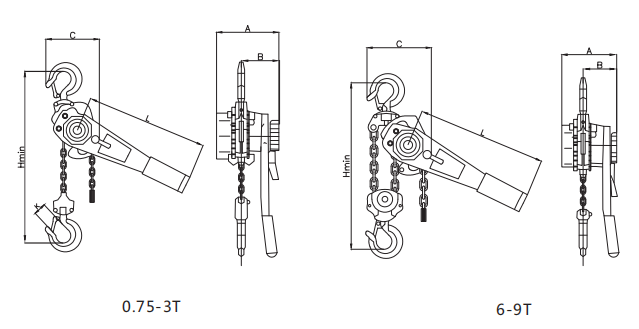

| Dimensions(mm) | A | 105 | 148 | 176 | 195 | 195 | 195 |
| B | 78 | 55 | 102 | 109 | 109 | 109 | |
| C | 80 | 135 | 162 | 211 | 254 | 319 | |
| D | 35 | 37 | 45 | 50 | 65 | 85 | |
| Hmin | 270 | 320 | 380 | 480 | 620 | 700 | |
| L | 300 | 290 | 420 | 420 | 420 | 420 | |
| K | 30 | 26 | 32.5 | 37 | 46 | 50 |
