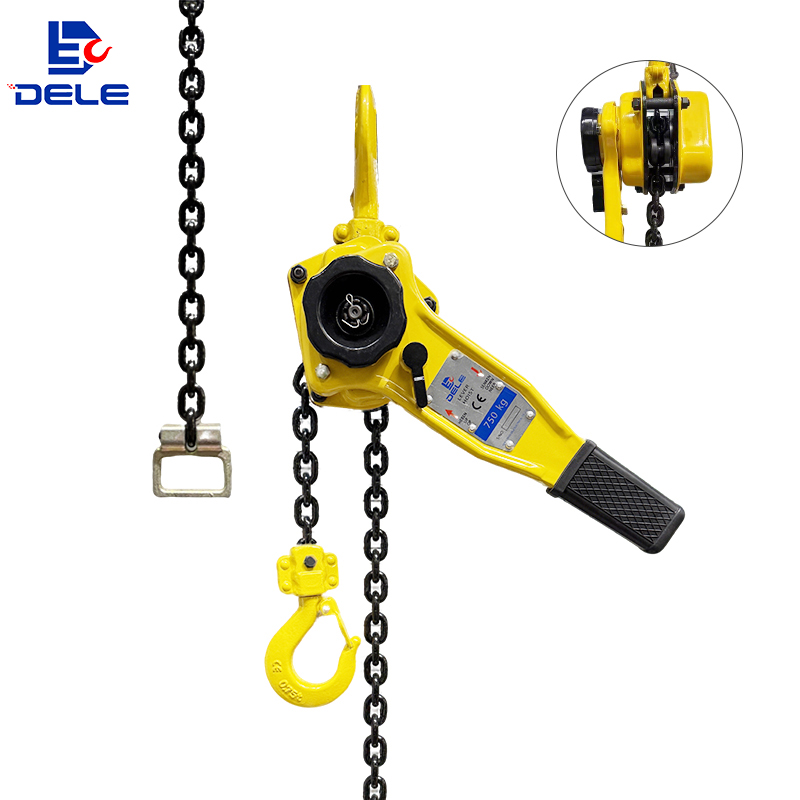

VA MANUAL LEVER HOIST
Make by Standard:EN13157
●Compact, light yet durable.
●Double-pawl brake system dsigend for safety and reliabilty.
●Heat treatment steel plates , gears and shafter for enhanced strength;Forgeg upper , lower hooks with forged steel safety latches ; High tensile alloy steel chain.
●Free -wheeling mechanism for quick chain adjust ments.
●Weston style automatic load brake with double pawls load reduction.
●360°rotating handle eases of using in confined space.
●As for the N position of the shift block, the position of the bottom hook can be freely adjusted according to the need when unloaded.
●Safety factor: 4 to 1.
●Fatigue tested at 1.5 times of working load limit to 2000 cycles.
| Model | VA-0.75T | VA-1.5T | VA-3T | VA-6T | VA-9T | ||
| Capacity load | (t) | 0.75 | 1.5 | 3 | 6 | 9 | |
| Standard lift | (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Test load | (t) | 11 | 22.5 | 37.5 | 75 | 112.5 | |
| Effort required to lift max.load | (N) | 140 | 220 | 320 | 340 | 360 | |
| Load chain Number of falls | 1 | 1 | 1 | 2 | 3 | ||
| Load chain specifications | (mm) | 6 | 8 | 10 | 10 | 10 | |
| Net Weight | (kg) | 7.5 | 11.5 | 21 | 31.5 | 47 | |
| Gross weight | (kg) | 8 | 12 | 22 | 33 | 49 | |
| Packing size | (cm) | 35.5*14*16.5 | 46.5*15.5*19 | 51*19*21.5 | 53*22*21.5 | 82*32*21.5 | |
| Add 1m weight | (kg) | 0.8 | 1.4 | 2.2 | 4.4 | 6.6 | |

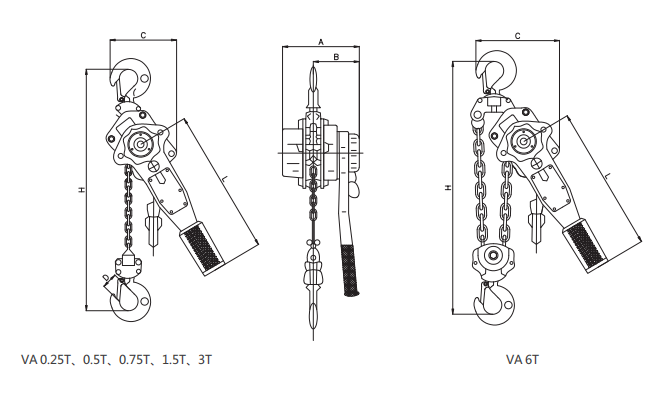

| Dimensions(mm) | A | 145 | 175 | 203 | 203 | 203 | |
| B | 86 | 100 | 118 | 118 | 118 | ||
| C | 122 | 130 | 150 | 205 | 316 | ||
| D | 37 | 45 | 50 | 64 | 85 | ||
| H | 320 | 380 | 480 | 620 | 700 | ||
| L | 285 | 370 | 410 | 410 | 410 | ||
| K | 30 | 36 | 40 | 50 | 58 | ||
