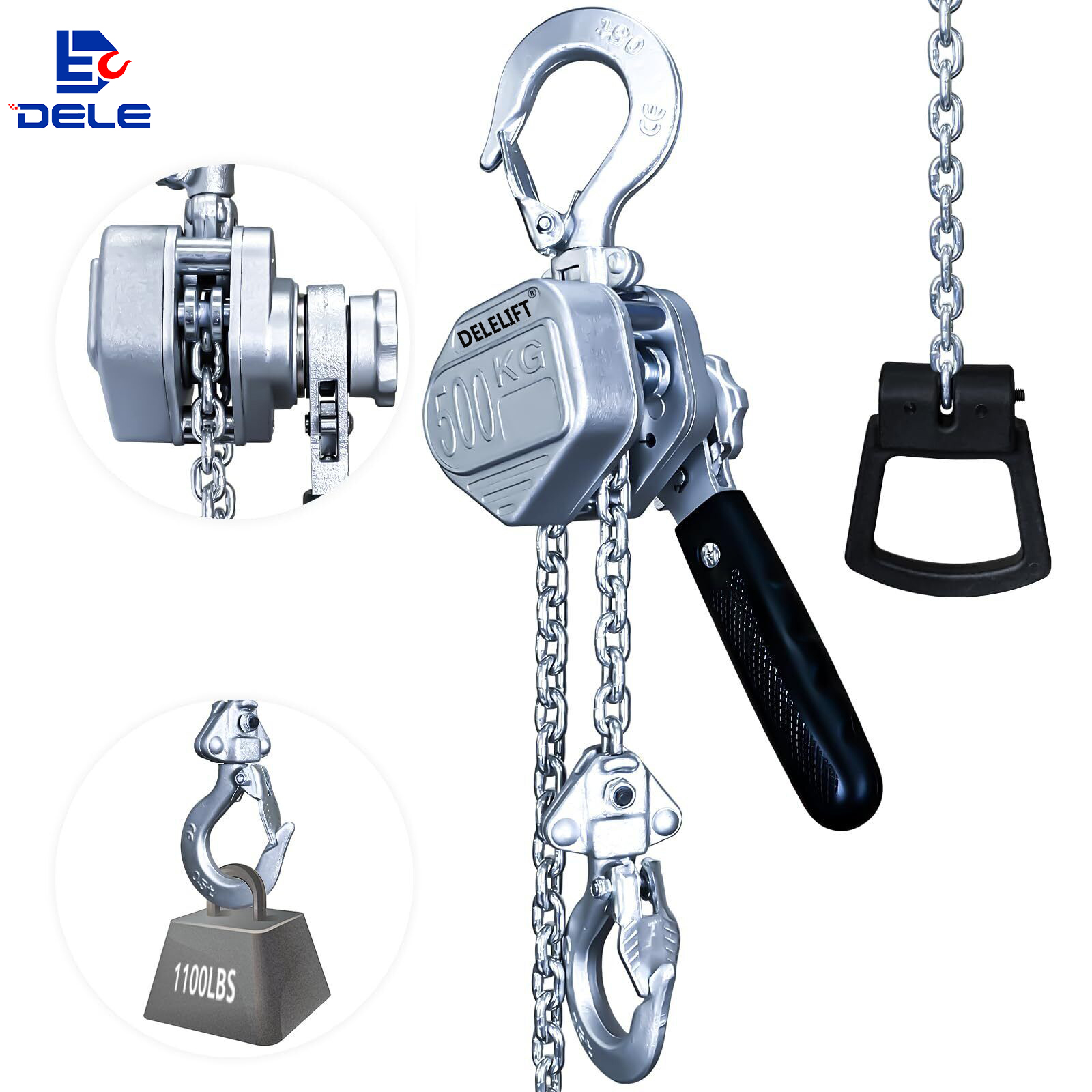

DLH MANUAL LEVER HOIST
Make by Standard:EN13157
● High-strength aluminum alloy shell–light weight.
● Compact frame design–light weight and high strength.
● 6 gear reduction system–the wrench force is small and the wrench length is reduced.
● Double pawl braking system–smooth braking.
● 0.25t, 0.5t, 0.75t with kit.
● High strength–the life of hoist exceeds 1500 EU standard fatigue tests.
| Model | DLH-0.25T | DLH-0.5T | DLH-0.75T | ||
| Capacity load | (t) | 0.25 | 0.5 | 0.75 | |
| Standard Lift | (m) | 1.5 | 1.5 | 1.5 | |
| Effort required to lift max load | (N) | 190 | 240 | 290 | |
| Load chain specifications | (mm) | 3.2 | 4 | 5 | |
| Load chain Number of falls | 1 | 1 | 1 | ||
| Test Load | (kg) | 375 | 750 | 1125 | |
| Net weight | (kg) | 1.5 | 2.5 | 3.4 | |
| Gross Weight | (kg) | 1.7 | 2.8 | 3.8 | |
| Packing size | （cm） | 25*14*12 | 25*14*12 | 35*15*11 | |

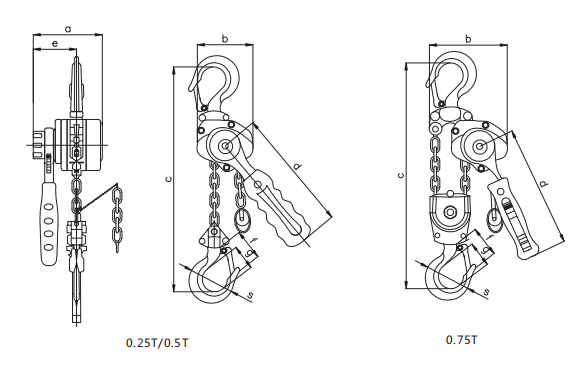

| Dimensions(mm) | a | (mm) | 87 | 100 | 105 |
| b | (mm) | 68 | 81 | 92 | |
| c | (mm) | 200 | 250 | 260 | |
| d | (mm) | 145 | 160 | 180 | |
| e | (mm) | 55.5 | 62.5 | 64 | |
| f | (mm) | 35.5 | 42 | 42 | |
| g | (mm) | 21 | 24.5 | 28.5 | |
| s | (mm) | 32 | 34.5 | 35.5 | |
| t | (mm) | 11 | 12 | 15.5 | |
