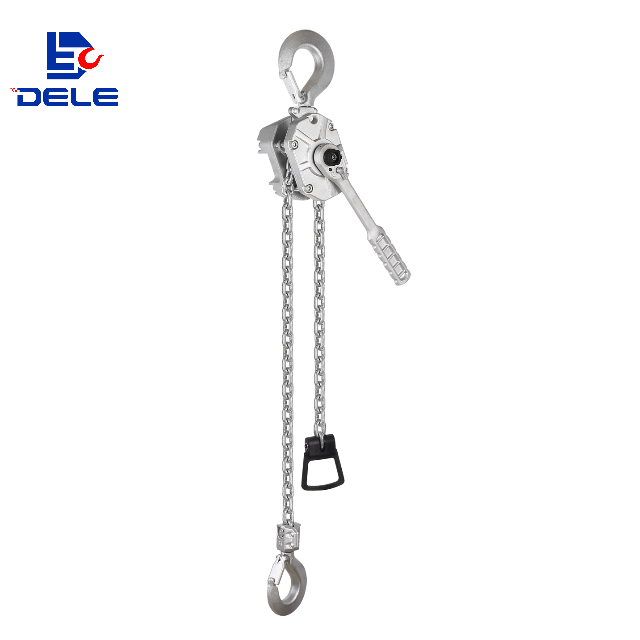

DL MANUAL LEVER HOIST
Make by Standard:EN13157
●The aluminum alloy lever hoist is the DELELIFT brand in the smallest and lightest lever hoist.This series of new lever hoist as an essential tool in the industrial business and service widely used.The hoist is very light weight, the design is very compact, even in the limited working environment can also be easily used.
Features:
●Hanging devices and load hooks made of anti-aging,high-strength alloy steel, when in case of overload the case will first be deformed without sudden breakage
●Hook with a solid safety lock, free rotation 360°.
●ln line with the design of the human body design of the handle so that the hoist easy to operate.
●Closed design can protect the internal parts from pollution.
●All components of the disc-type load brakes are made of high-quality materials, and anti-corrosion.
●This lever hoist made of aluminum alloy material,not rusty.
Use of environmental conditions:
●Operating temperature range:-40℃ to + 60℃
●Use of the environment: Please use below 100% RH,can not be used in water.Use of materials: no use of anti-spark material or asbestos and other speciall materials.
●Do not overload use.
| Model | DL-0.25T | DL-0.5T | DL-0.75T | DL-1.5T | DL-3T | DL-6T | DL-9T | |
| Capacity load | (t) | 0.25 | 0.5 | 0.75 | 1.5 | 3 | 6 | 9 |
| Standard lift | (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Effort required to lift max load | (N) | 170 | 200 | 220 | 250 | 340 | 380 | 400 |
| Test load | (kg) | 375 | 750 | 1125 | 2250 | 4500 | 9000 | 13500 |
| Load chain specifications | (mm) | 3x9 | 4x12 | 5.6x17 | 7x21 | 9x27 | 9x27 | 9x27 |
| Net weight | (kg) | 1.6 | 2.7 | 5.1 | 7.6 | 14.7 | 20 | 39.5 |
| Gross weight | (kg) | 1.8 | 3.0 | 5.5 | 8.1 | 15.2 | 21.5 | 41.5 |
| Packing size | (cm) | 20*12*8.5 | 23.5*13.5*10 | 31.5*16*12 | 35*18*13 | 49*20*16 | 49*23.5*21.5 | 49.5*23.5*21.5 |
| Add 1m weight | (kg) | 0.15 | 0.341 | 0.7 | 1.1 | 1.8 | 3.6 | 5.4 |

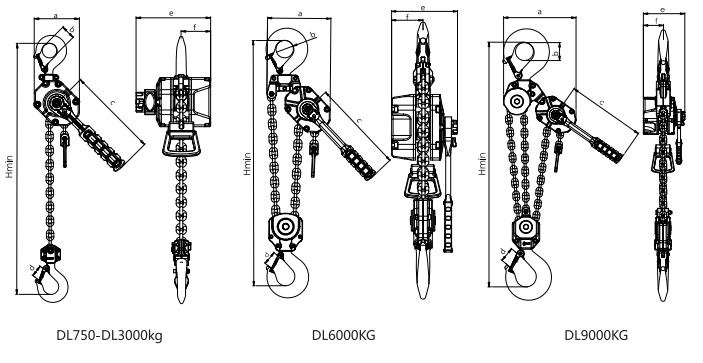

| Dimensions(mm) | a | 74 | 90 | 115 | 140 | 170 | 237 | 300 |
| b | 30 | 35 | 39 | 44 | 60 | 68 | 91 | |
| c | 142 | 175 | 233 | 233 | 350 | 350 | 350 | |
| d | 20 | 22 | 28 | 30 | 41 | 47 | 61 | |
| e | 105 | 117 | 140 | 158 | 185 | 185 | 185 | |
| Hmin | 223 | 282 | 329 | 355 | 445 | 500 | 635 | |
| f | 36 | 40 | 55 | 70 | 88 | 88 | 90 |
