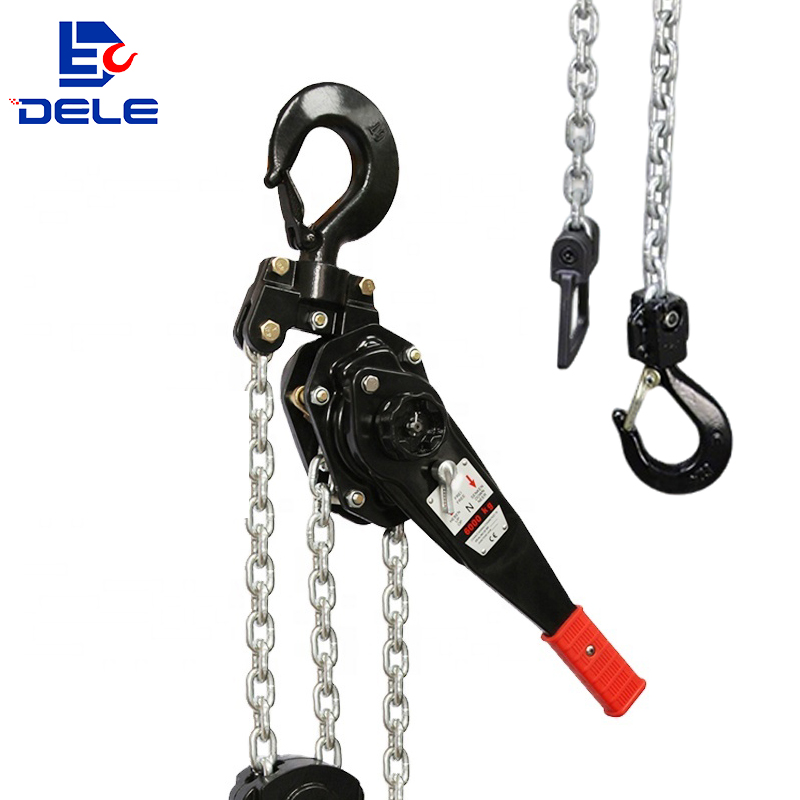

DH MANUAL LEVER HOIST
Make by Standard:EN13157
●Lever hoist capacity range from 0.75 ton to 9 ton.
●Ergonomic handle design so that the hoist is easy to operate, product suitable for allapplication.
●Suspension and load hooks are made of alloy steel 35CrMo, heat treated and fittedwith heavy duty safety latches, fitting groove and inspection points.
●Machined chain sprocket and gears provide smoother,more efficient operation.
●Hook with safety latch securely can rotate freely 360 degrees.
●Gears are made up of 20CrMnTi, material which ensures toughness and betterstrength.
●Fitted with high strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance.(comply with EN 818-7, safety factor 4).
●Load chain marked with T8 marks as per EN 818-7.
●Heavy duty guide rollers for avoiding slippage of load chain.
●Nylon pull ring.
●All hoists tested at 1.5 times of WLL.
| Technical details | ||||||
| Model | DH-0.75T | DH-1.5T | DH-3T | DH-6T | DH-9T | |
| Capacity load | （t) | 0.75 | 1.5 | 3 | 6 | 9 |
| Standard lift | (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Load chain Number of falls | 1 | 1 | 1 | 2 | 3 | |
| Effort required to lift max load | (N) | 220 | 240 | 330 | 360 | 380 |
| Test Load | (kg) | 1125 | 2250 | 4500 | 9000 | 13500 |
| Load chain specifications | (mm) | 6x18 | 7.1x21.2 | 9x27 | 9x27 | 9x27 |
| Net weight | (kg) | 5.3 | 8.6 | 15.2 | 23 | 43 |
| Gross weight | (kg) | 5.6 | 8.9 | 15.6 | 23.5 | 44.5 |
| Packing size | (cm) | 31.5*16*12 | 35*18*13 | 48*20*13.5 | 48*21.5*17 | 53*28*25 |
| Add 1m weight | (kg) | 0.77 | 1.1 | 1.8 | 3.6 | 5.4 |

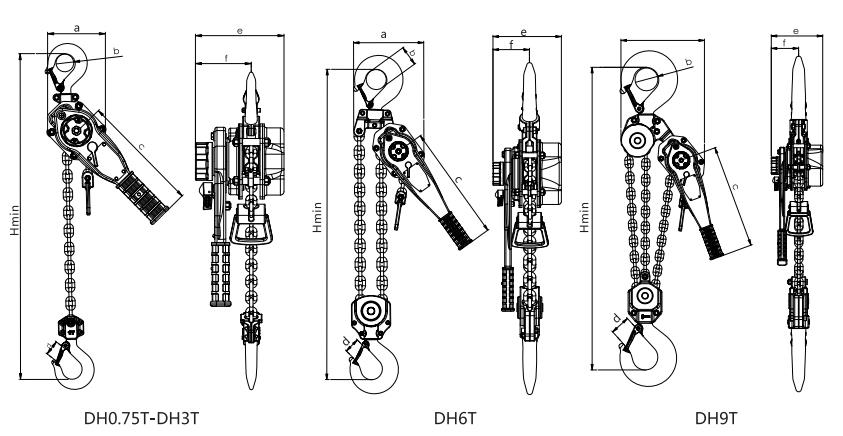

| Dimensions(mm) | a | 115 | 137 | 169 | 238 | 300 |
| b | 39 | 44 | 60 | 68 | 91 | |
| c | 239 | 259 | 374 | 374 | 374 | |
| d | 28 | 32 | 41 | 47 | 61 | |
| e | 146 | 162 | 187 | 187 | 187 | |
| f | 91 | 67 | 98 | 98 | 98 | |
| Hmin | 320 | 360 | 431 | 500 | 635 | |
