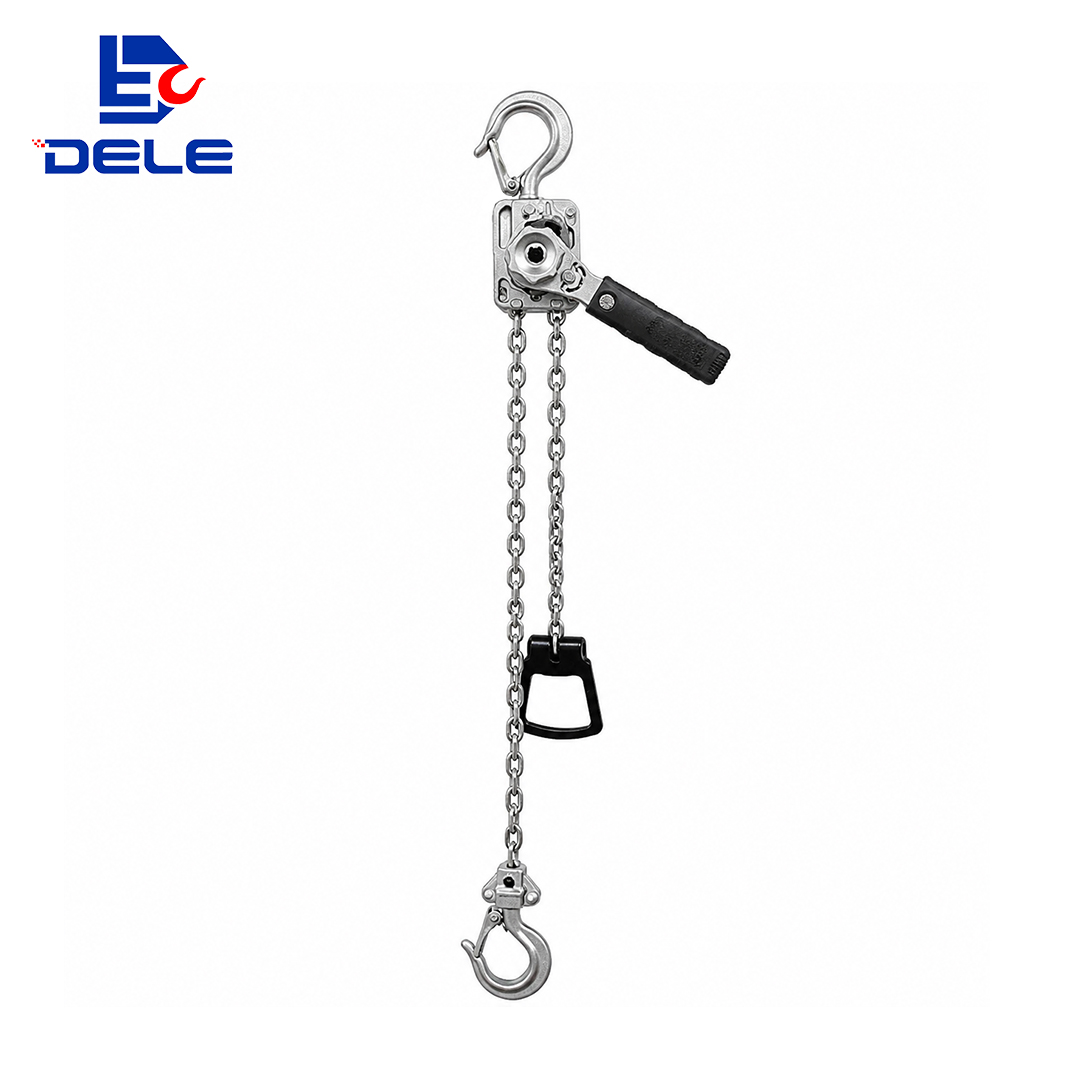

DA MANUAL LEVER HOIST
●Make by Standard : EN13157
●High-strength aluminum alloy shell-light weight.
●Compact frame design-light weight and high strength.
●6 gears reduction system-the wrench force is small and the wrench length is reduced.
●Double pawls braking system-smooth braking.
●100kg 150kg with kit.
●High strength-the life of hoist exceeds 1500 EU standard fatigue tests.
| Model | DA-100 | DA-150 | |
| Rated Capacity(kg) | 100 | 150 | |
| Standard Lift(m) | 1.5 | 1.5 | |
| Pull to lift capacity(N) | 120 | 180 | |
| Load Chain Diameter(mm) | Φ4 | Φ4 | |
| No.of Falls | 1 | 1 | |
| Tested Load(kg) | 150 | 225 | |
| Net Weight(kg) | 1.4 | 1.5 | |
| Gross Weight(kg) | 1.5 | 1.6 | |

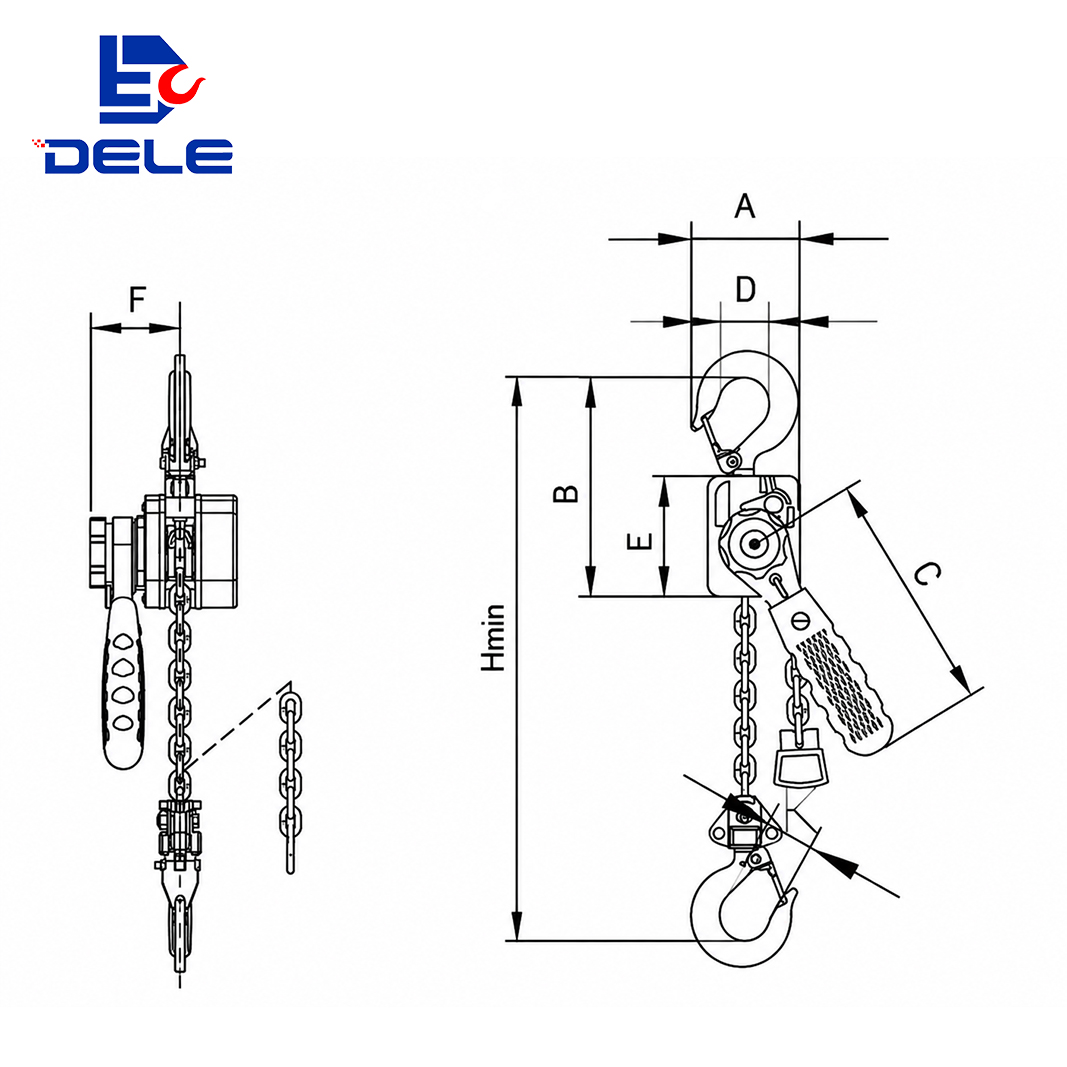

| Dimension (mm) | A | 65 | 65 |
| B | 130 | 130 | |
| C | 145 | 145 | |
| D | 20 | 20 | |
| E | 55 | 58 | |
| F | 55 | 55 | |
| H | 220 | 220 | |
| K | 20 | 20 | |
