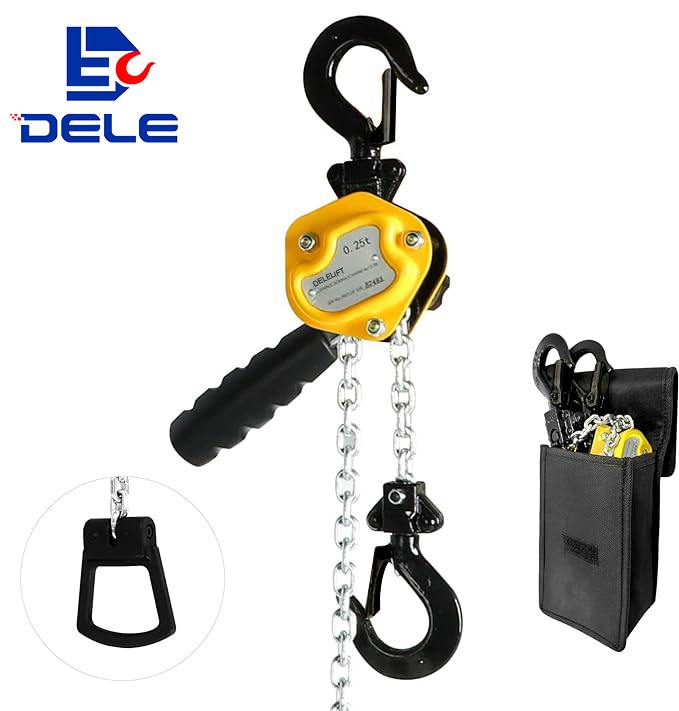

DC MANUAL LEVER HOIST
Make by Standard: EN13157
Rated capacity 250-500 kg
This hoist is the smallest and lightest lever hoist in the DELELIFT brand.
As an essential tool, this series of new lever hoist is widely used in industry, business and service. The hoist is extremely light in weight and compact in design. It can be used easily even in restricted work environment.
Features:
●The suspension device and load hook are made of anti-aging, high-strength alloy steel. In case of overload, they will deform first and not break suddenly.
●The hook with a firm safety lock, free rotation 360°.
● Handle in line with human design engineering makes the hoist easy to operate.
●Closed design can protect the internal parts from pollution.
● All parts of disc load brake are made of high quality materials and are corrosion resistant.
Use of environmental conditions:
●Operating temperature range:-40°C~+60°C.
●Environment range: Please use below 100%RH, do not use in wate.
●Materials used: No special materials such as fireproof flowers or asbestos are used.
●Overloading is strictly prohibited.
| Model | DC-0.25T | DC-0.5T | DC-0.75T | DC-1.5T | DC-2.5T | DC-3T | DC-5T | DC-6T | ||
| Capacity load | (t） | 0.25 | 0.5 | 0.75 | 1.5 | 2.5 | 3 | 5 | 6 | |
| Standard lift | （m） | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Effort required to lift max load | 260 | 260 | 220 | 240 | 330 | 350 | 350 | 380 | ||
| Test load | （N） | 375 | 750 | 1125 | 2250 | 3750 | 4500 | 7500 | 9000 | |
| Load chain specifications | (mm) | 4x12 | 4x12 | 5x15 | 7x21 | 9x27 | 9x27 | 9x27 | 9x27 | |
| Net weight | (kg) | 2.2 | 3.2 | 4.7 | 7.6 | 14 | 14 | 22 | 22 | |
| Gross weight | (kg) | 2.4 | 3.4 | 5 | 8 | 14.5 | 14.5 | 22.5 | 22.5 | |
| Packing size | (cm) | 21*12.5*11.5 | 23.5*13.5*12 | 30*14*14 | 33*18*15.7 | 44*20*19 | 44*20*19 | 49*23.5*21.5 | 49.5*23.5*21.5 | |
| Add 1m weight | (kg) | 0.346 | 0.346 | 0.541 | 1.1 | 1.8 | 1.8 | 1.8 | 1.8 | |
| Dimensions(mm) | a | 86 | 95 | 121 | 139 | 173 | 173 | 173 | 173 | |
| b | 155 | 178 | 204 | 235 | 286 | 286 | 340 | 340 | ||
| c | 170 | 170 | 240 | 240 | 335 | 385 | 335 | 385 | ||
| d | 30 | 35 | 39 | 44 | 60 | 60 | 68 | 68 | ||
| e | 79 | 87 | 112 | 133 | 162 | 162 | 162 | 162 | ||
| Hmin | 245 | 285 | 335 | 365 | 448 | 448 | 600 | 600 | ||
| f | 97 | 117 | 124 | 159 | 178 | 178 | 178 | 178 | ||
| G | 22 | 22 | 28 | 30 | 41 | 41 | 47 | 47 | ||
| H | 77 | 80 | 84 | 90 | 97 | 97 | 97 | 97 | ||
