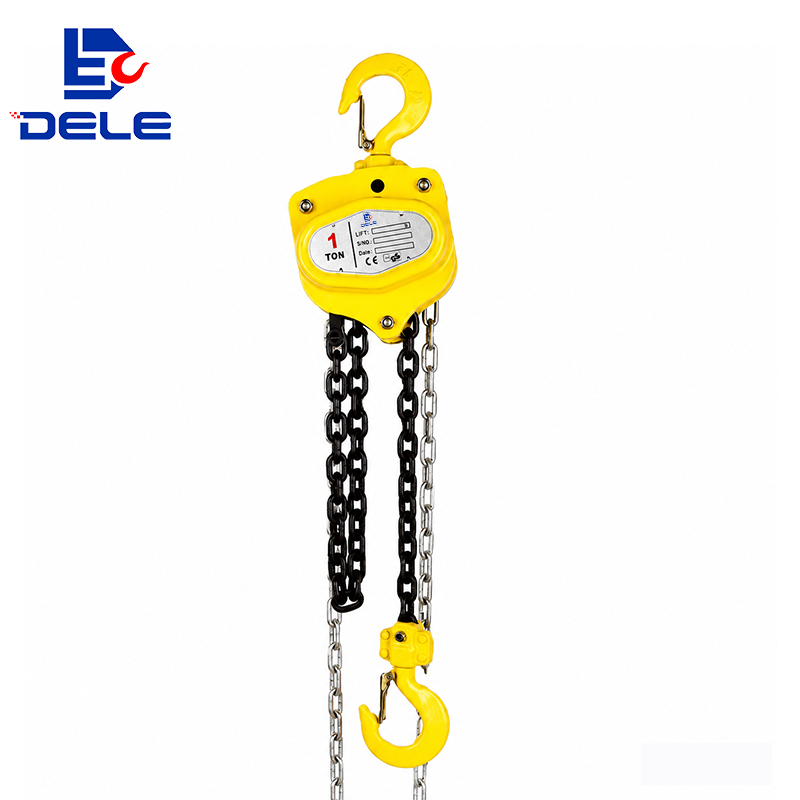

VC-B MANUAL CHAIN HOIST
Make by Standard:EN13157
●Chain hoist capacity range from 0.5ton to 50ton.
●Multi-point supporting ,low fault rate.
●With double pawl,increase the safety factor in 2times.
●All nuts in anti-slip nuts.
●Smooth rotation, high efficiency, light hand pull.
●The hand cover use special crimping process,keep the hand chain not tilting and not snapping.
●Fitted with high strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance (comply with EN818, safety factor 4) .
| Model | VC-B-0.5T | VC-B-1T | VC-B-1.5T | VC-B-2T | VC-B-3T | VC-B-5T | VC-B-10T | VC-B-20T | VC-B-30T | |
| Capacity load | (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 |
| Standard lift | (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Test load | (t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | 45 |
| Effort required to lift max.load | (N) | 300 | 330 | 360 | 365 | 385 | 435 | 435 | 435*2 | 435*2 |
| Load chain Number of falls | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | 12 | |
| Load chain specifications | (mm) | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | 10 |
| Net Weight | (kg) | 8.4 | 11 | 16.2 | 18.5 | 25.6 | 42.8 | 79.5 | 193 | 220 |
| Gross weight | (kg) | 9.4 | 12 | 17.2 | 19.5 | 27.6 | 44.8 | 81.5 | 195 | 222 |
| Packing size | (cm) | 24*18*18 | 24*20*19 | 29*24*19 | 29*24*19 | 32*24*19 | 41*30*20 | 50*44*25 | 80*70*30 | 90*70*40 |
| Dimensions(mm) | A | 137.5 | 146.5 | 170 | 170 | 170 | 190.4 | 190 | 209 | 312 |
| B | 137 | 162 | 183 | 194 | 220 | 288 | 384 | 625 | 691 | |
| Hmin | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1380 | |
| D | 35 | 35.5 | 45 | 42.5 | 50 | 64 | 85 | 110 | 110 | |
| K | 28 | 26 | 32.5 | 32 | 37 | 46 | 50 | 81 | 81 |
