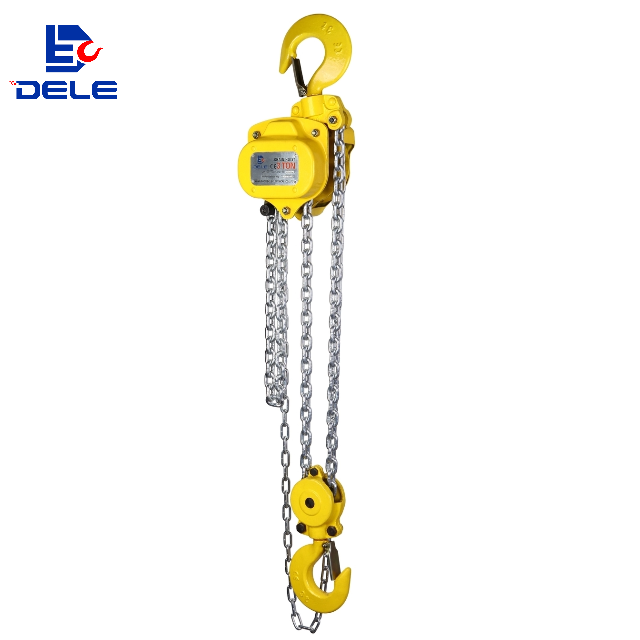

VC MANUAL CHAIN HOIST
Make by Standard:EN13157
●Chain hoist capacity range from 0.5ton to 50 ton.
●Multi-point supporting ,low fault rate.
●With double pawl,increase the safety factor in 2 times.
●All nuts in anti-slip nuts.
●Smooth rotation, high efficiency, light hand pull.
●The hand cover uses special crimping process,keep the hand chain not tilting and not snapping.
●Fitted with High strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance
(comply with EN 818, safety factor 4).
| Model | VC-0.5T | VC-1T | VC-1.5T | VC-2T | VC-3T | VC-5T | VC-10T | VC-20T | VC-30T | VC-50T | ||
| Capacity load | （t） | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | |
| Standard lift | (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test load | （t) | 0.75 | 1.5 | 2.25 | 5 | 4.5 | 6.25 | 12.5 | 25 | 37.5 | 62.5 | |
| Effort required to lift max. load | (N) | 200 | 320 | 360 | 364 | 385 | 435 | 435 | 504x2 | 504x2 | 504x2 | |
| Load chain specifications | (mm) | 5x15 | 6.3x18 | 7.1x21 | 8x24 | 7.1x21 | 9x27 | 9x27 | 9x27 | 9x27 | 9x27 | |
| Load Chain Number of falls | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 6 | 8 | 12 | ||
| Gross weight | (kg) | 8.9 | 11.5 | 16.7 | 19 | 26.6 | 43.8 | 80.5 | 194 | 222 | 1097 | |
| Net weight | (kg) | 8.4 | 11 | 16.2 | 18.5 | 25.6 | 42.8 | 79.5 | 193 | 220 | 1095 | |
| Packing size | (cm) | 22*15*19.5 | 23*18*19.5 | 28*21*24 | 28*21*24 | 32*21*26 | 40*21*21 | 64*21*21 | 64*38*64 | 72*50*68 | 110*100*130 | |
| Add 1m weight | (kg) | 1.7 | 1.7 | 2.3 | 2.3 | 3.7 | 5.6 | 9.7 | 19.4 | 26.4 | 48.4 | |

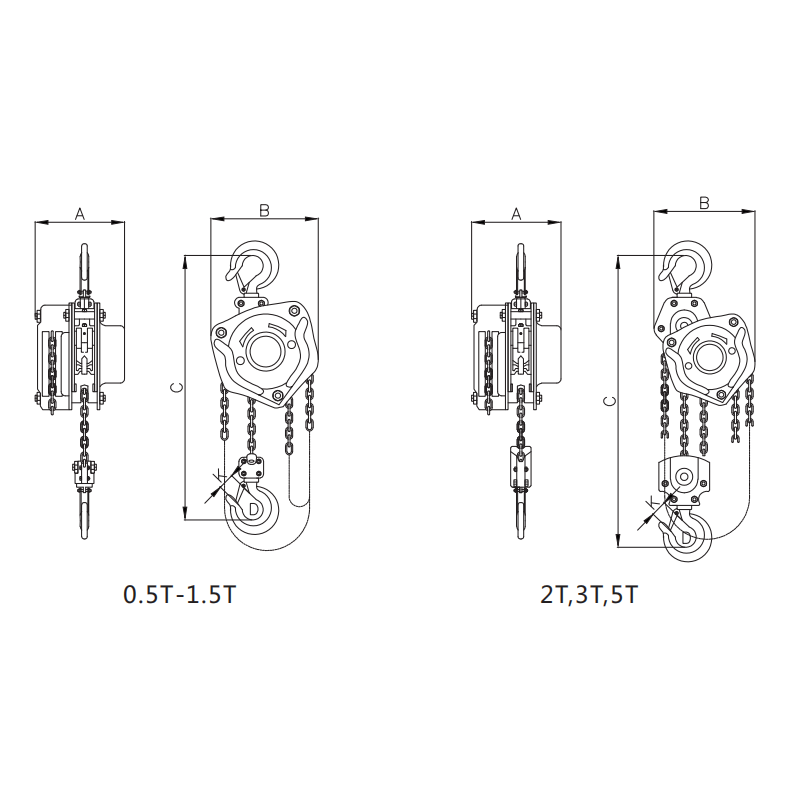

| Dimensions(mm） | A | 131 | 140 | 161 | 161 | 161 | 186 | 207 | 215 | 350 | 406 | |
| B | 127 | 158 | 187 | 187 | 210 | 253 | 398 | 650 | 680 | 962 | ||
| C | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1380 | 2578 | ||
| D | 35 | 40 | 45 | 50 | 58 | 64 | 85 | 110 | 110 | 170 | ||
| K | 30 | 34 | 38 | 41 | 48 | 52 | 64 | 85 | 85 | 130 | ||
