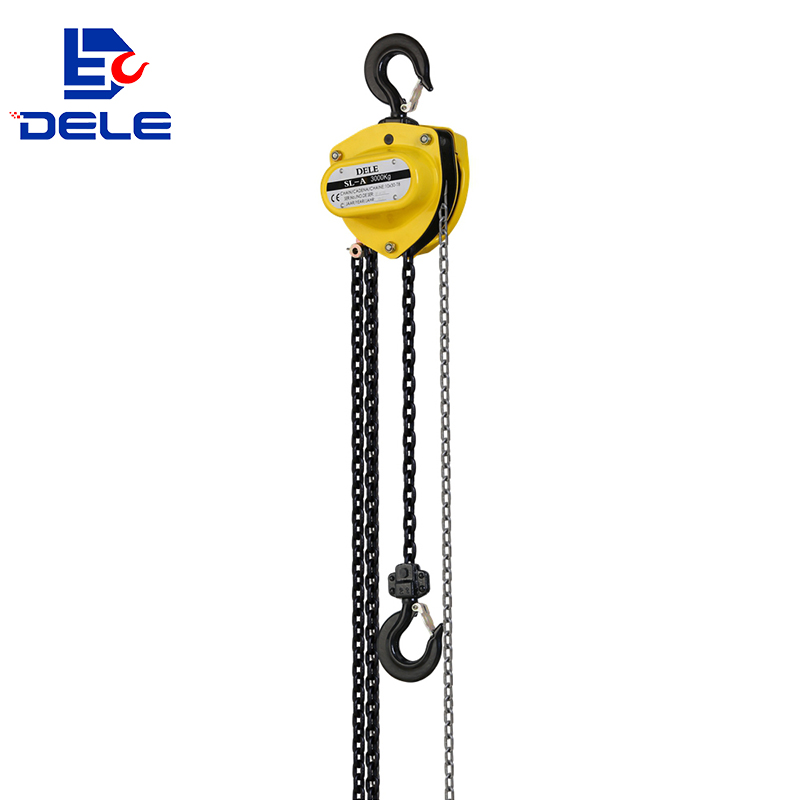

SLA MANUAL CHAIN HOIST
Make by Standard:EN13157
●Chain hoist capacity range from 0.5ton to 30 ton.
●Multi-support structure, more reasonable force, flexible operation and low failure rate of transmission system.
●With double pawl,increase the safety factor in 2 times.
●All nuts in anti-slip nuts.
●Smooth rotation, high efficiency, light hand pull.
●The hand cover use special crimping process,keep the hand chain not tilting and not snapping.
●Fitted with high strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance (comply with EN 818, safety factor 4).
| Model | SLA-0.5T | SLA-1T | SLA-1.5T | SLA-2T | SLA-3T | SLA-5T | SLA-10T | SLA-15T | SLA-20T | SLA-30T | |
| Capacity load | （t） | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | 30 |
| Standard lfit | （m） | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 |
| Load chain Number of falls | （mm) | 1 | 1 | 1 | 1 | 1 | 2 | 4 | 6 | 8 | 12 |
| Load chain specifications | （mm) | 5X15 | 6X18 | 7X21 | 8X24 | 10X30 | 10X30 | 10X30 | 10X30 | 10X30 | 10X30 |
| Effort required to lift max load | （N) | 240 | 250 | 265 | 335 | 372 | 360 | 380 | 378 | 382 | 395 |
| Gross weight | (kg) | 9.8 | 12.7 | 17.0 | 20.0 | 33.0 | 42.1 | 76.7 | 136.0 | 194.0 | 322.0 |
| Net weight | （kg） | 9.3 | 12.2 | 16.5 | 19.5 | 32 | 41.1 | 75.7 | 135 | 192 | 320 |
| Packing size | (cm) | 30*19*22 | 30*19*22 | 35.5*23.5*23 | 35.5*23.5*23 | 33.5*27.5*24.5 | 44*29.5*24.5 | - | - | - | - |

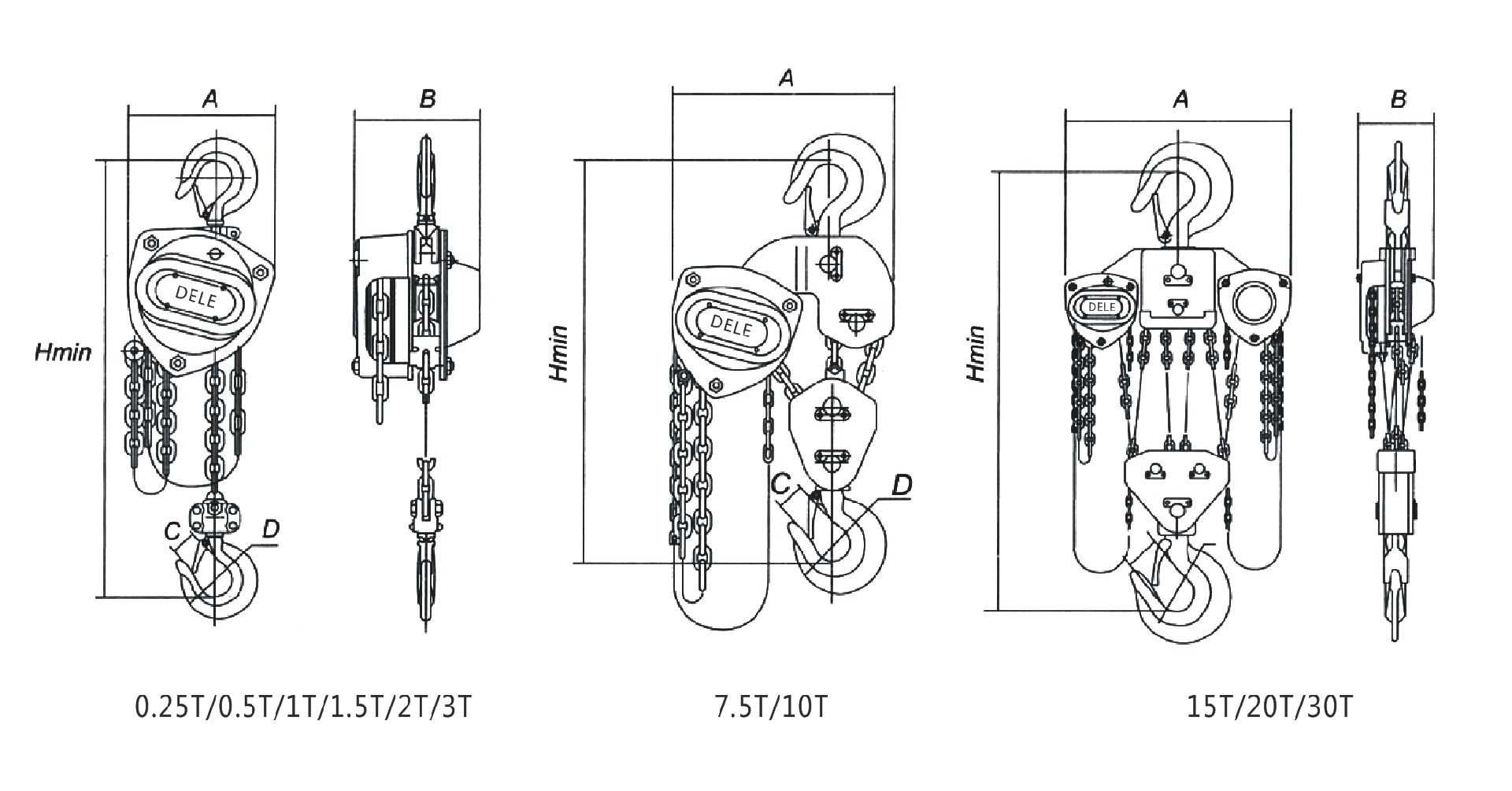

| Dimensions(mm) | A | 148 | 172 | 196 | 210 | 255 | 280 | 463 | 718 | 840 | 670 |
| B | 132 | 151 | 173 | 175 | 205 | 189 | 189 | 200 | 200 | 510 | |
| C | 23 | 27 | 33 | 35 | 39 | 45 | 54 | 71 | 82 | 81 | |
| D | 35 | 40 | 45 | 50 | 55 | 65 | 75 | 95 | 106 | 110 | |
| Hmin | 345 | 367 | 442 | 470 | 548 | 688 | 765 | 900 | 950 | 1800 |
