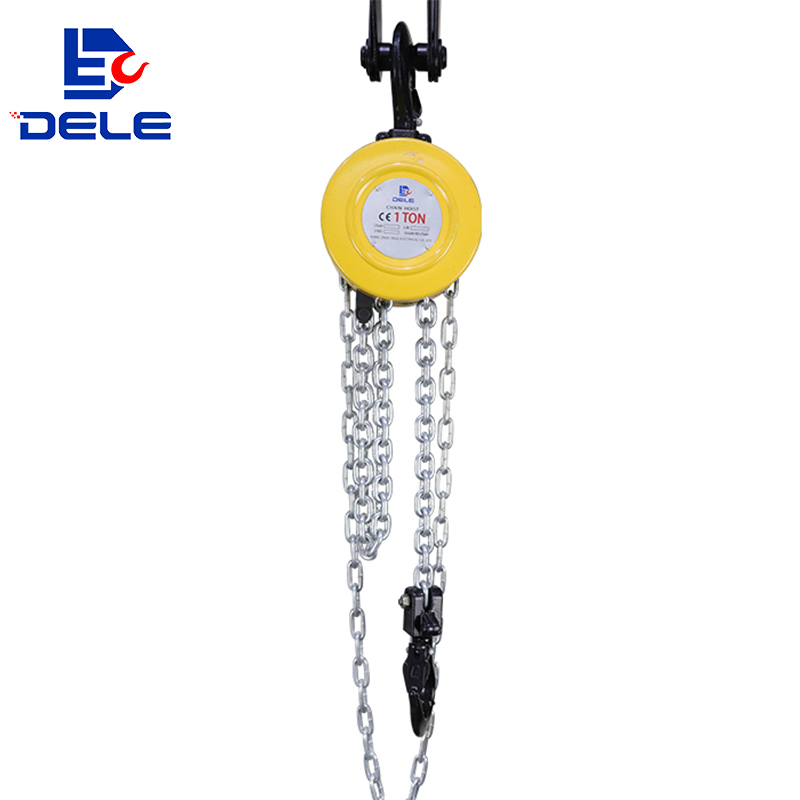

SK CHAIN HOIST
Make by Standard:EN13157
APPLICATION
The SK Series Chain Hoist is a portable liting device operated by hand chain.lt is suitable for use in factories,mines,farms,constructon sites,wharves,docks and warehouses for installation of equipment, as well as for loading and unloadng goods. it is specialy advantageous for lifting work in the open air and places where no power supply is available.
The chain hoist can be attached to a trolly of any type as a traveling chain houst. It is suitable to monorail overhead conveying system. hand travelling crane and jib crane.
FEATURES
●Safe.reliable in operation with minimum maintenance.
●High efficiency and small handpull.
●Light weight and easy handling.
●Fine appearance with small size.
●Durability in service.
| MODEL | SK-0.5T | SK-1T | SK-1.5T | SK-2T | SK-3T | SK-5T | SK-7.5T | SK-10T | SK-15T | SK-20T | |
| Capacity | （T） | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 |
| Standard lift | （m） | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 |
| Running test load | （T） | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 6.25 | 10 | 12.5 | 20 | 28 |
| Headroom Hmin | (mm) | 240 | 270 | 347 | 380 | 470 | 600 | 700 | 700 | 820 | 1000 |
| Effort required to lift max.load | (N) | 221 | 304 | 343 | 314 | 343 | 381 | 392 | 392 | 392 | 392 |
| NO.of columns of load | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 6 | 8 | |
| Load chain dia. | (mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | 10 | 10 |

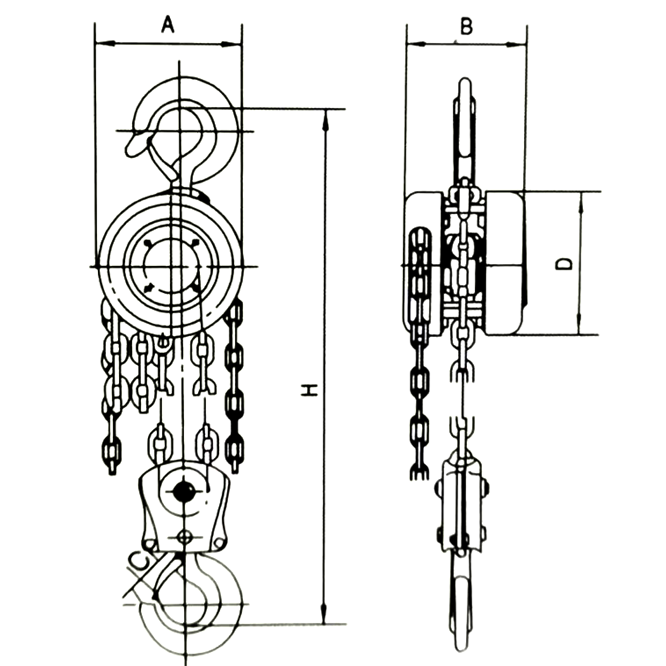

| Dimensions(mm) | A | 120 | 142 | 178 | 142 | 178 | 210 | 356 | 358 | 400 | 580 |
| B | 108 | 122 | 139 | 122 | 139 | 162 | 162 | 162 | 196 | 189 | |
| C | 24 | 28 | 34 | 34 | 38 | 48 | 64 | 64 | 69 | 82 | |
| D | 120 | 142 | 178 | 142 | 178 | 210 | 210 | 210 | 210 | 210 | |
| Net weight | （kg） | 8 | 10 | 16 | 14 | 24 | 36 | 58 | 68 | 112 | 155 |
| Gross weight | （kg） | 10 | 13 | 20 | 17 | 28 | 45 | 70 | 83 | 127 | 193 |
| Packing measurements（L*W*H） | （cm） | 28*21*17 | 30*24*18 | 34*29*20 | 33*28*19 | 38*38*20 | 45*39*24 | 62*50*28 | 55*51*29 | 68*60*34 | 70*46*75 |
| Extra weight per meter of extra lift( kg) | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 7.3 | 9.7 | 14.1 | 19.4 | |
